Connector Views



Component Connector End Views

Heated Oxygen Sensor (HO2S) 1

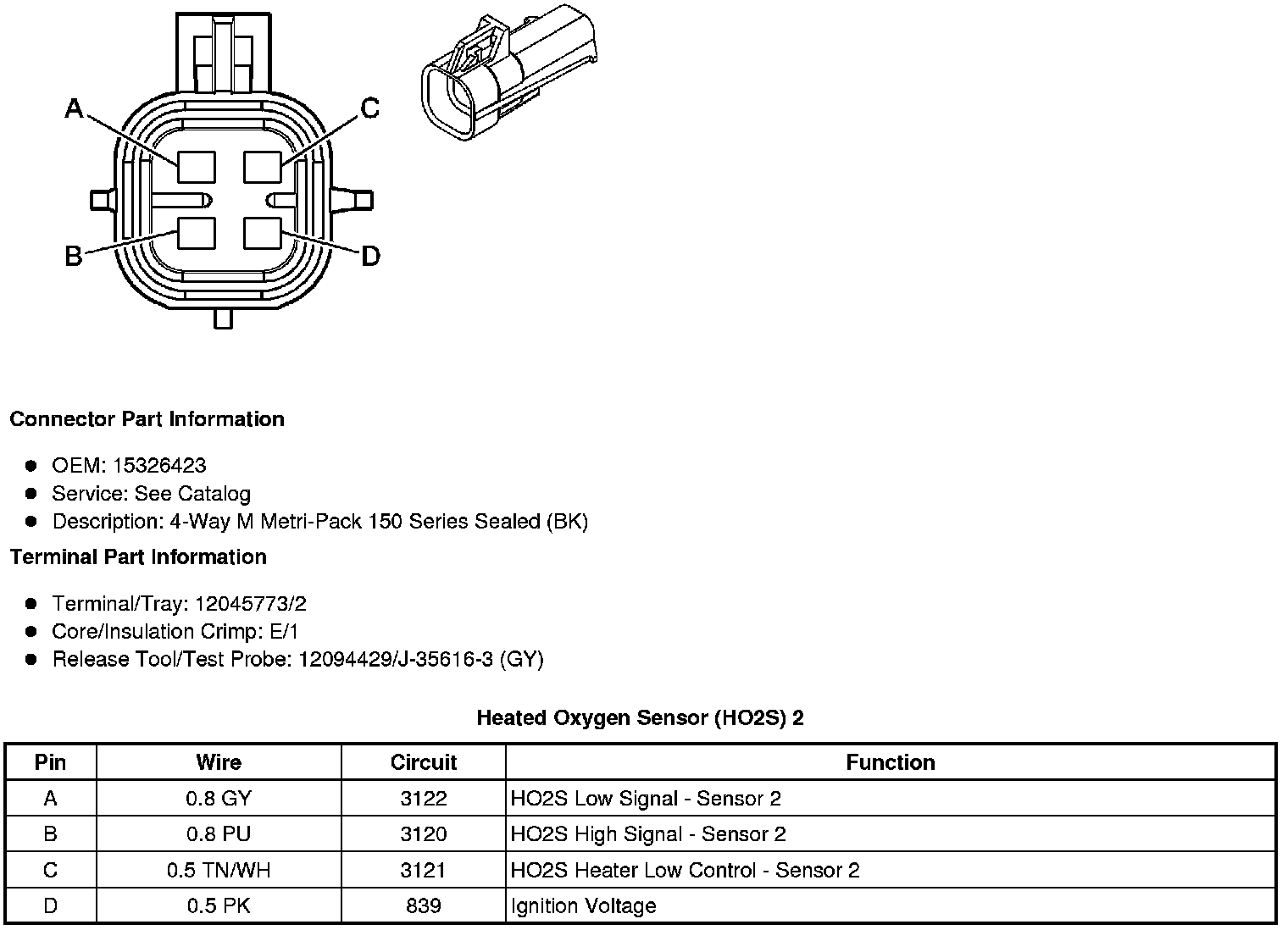

Heated Oxygen Sensor (HO2S) 2
