Chevrolet
>>
2008
>>
Uplander V6-3.9L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Master Connector List
Master Connector List

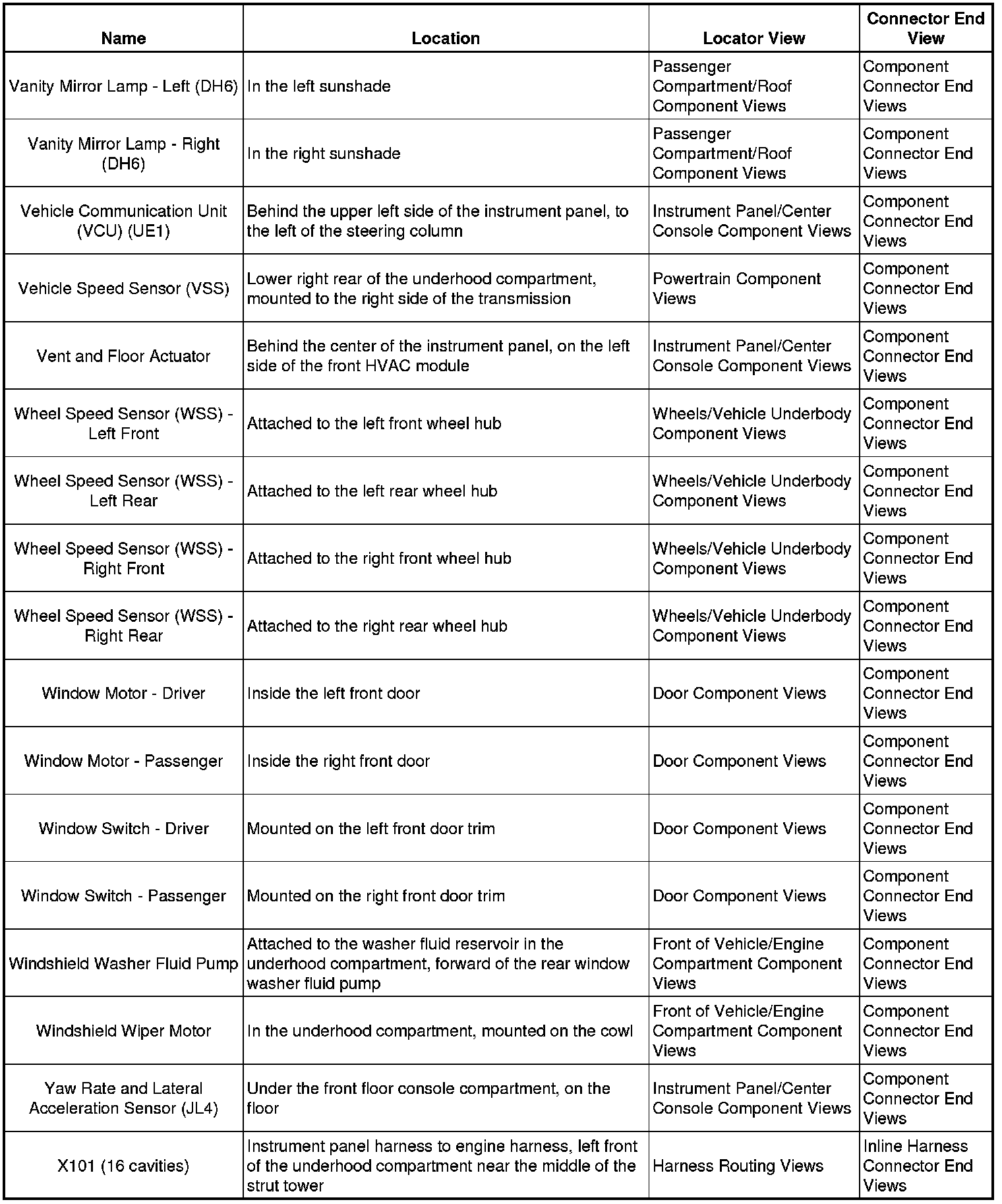

Va-X101:

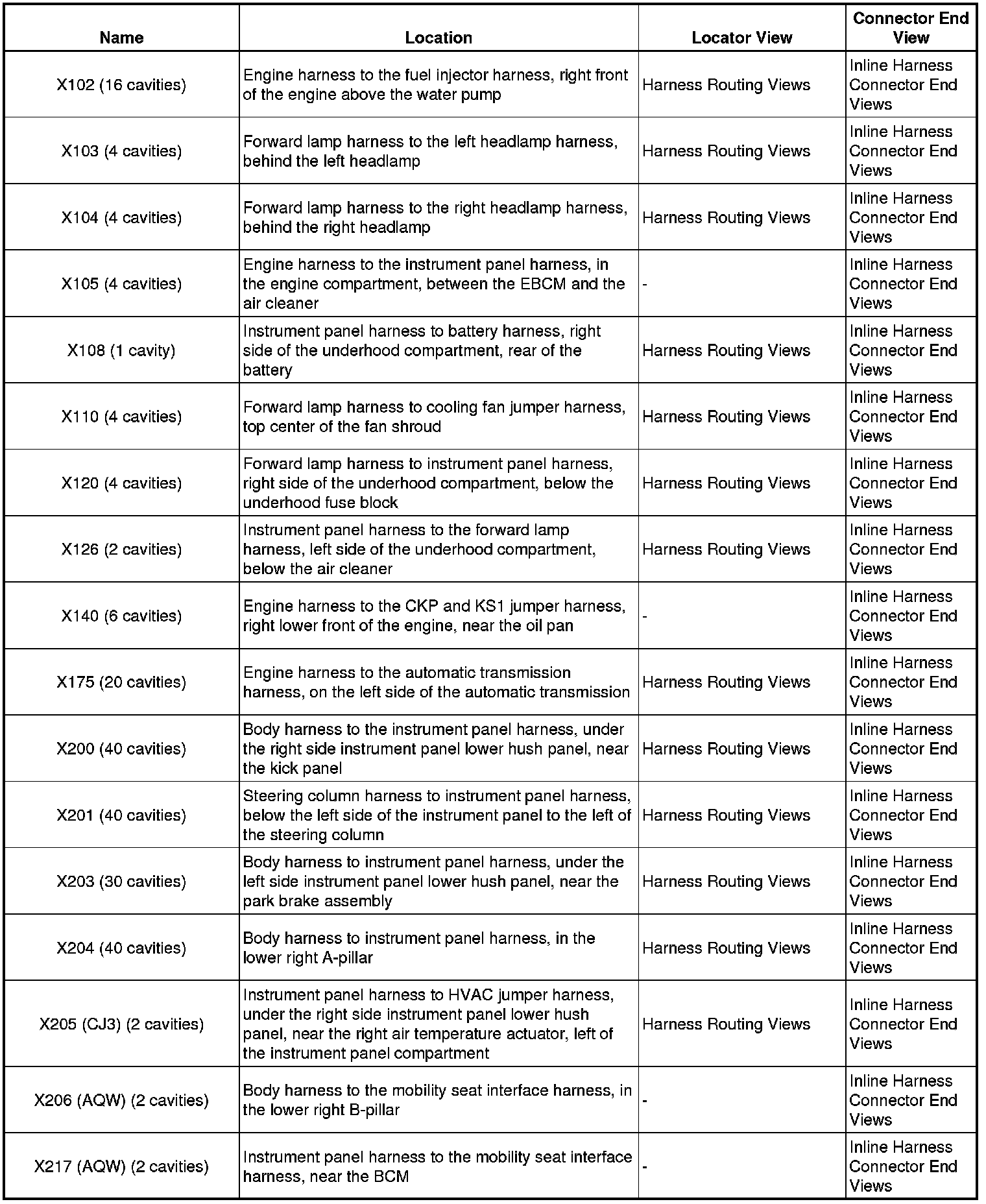

X102-X217:

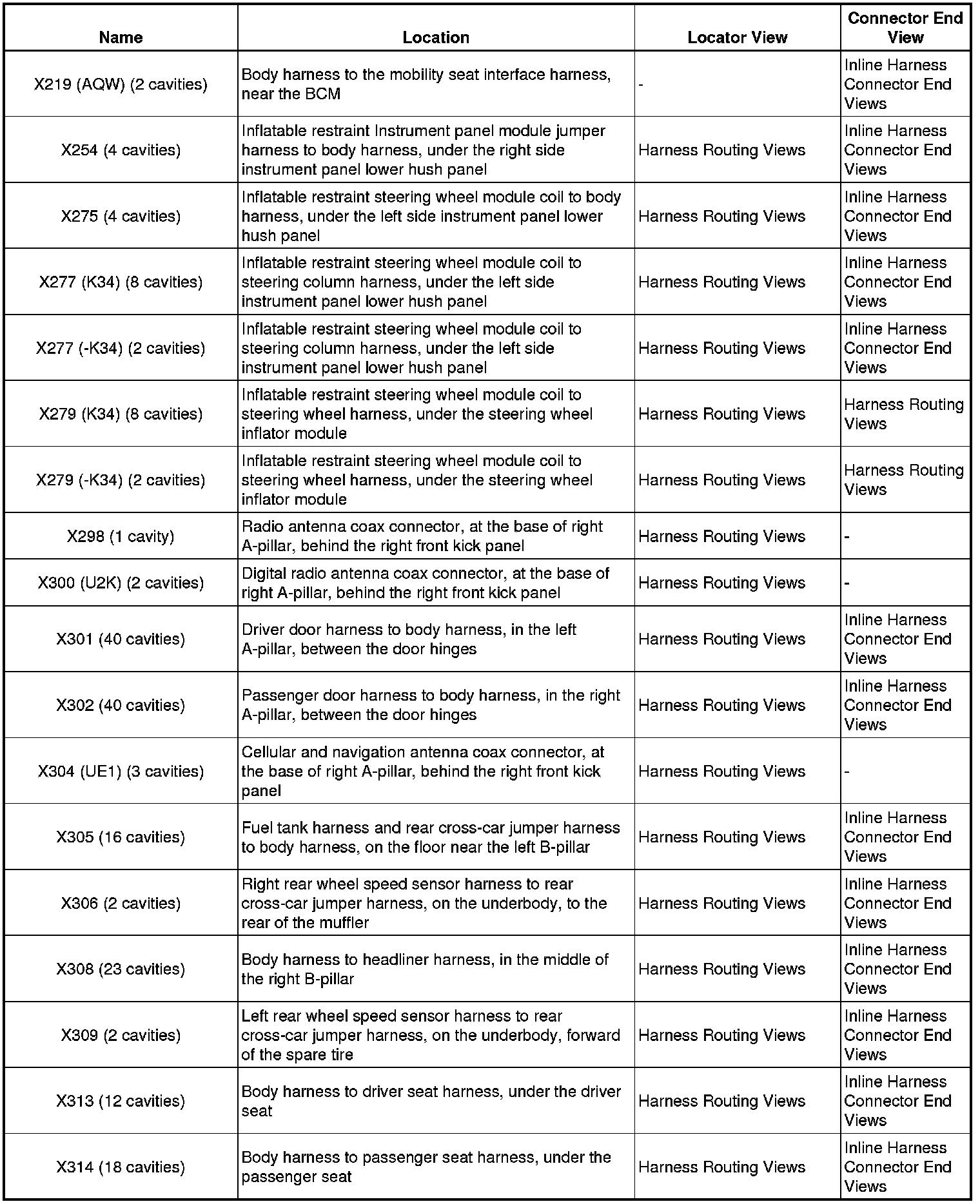

X219-X314:

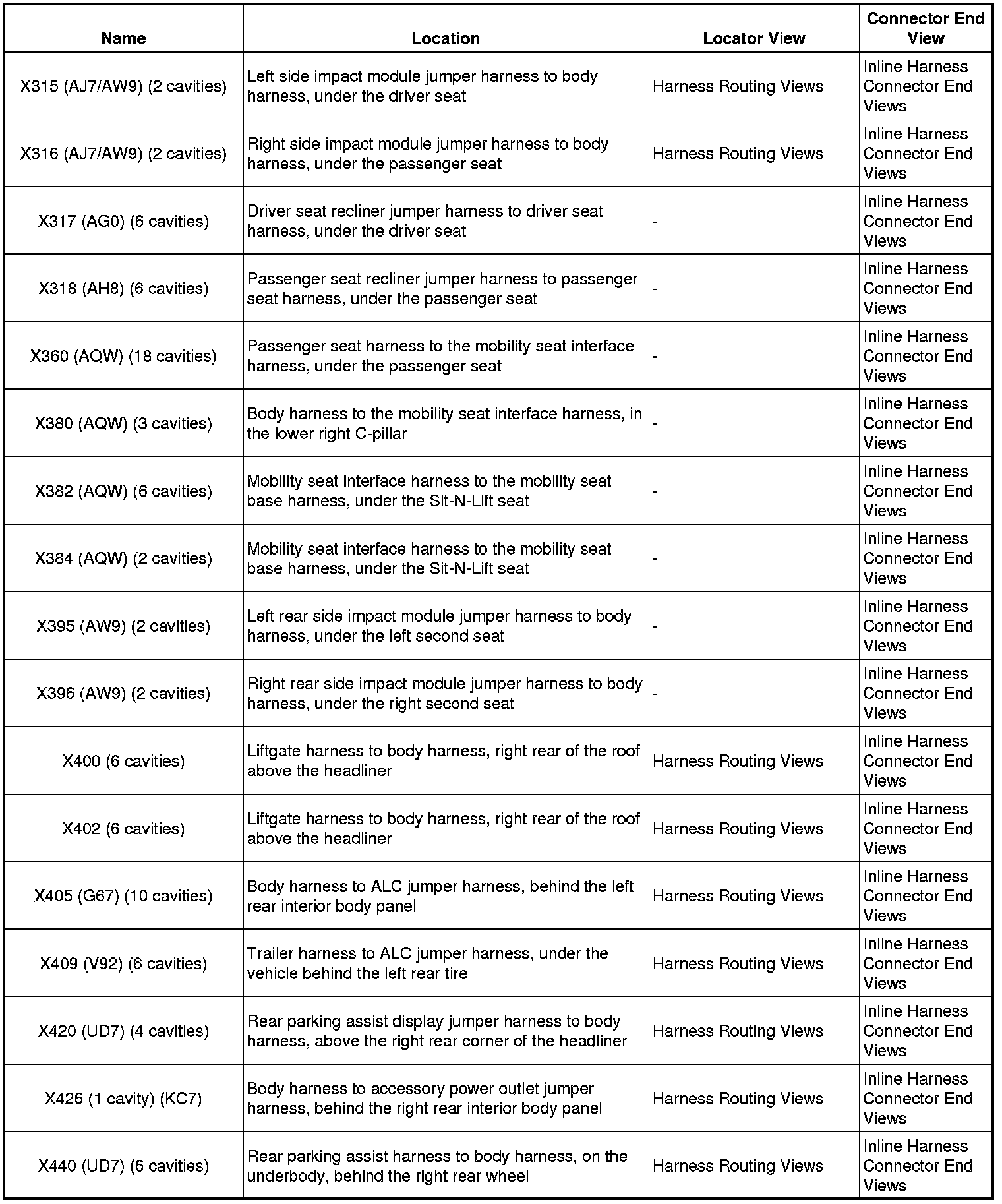

X315-X440:
