Left Sliding Door Module (RSDM)



Component Connector End Views

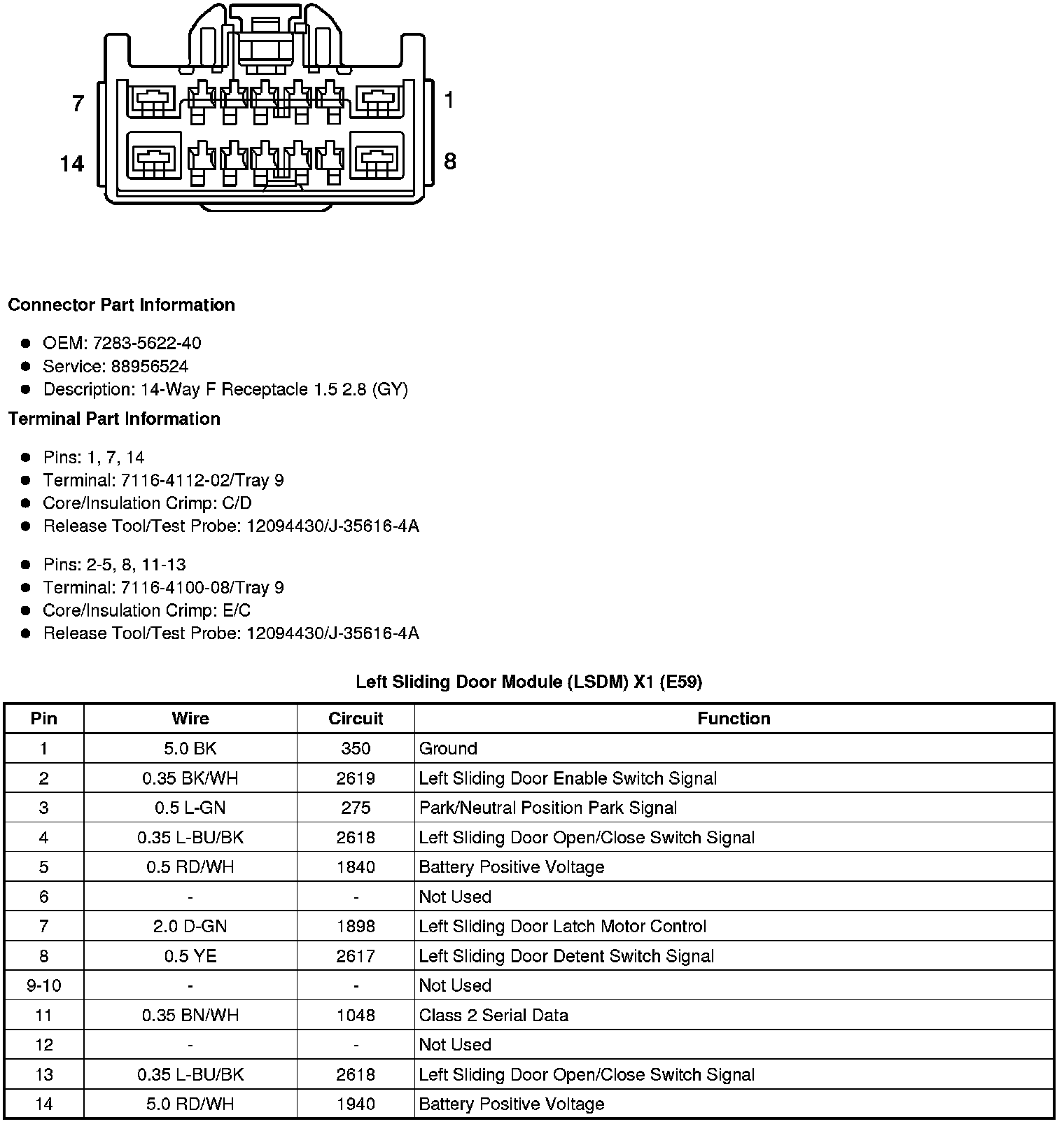

Left Sliding Door Module (LSDM) X1 (E59)

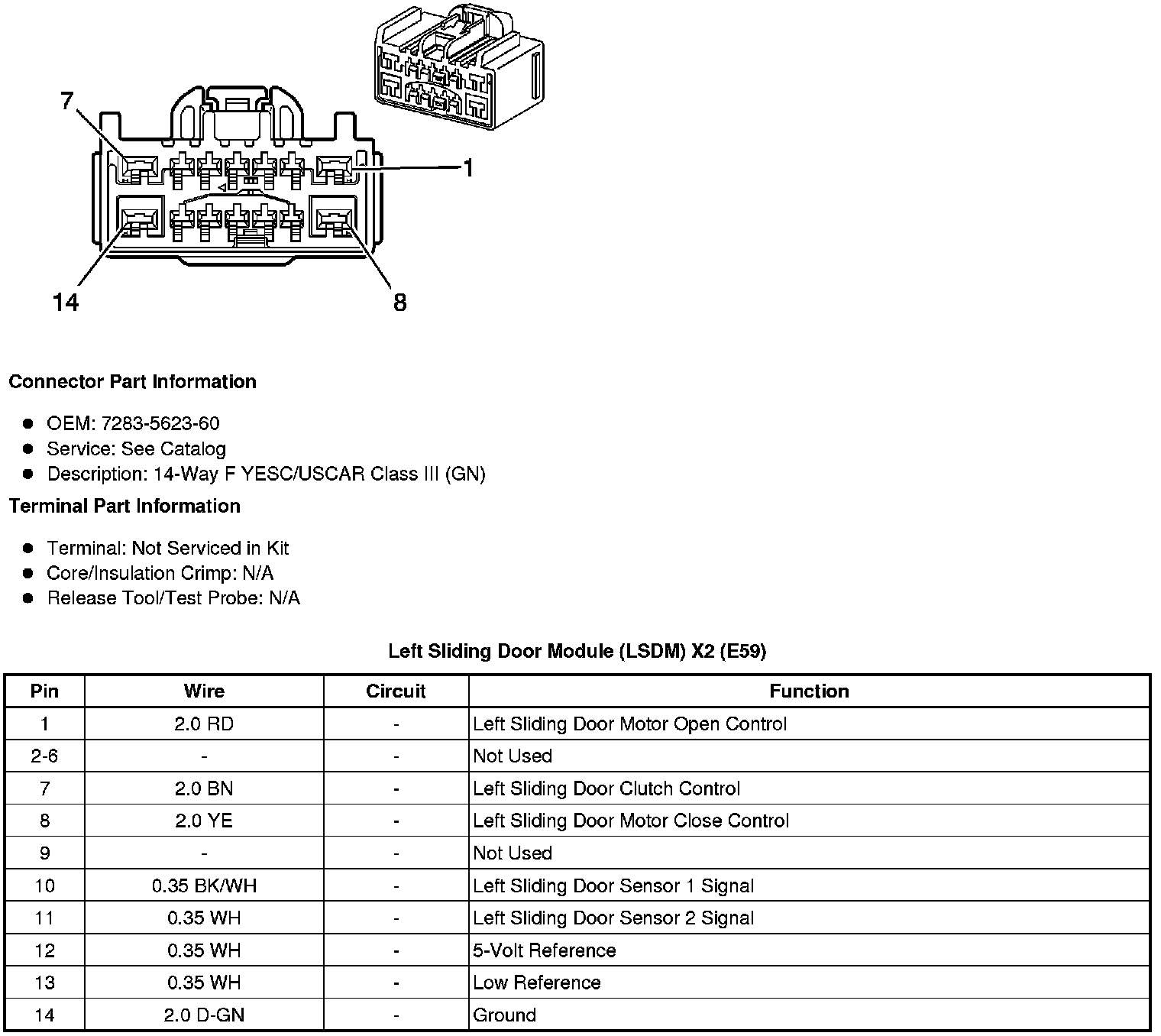

Left Sliding Door Module (LSDM) X2 (E59)
