Home >> Chevrolet >> 2008 >> Uplander V6-3.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connector End Views >> Heating and Air Conditioning >> Ambient Temperature Sensor / Switch HVAC

Ambient Temperature Sensor / Switch HVAC



Component Connector End Views

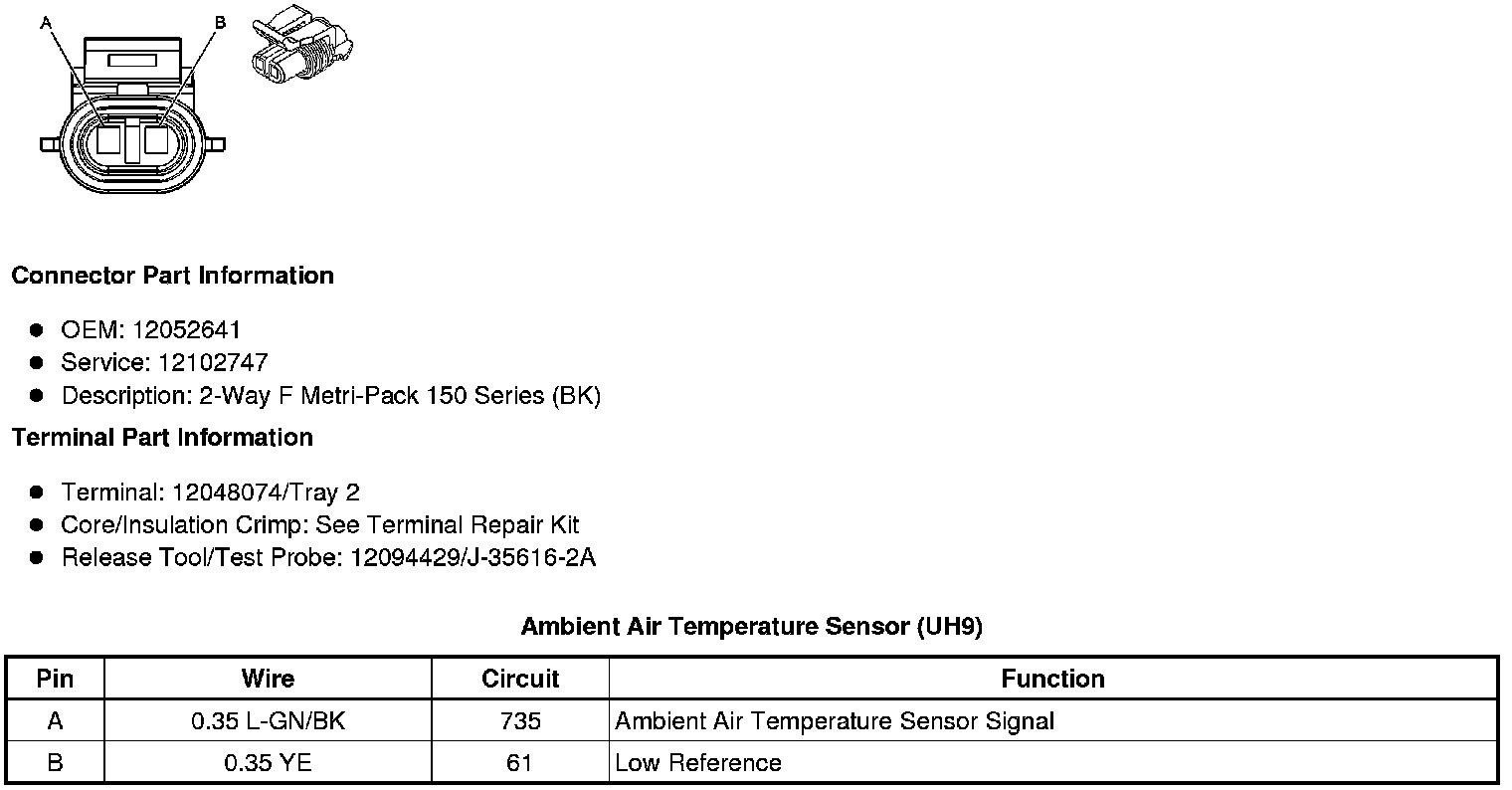

Ambient Air Temperature Sensor (UH9)
