Connector Views
Component Connector End Views

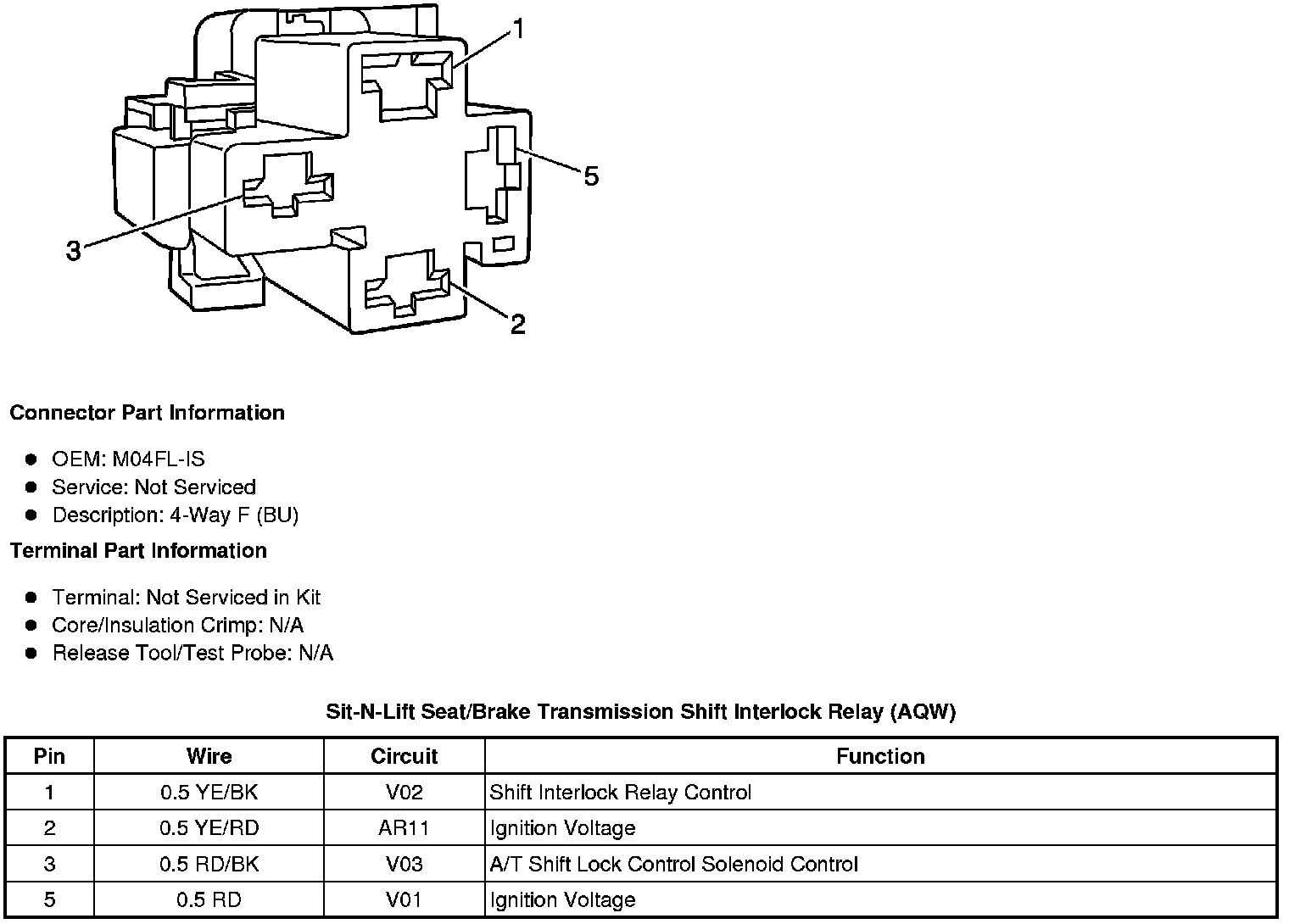

Sit-N-Lift Seat/Brake Transmission Shift Interlock Relay (AQW)

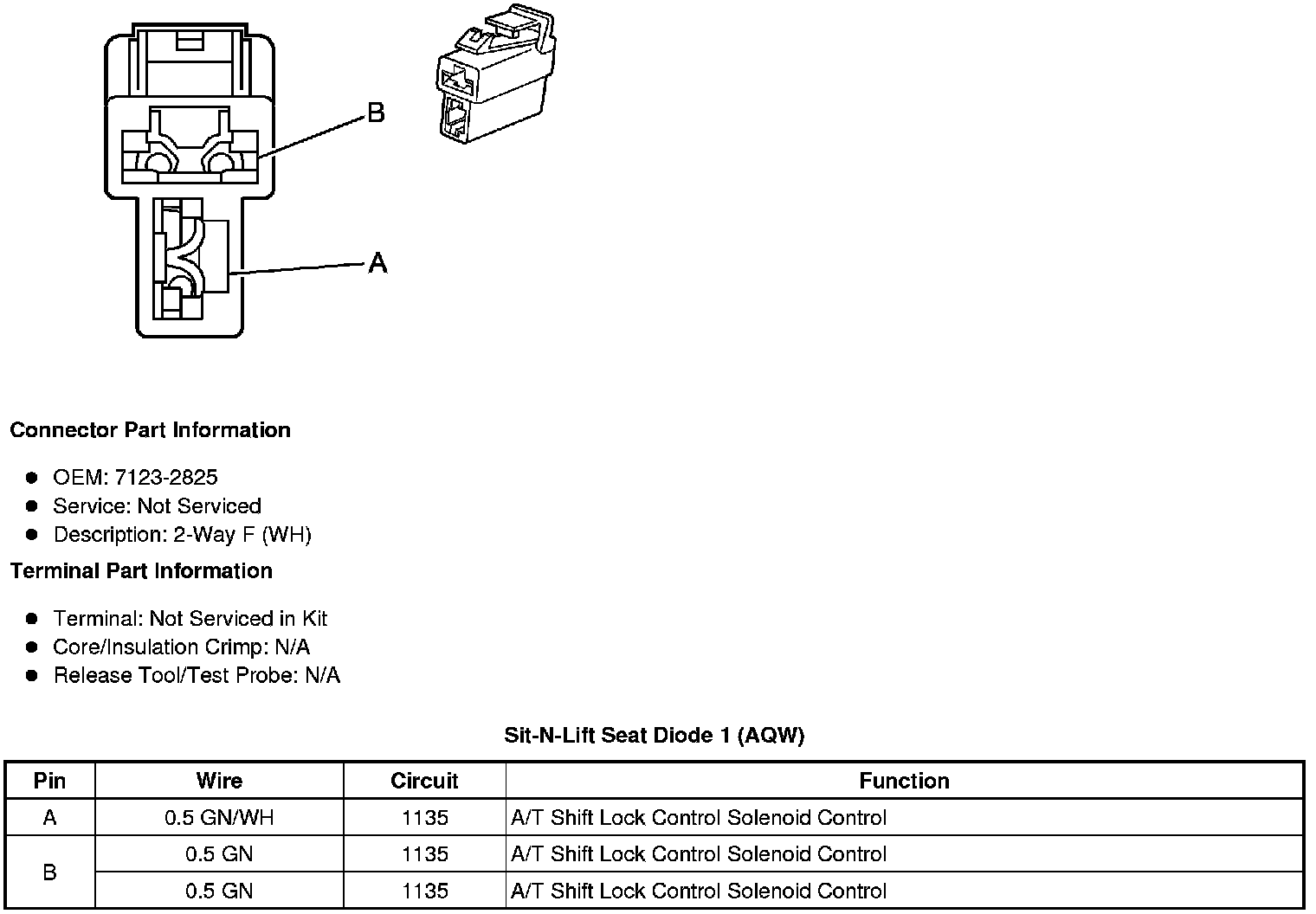

Sit-N-Lift Seat Diode 1 (AQW)

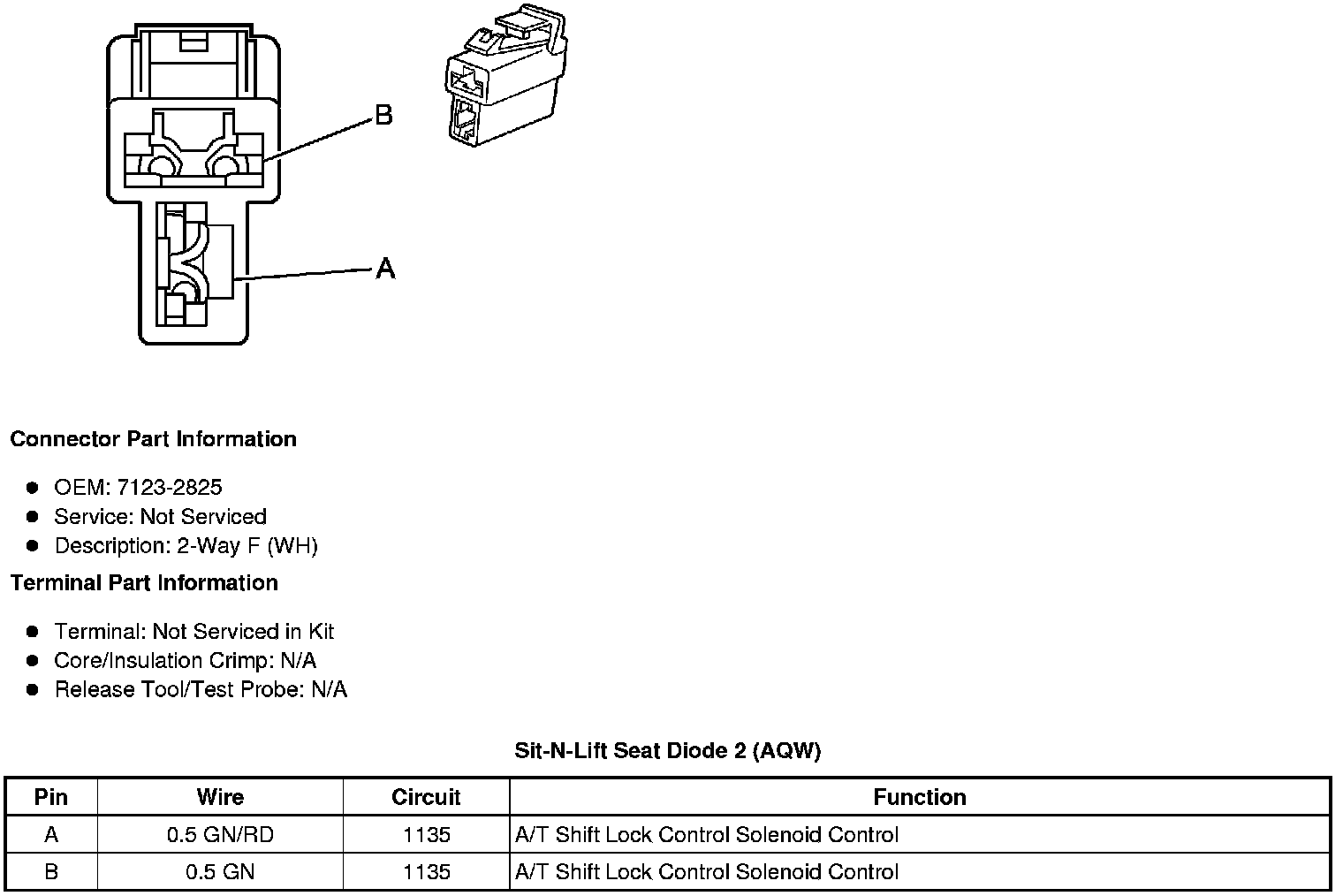

Sit-N-Lift Seat Diode 2 (AQW)

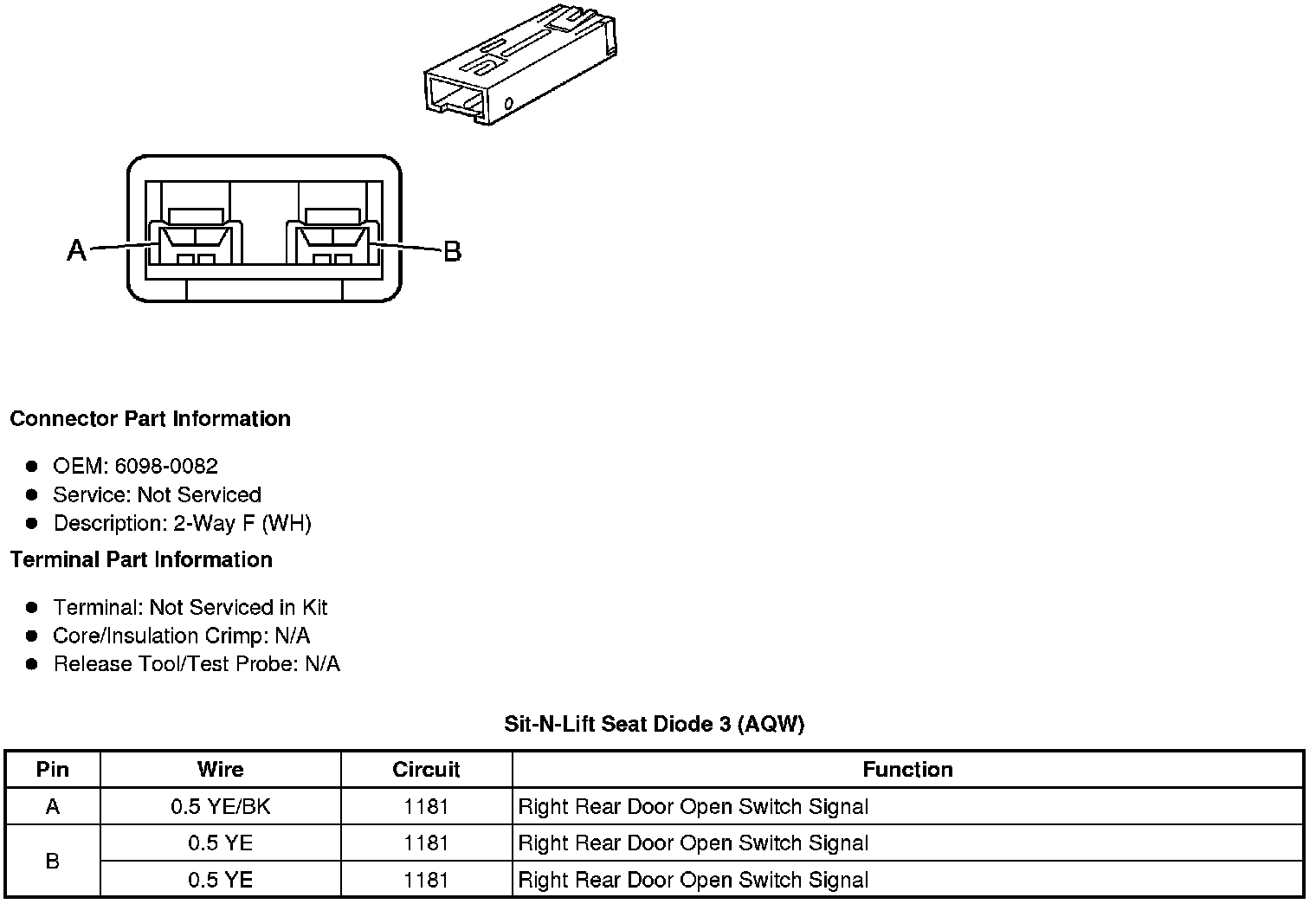

Sit-N-Lift Seat Diode 3 (AQW)

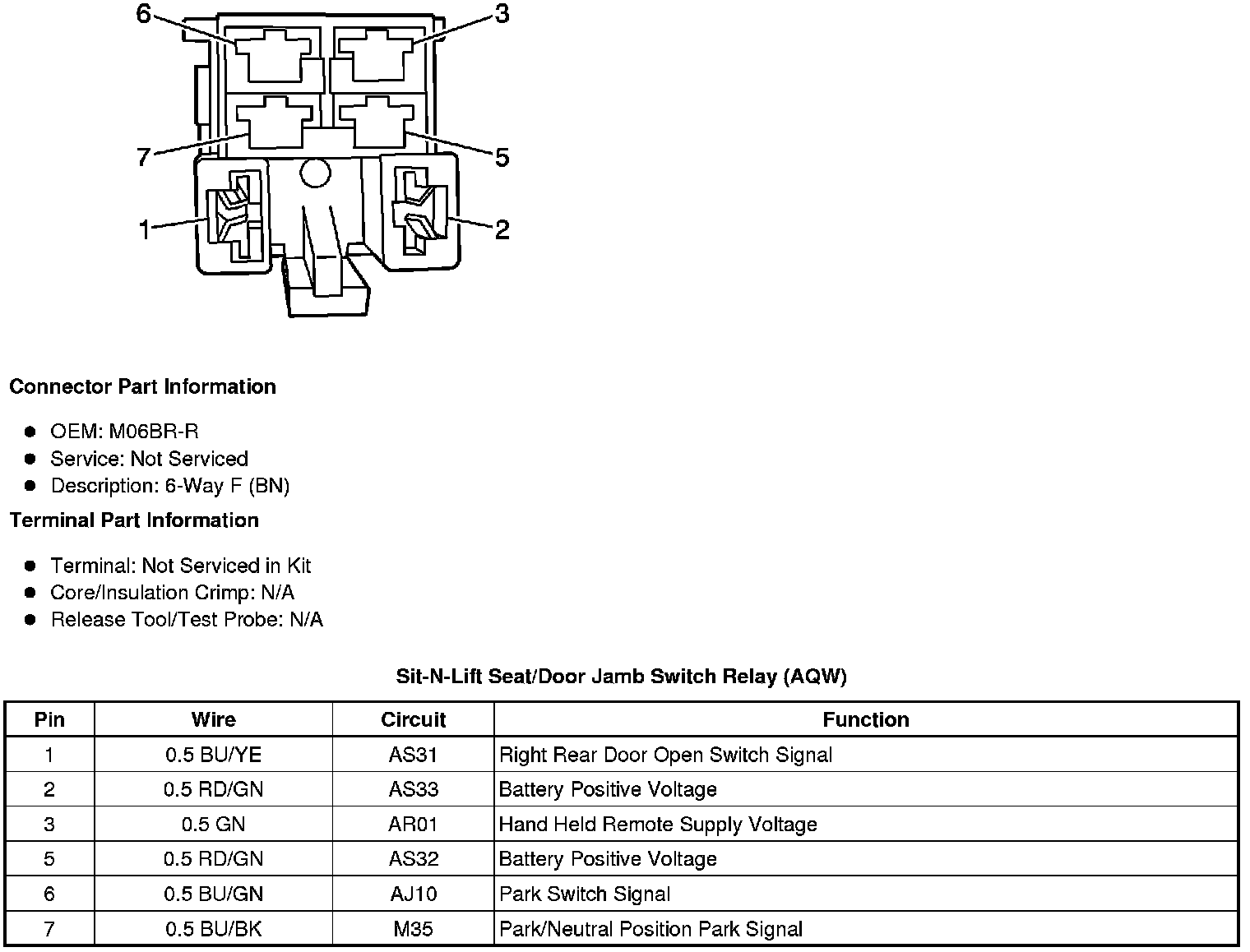

Sit-N-Lift Seat/Door Jamb Switch Relay (AQW)

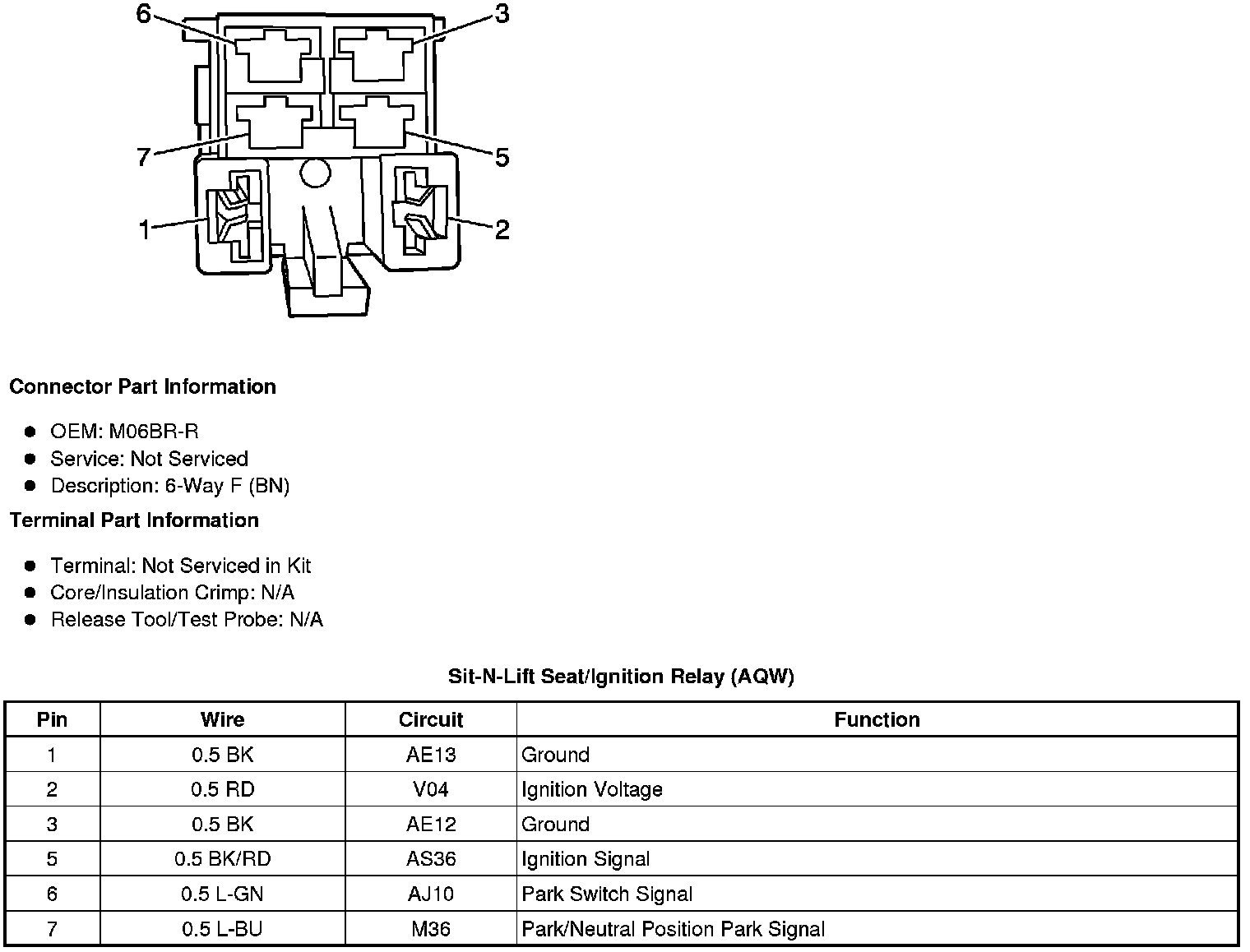

Sit-N-Lift Seat/Ignition Relay (AQW)

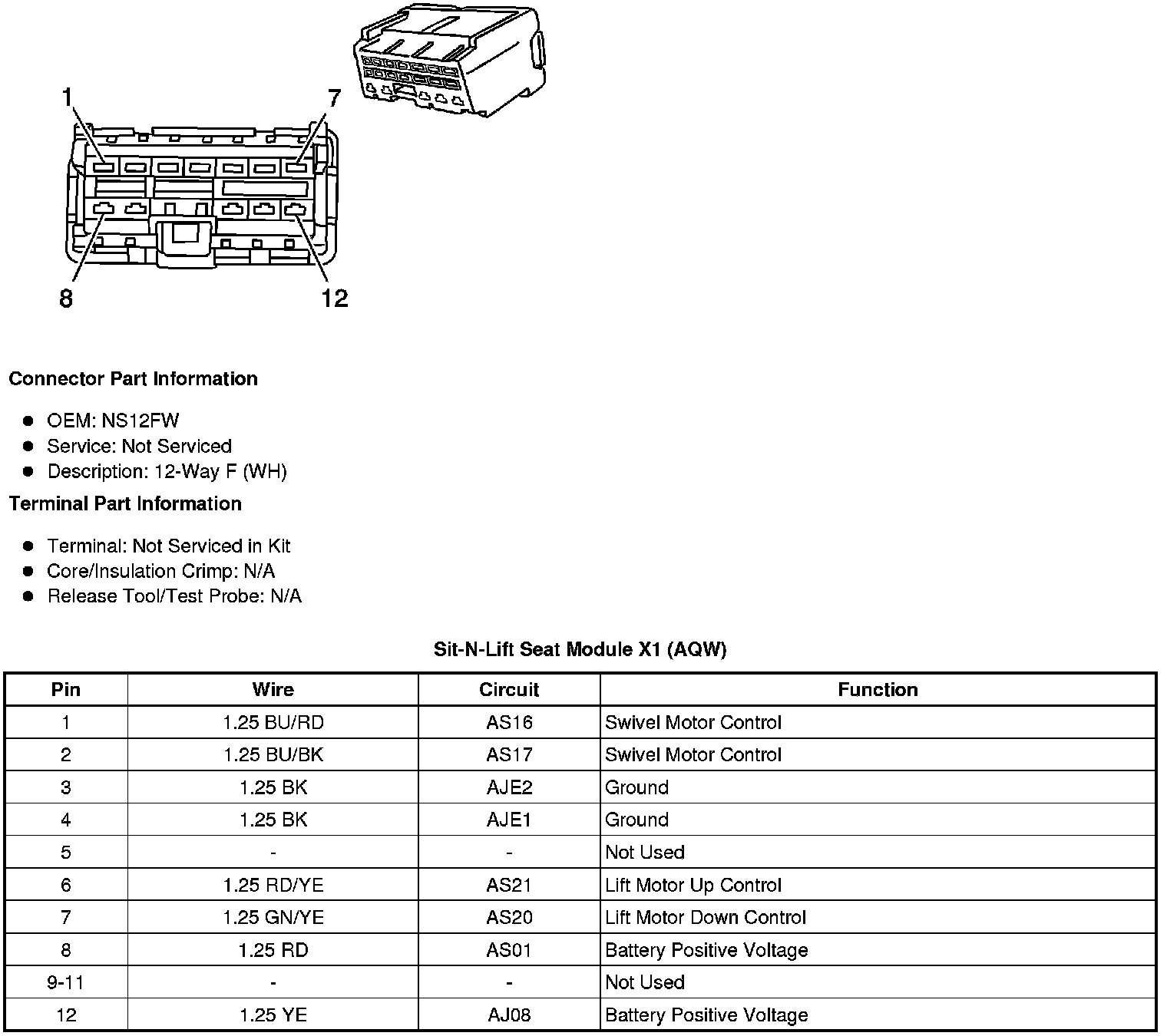

Sit-N-Lift Seat Module X1 (AQW)

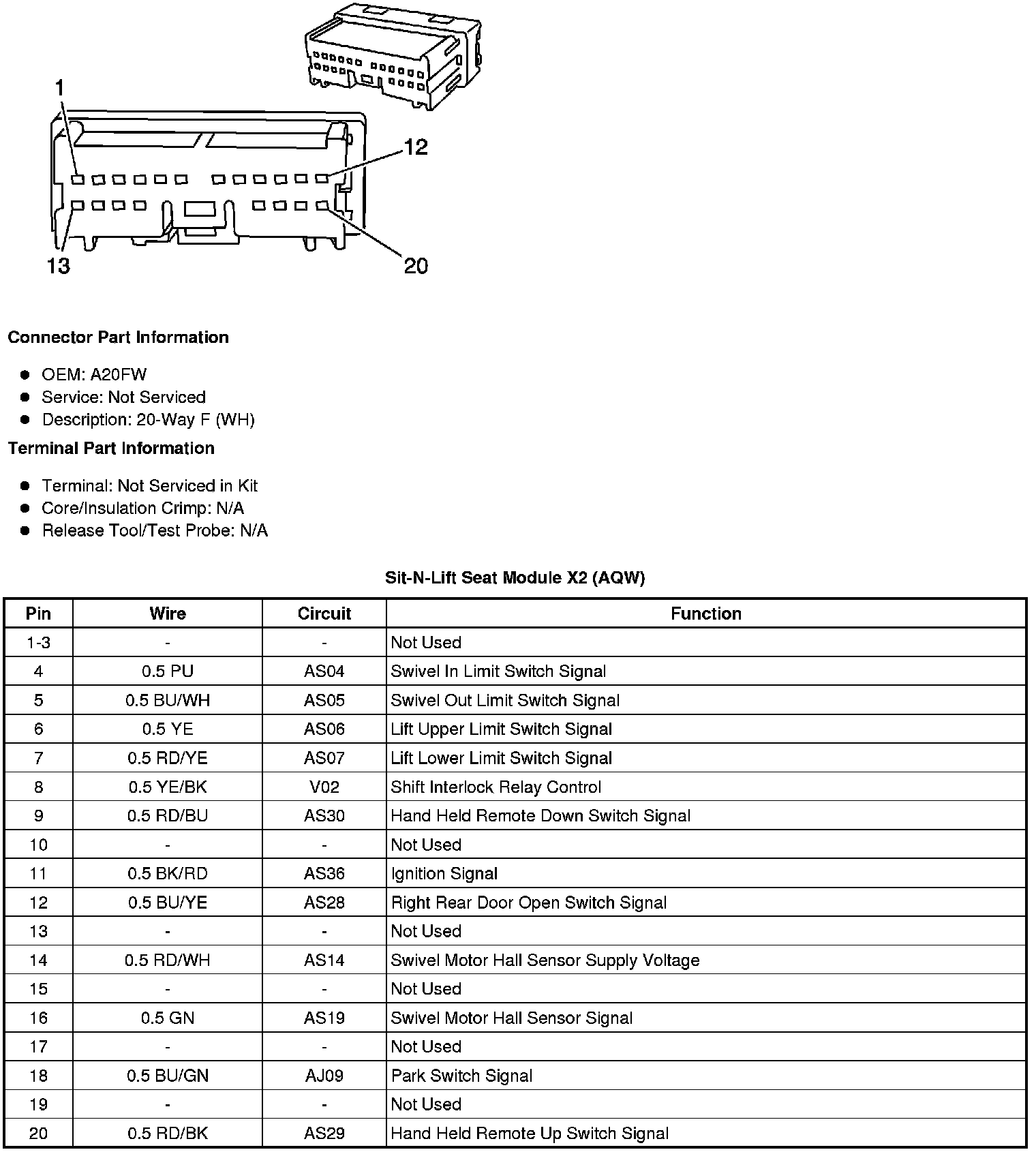

Sit-N-Lift Seat Module X2 (AQW)

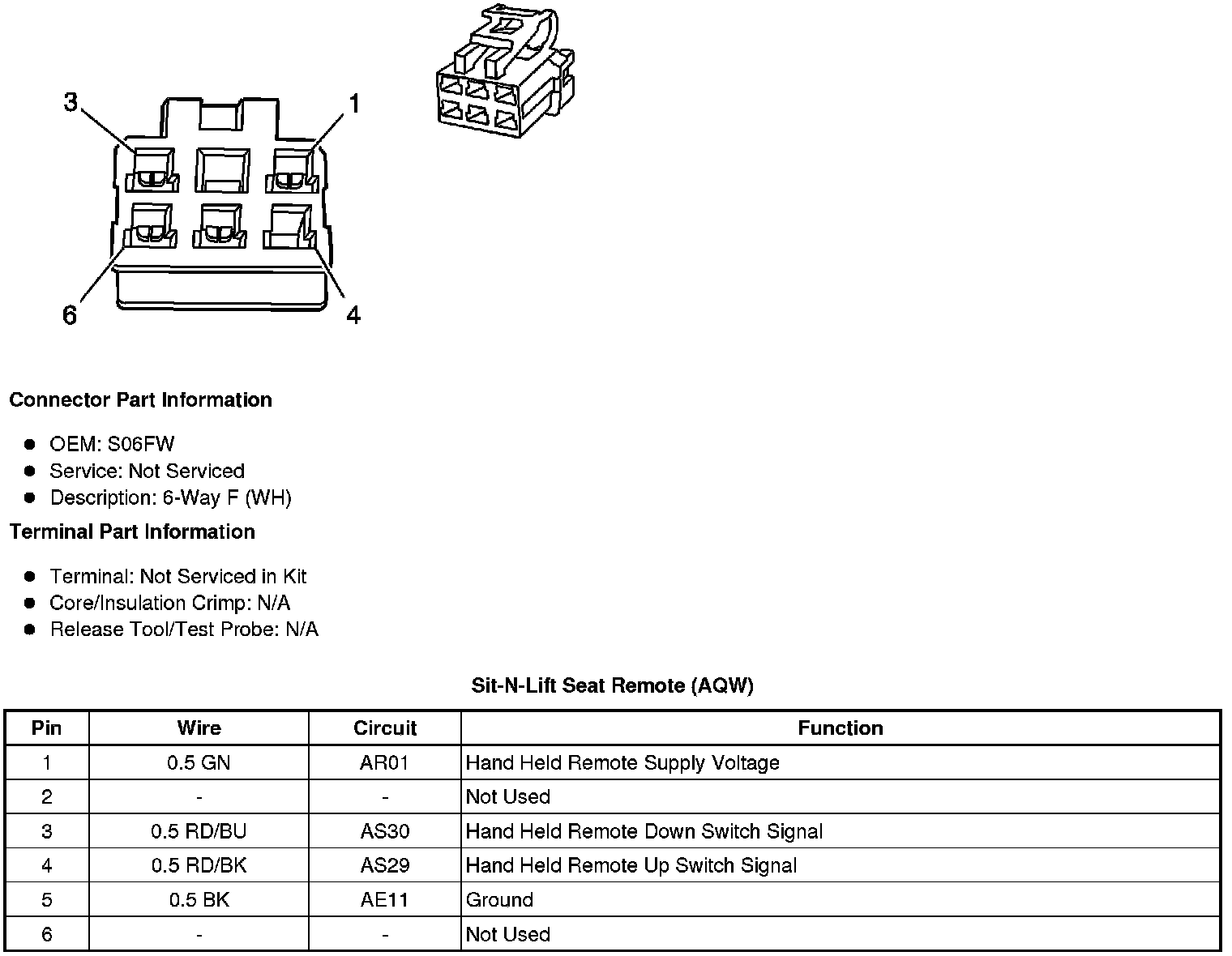

Sit-N-Lift Seat Remote (AQW)
