Connector Views
Connector Views
Component Connector End Views

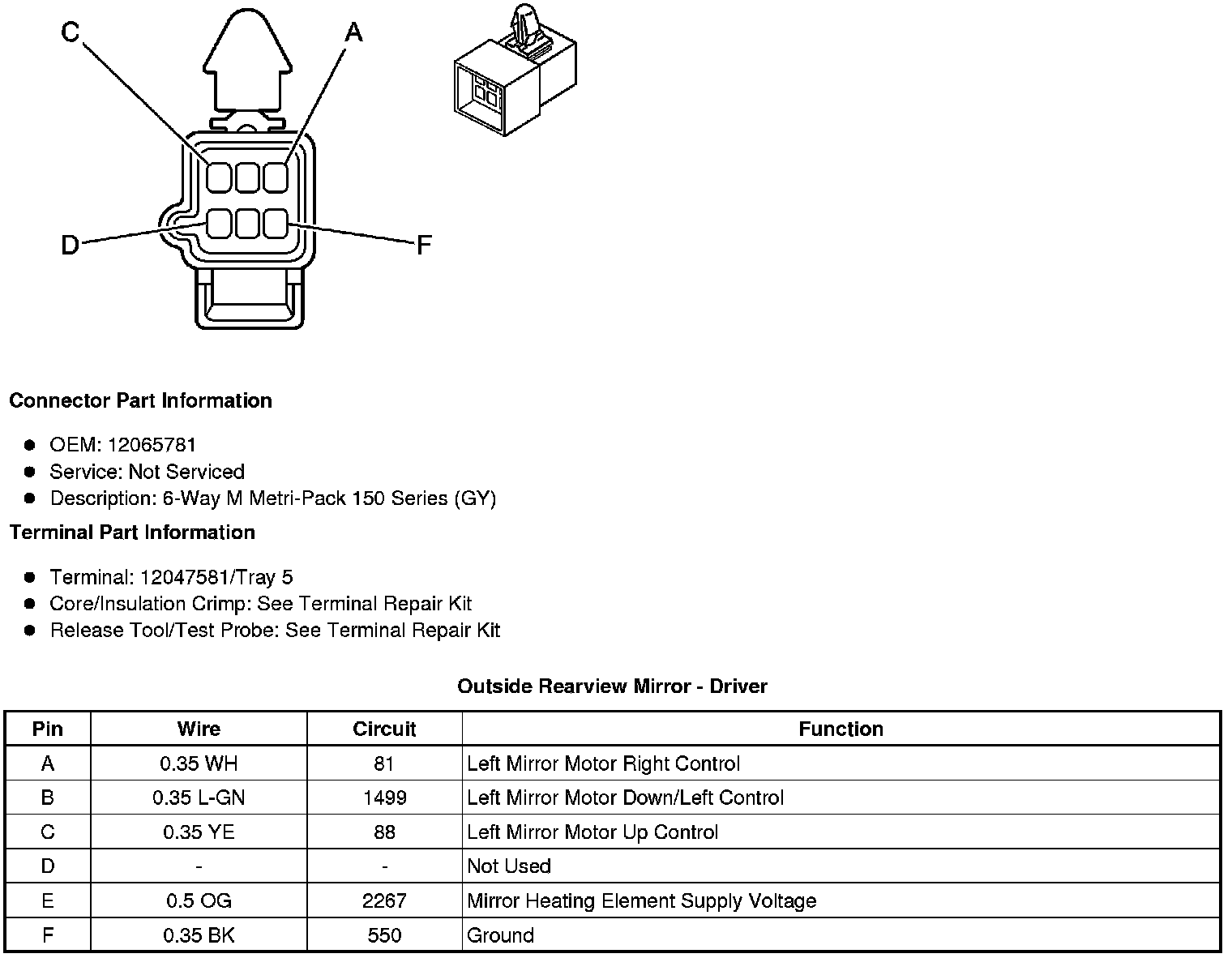

Outside Rearview Mirror - Driver

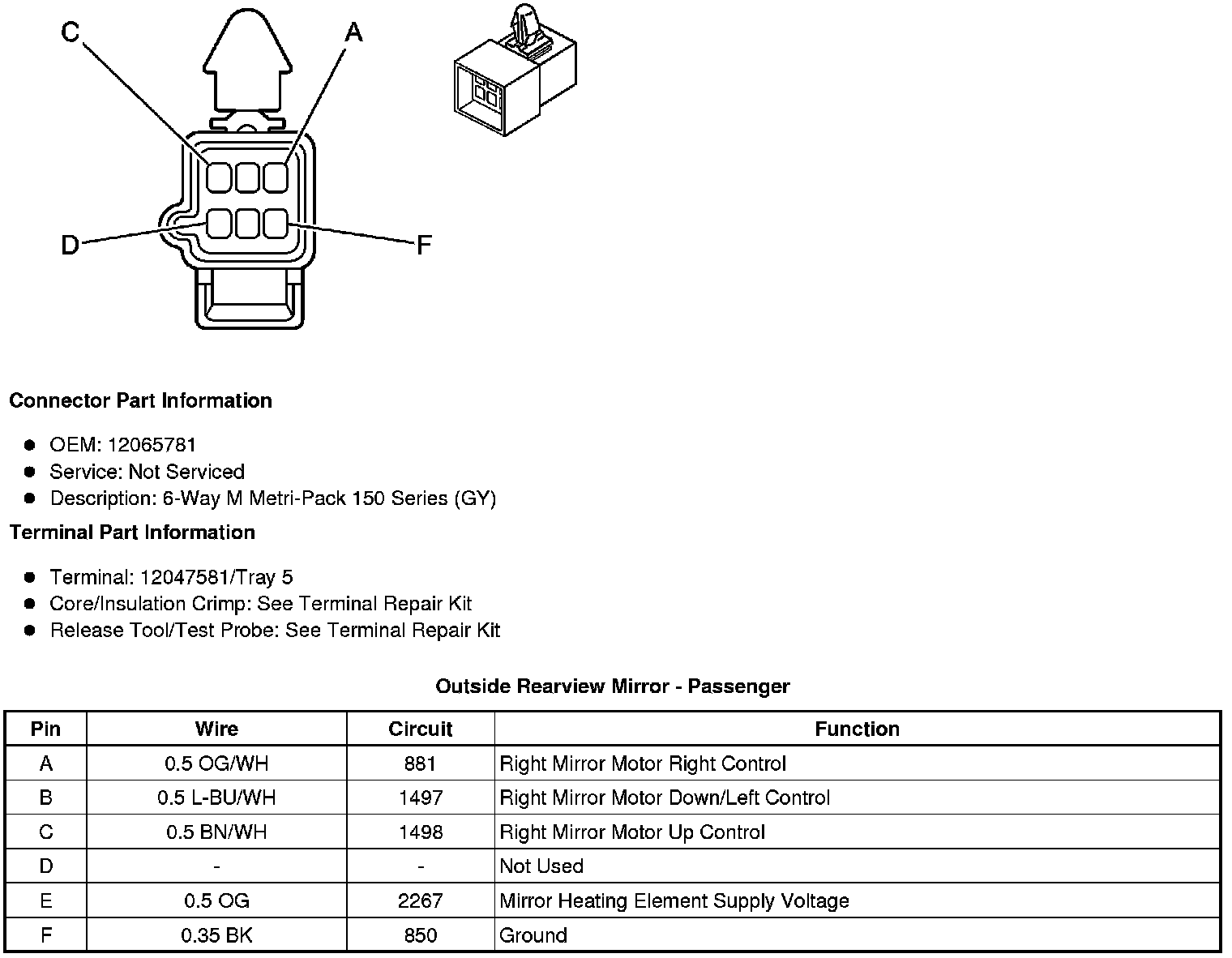

Outside Rearview Mirror - Passenger
