I/P Fuse Block



Electrical Center Identification Views

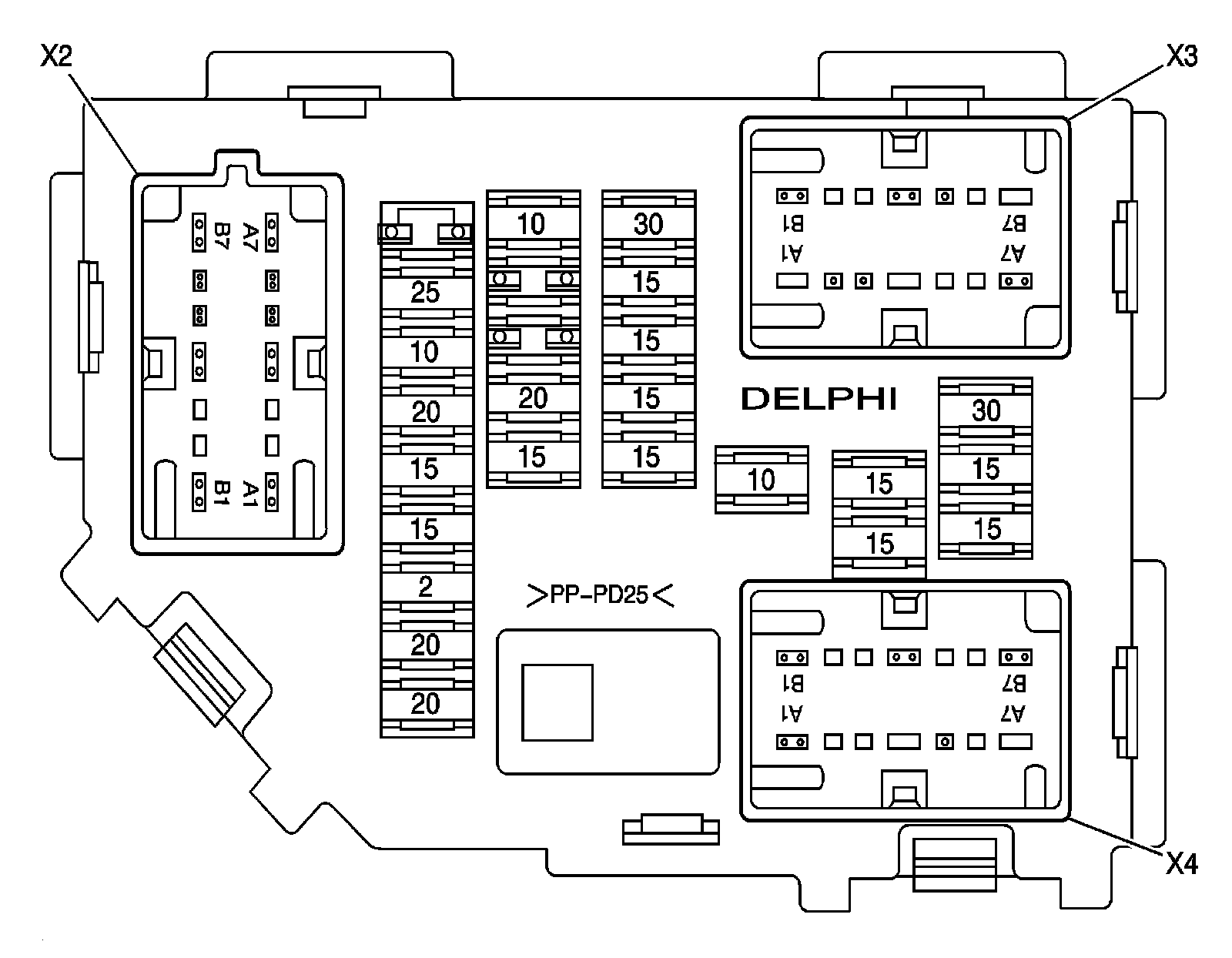

Fuse Block - I/P, Top View

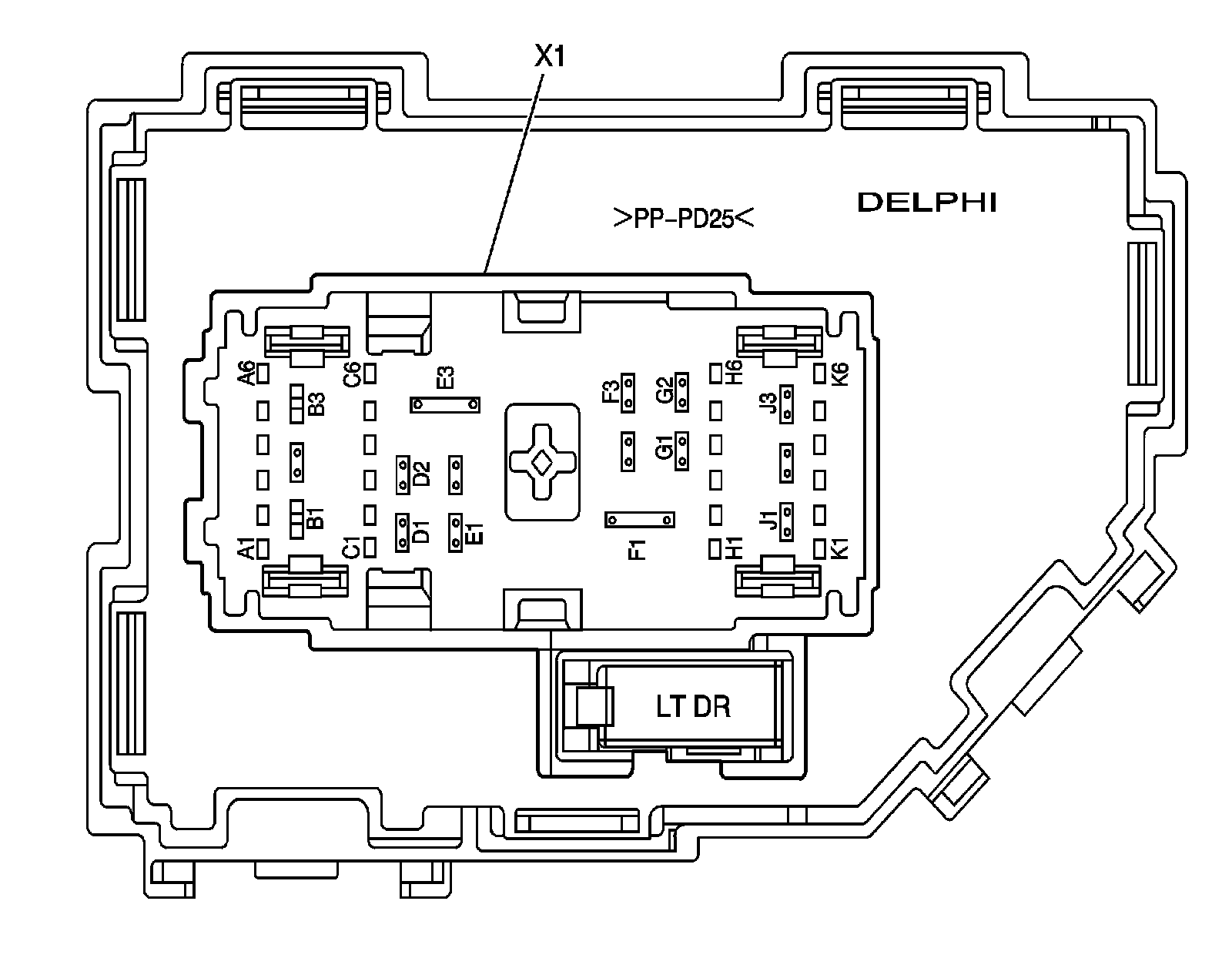

Fuse Block - I/P, Bottom View

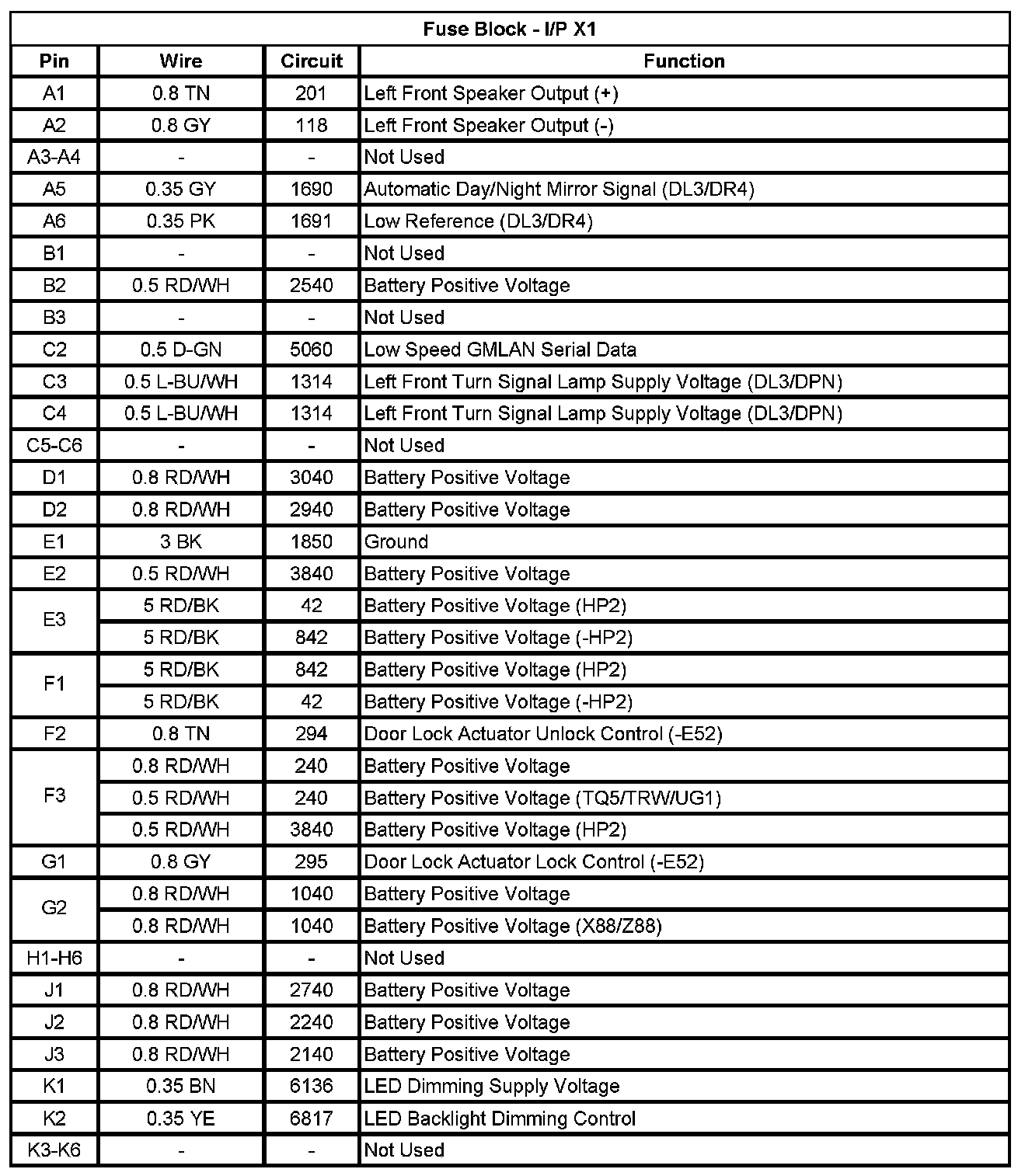

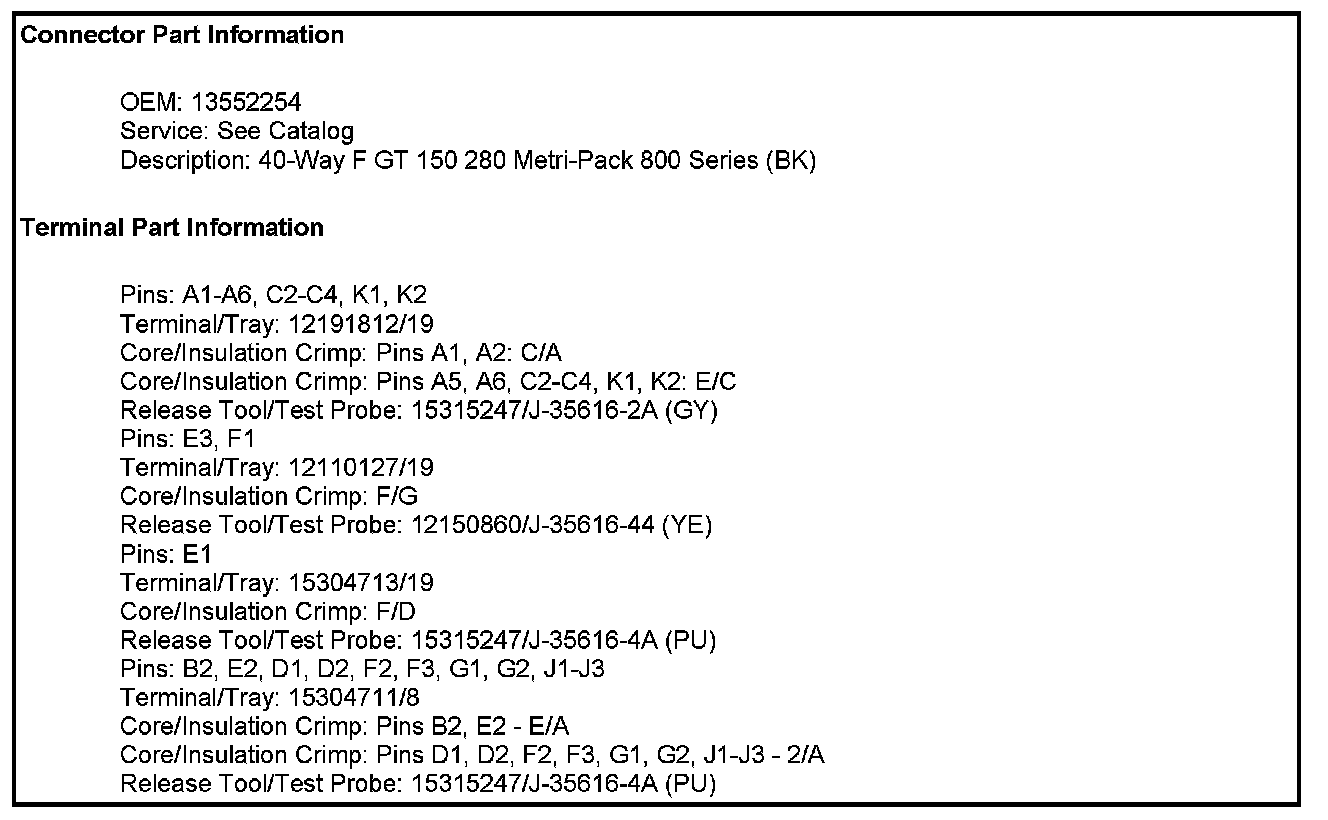

Fuse Block - I/P X1














Fuse Block - I/P X2














Fuse Block - I/P X3














Fuse Block - I/P X4
