Combination Switch



Component Connector End Views - Continued

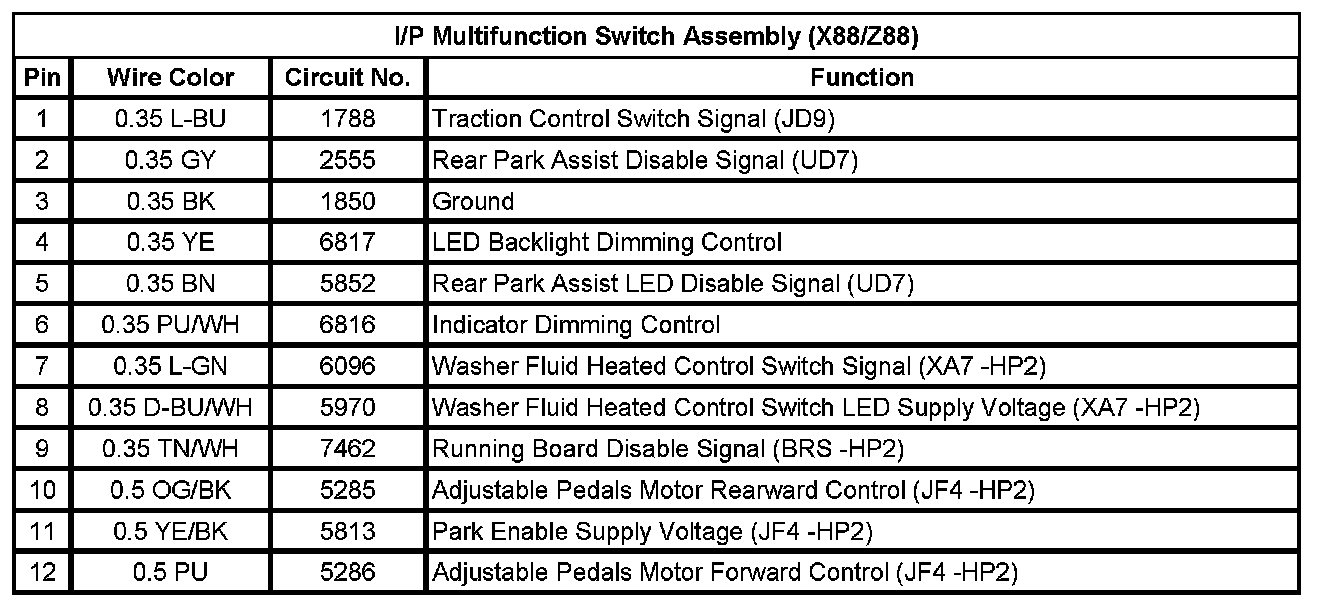

I/P Multifunction Switch Assembly (X88/Z88)

Transfer Case Shift Control Switch:














I/P Multifunction Switch Assembly (Z75)

Transfer Case Shift Control Switch:
