Amplifier, Sound System



Component Connector End Views

Audio Amplifier X1 (UQA -Y91)














Audio Amplifier X1 (UQA +Y91)














Audio Amplifier X1 (UQS)














Audio Amplifier X2 (UQA -Y91)

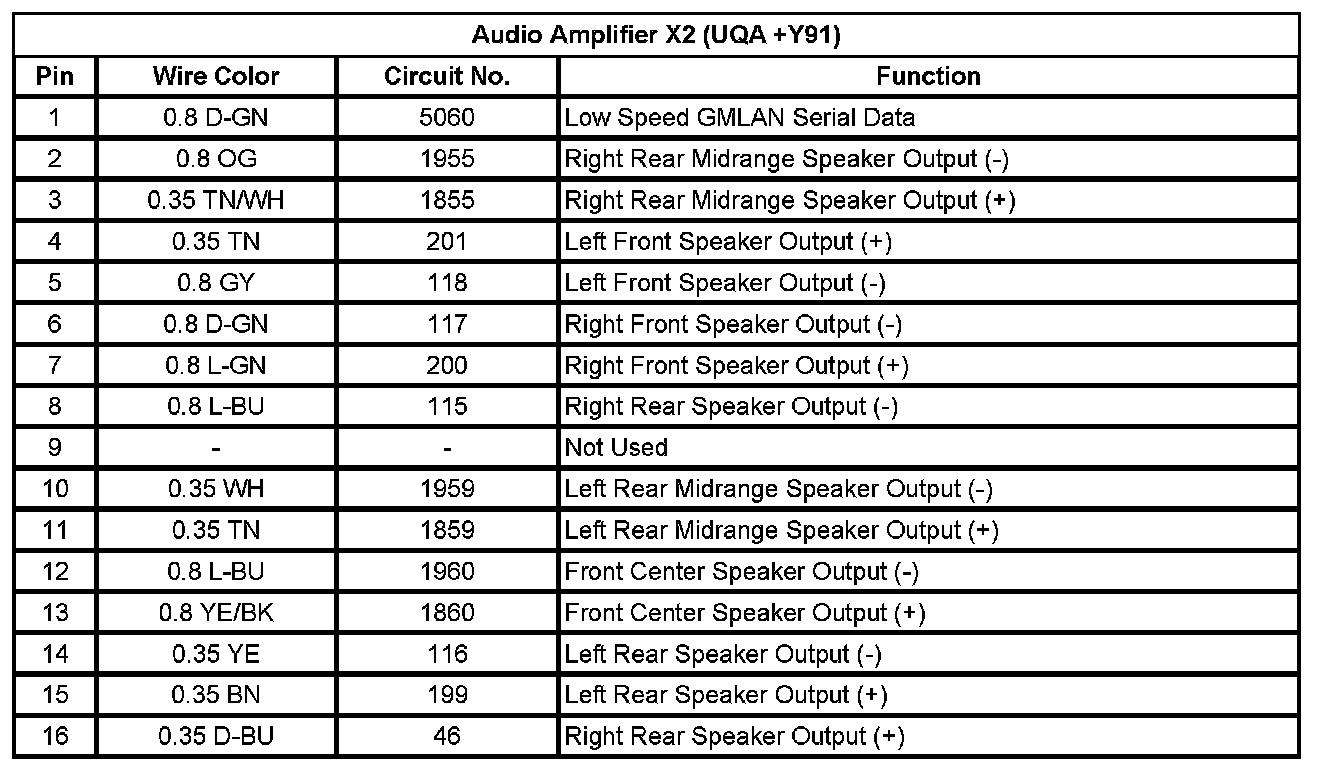

Audio Amplifier X2 (UQA +Y91)

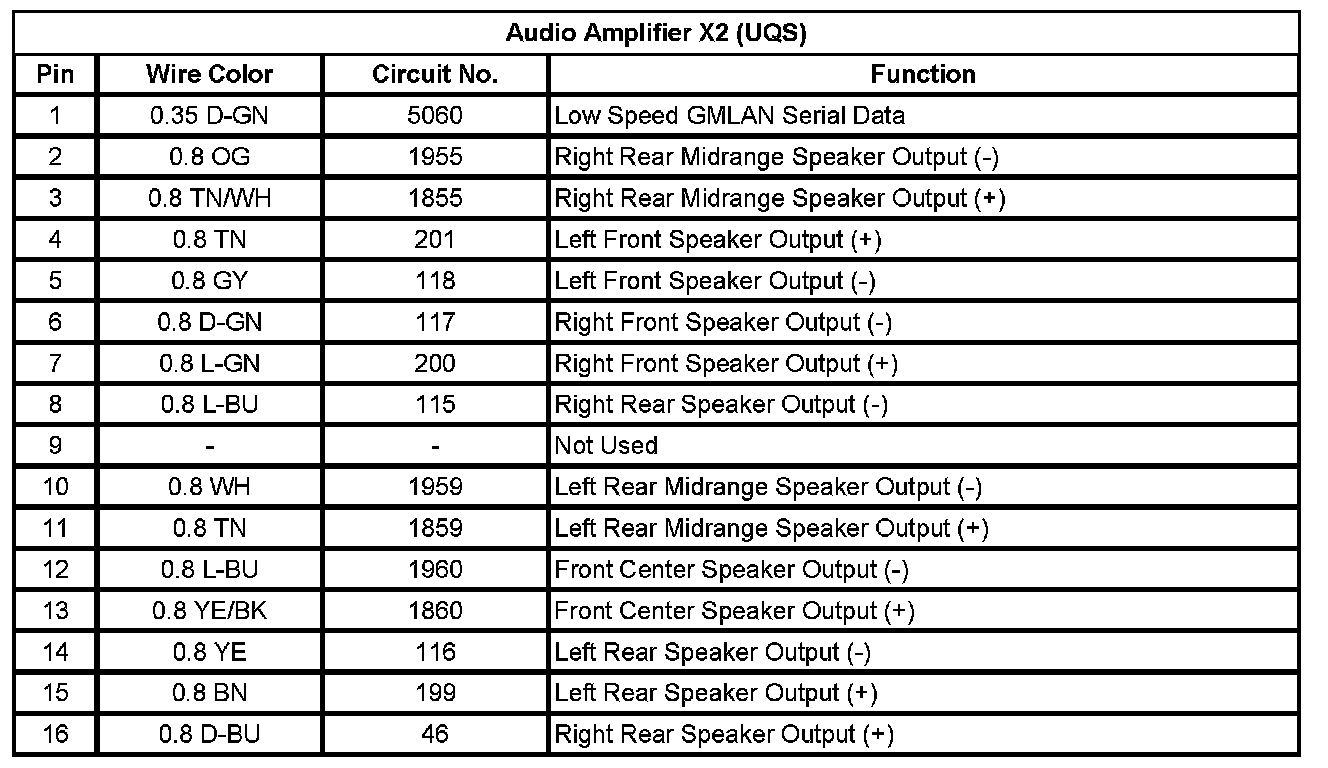

Audio Amplifier X2 (UQS)














Audio Amplifier X3 (UQA -Y91)














Audio Amplifier X3 (UQA +Y91)














Audio Amplifier X3 (UQS)














Audio Amplifier X4 (UQS)
