Control Assembly: Diagrams



Component Connector End Views

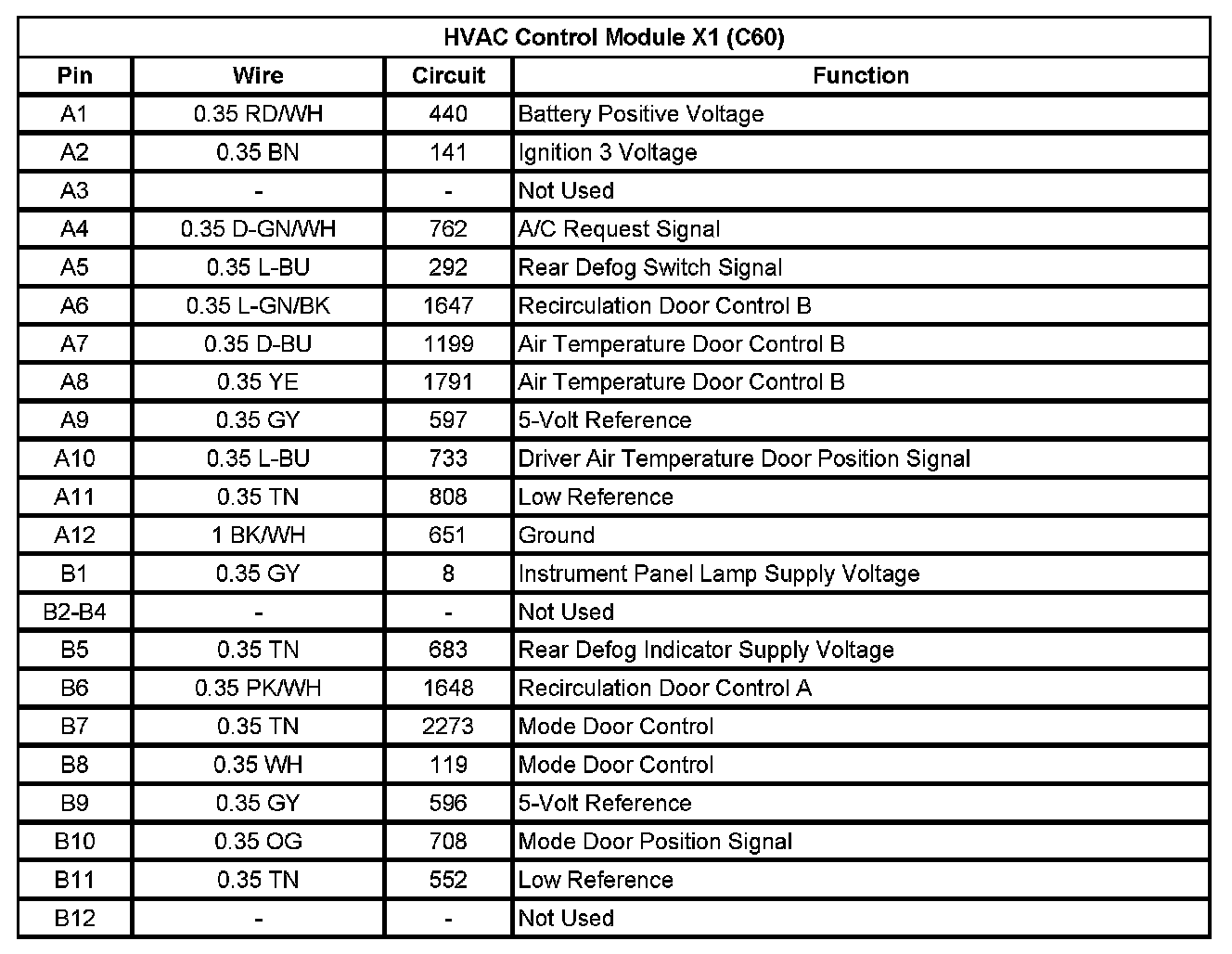

HVAC Control Module X1 (C60)

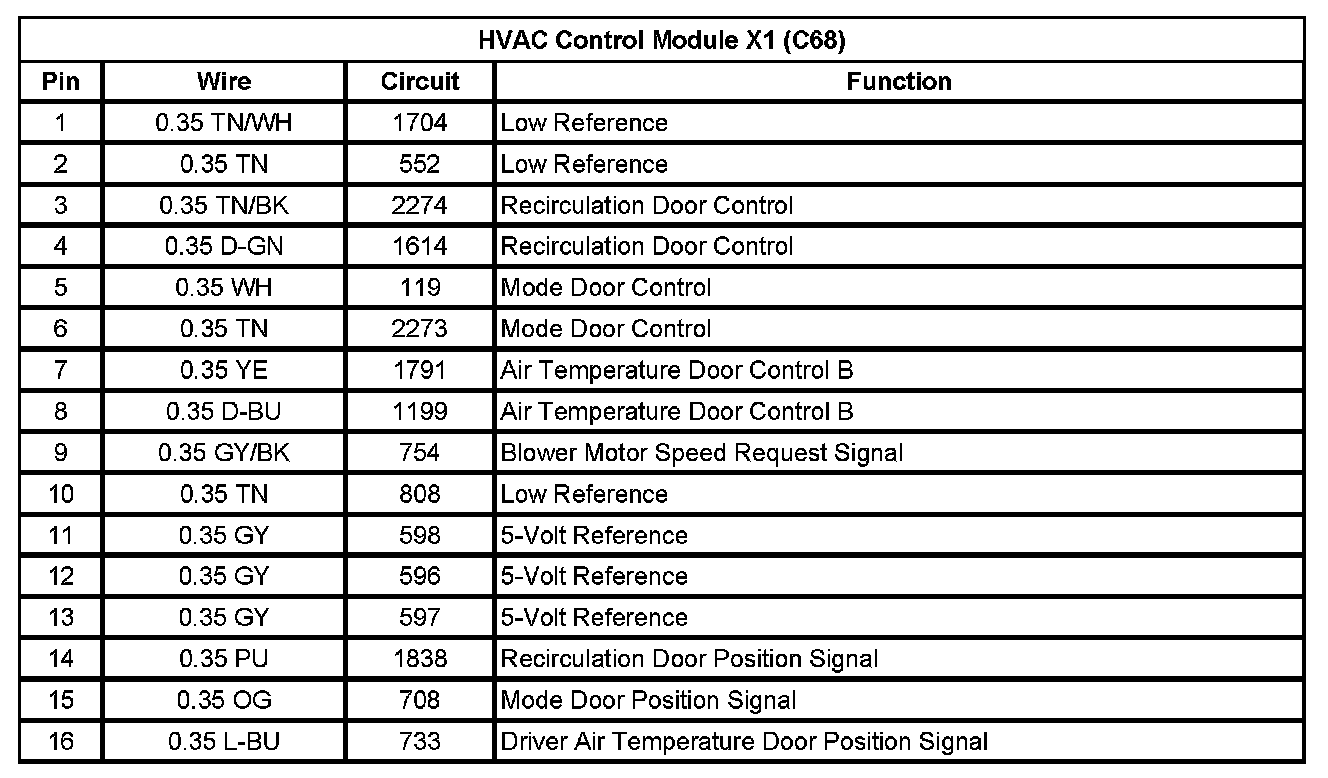

HVAC Control Module X1 (C68)














HVAC Control Module X2 (C60)














HVAC Control Module X2 (C68)
