Underhood Fuse Block
Underhood Fuse Block
Electrical Center Identification Views

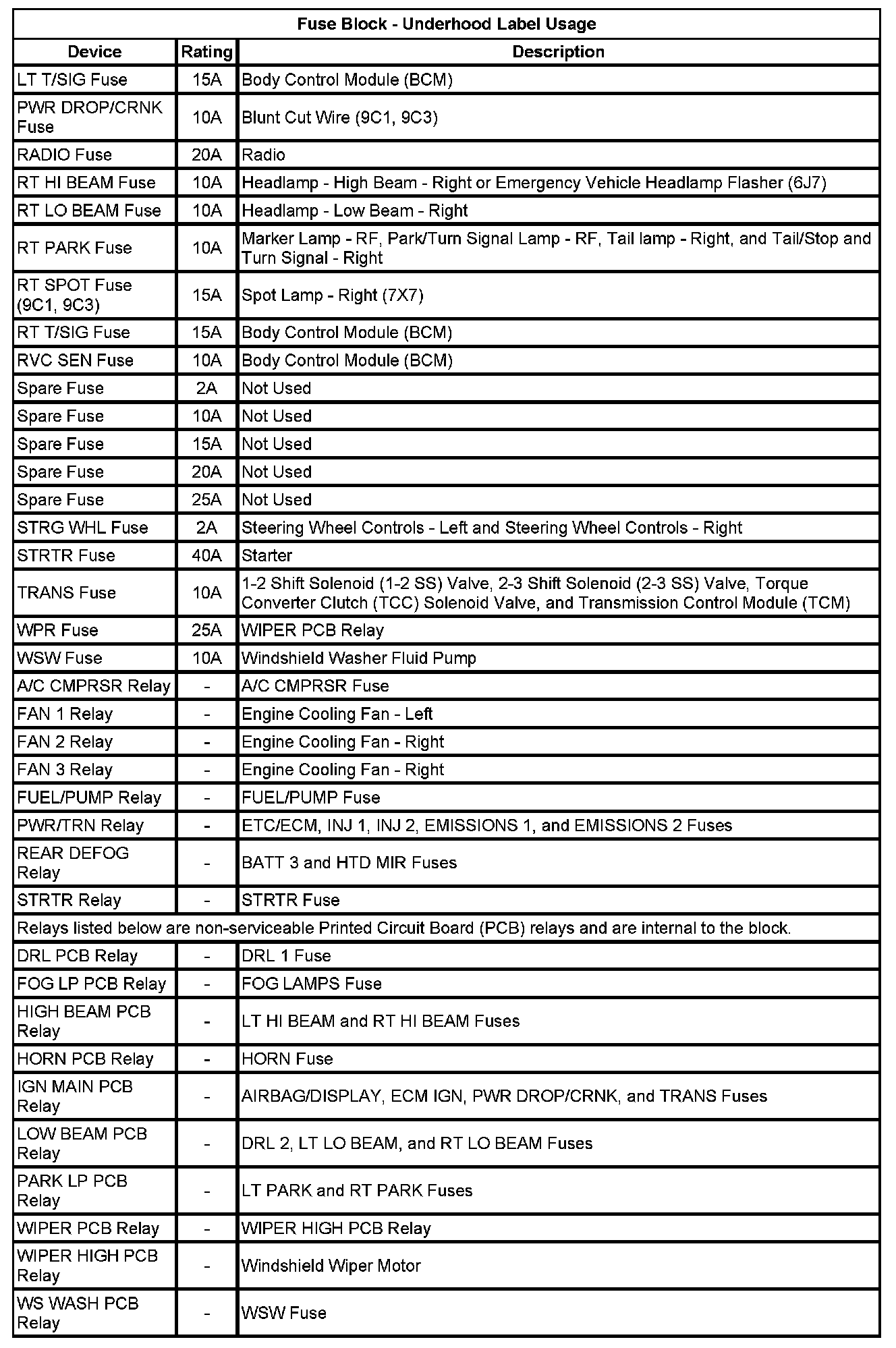

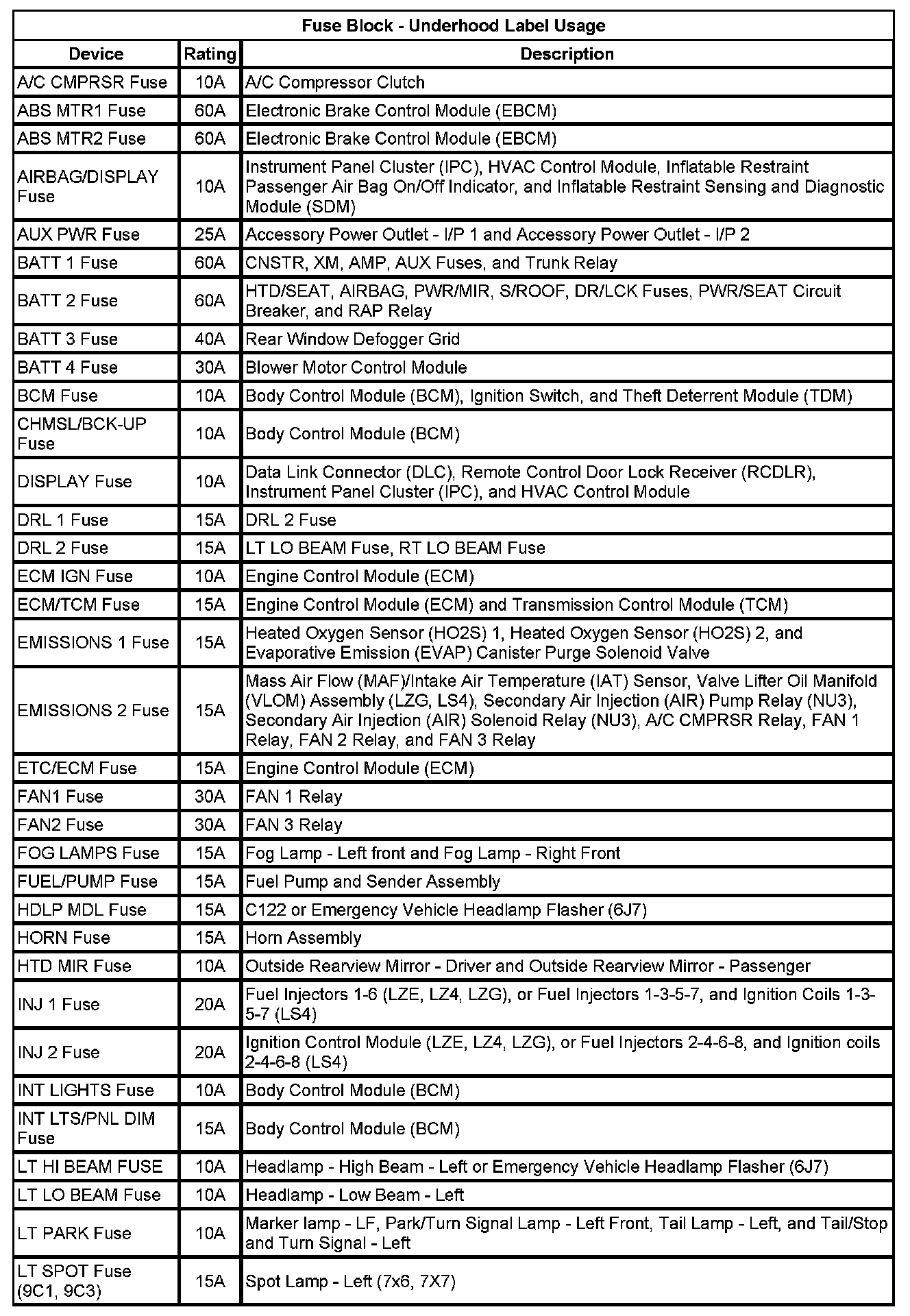

Fuse Block
- Underhood Label
