Home >> Chevrolet >> 2008 >> HHR L4-2.4L >> Repair and Diagnosis >> Maintenance >> Fluids >> Fluid - A/T >> Testing and Inspection

Fluid - A/T: Testing and Inspection

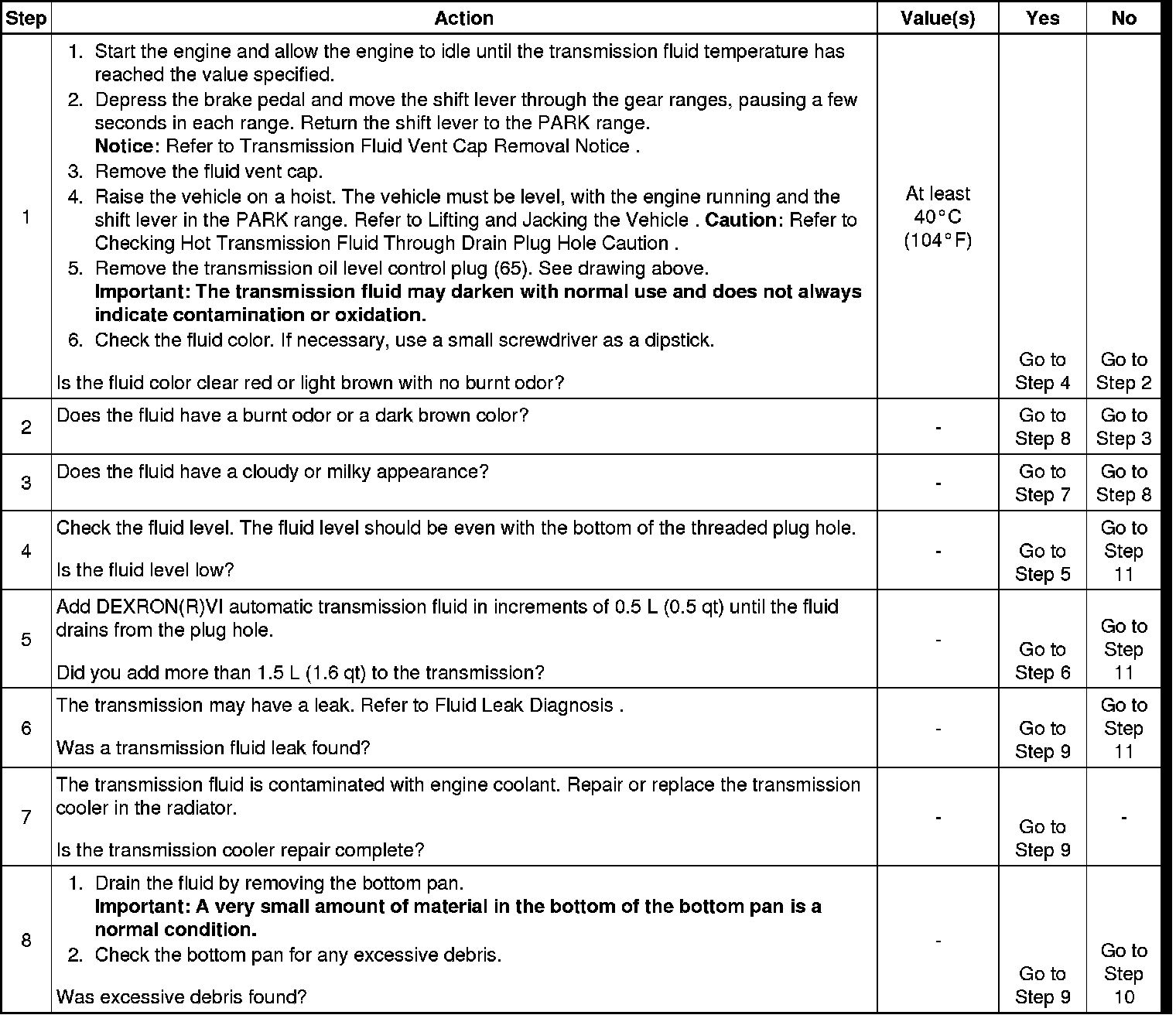

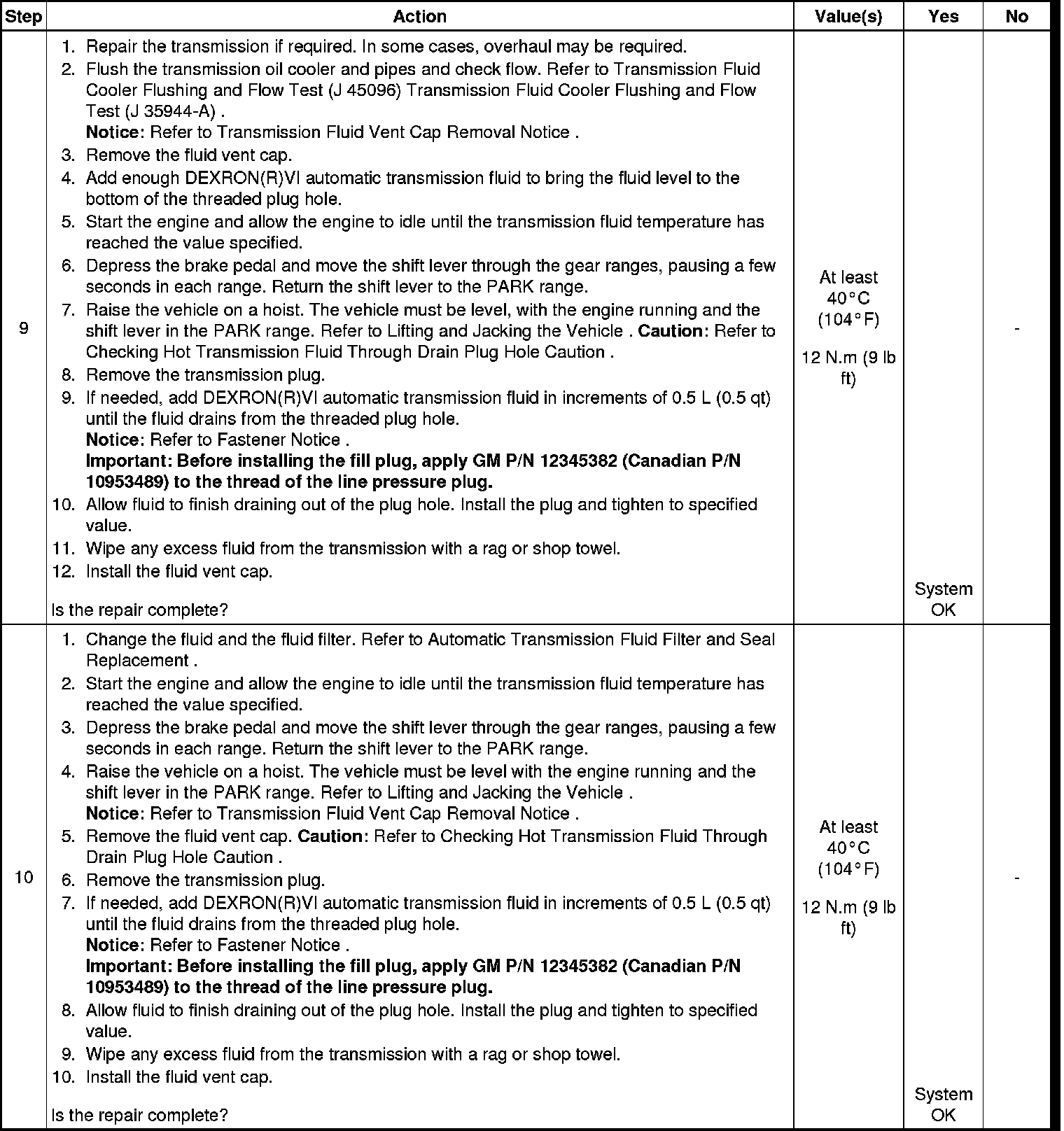

Transmission Fluid Check

Transmission Fluid Check:





The oil level control plug (65) is located on the torque converter side of the transmission.
