Home >> Chevrolet >> 2008 >> HHR L4-2.2L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Diagrams

Power Window Switch: Diagrams

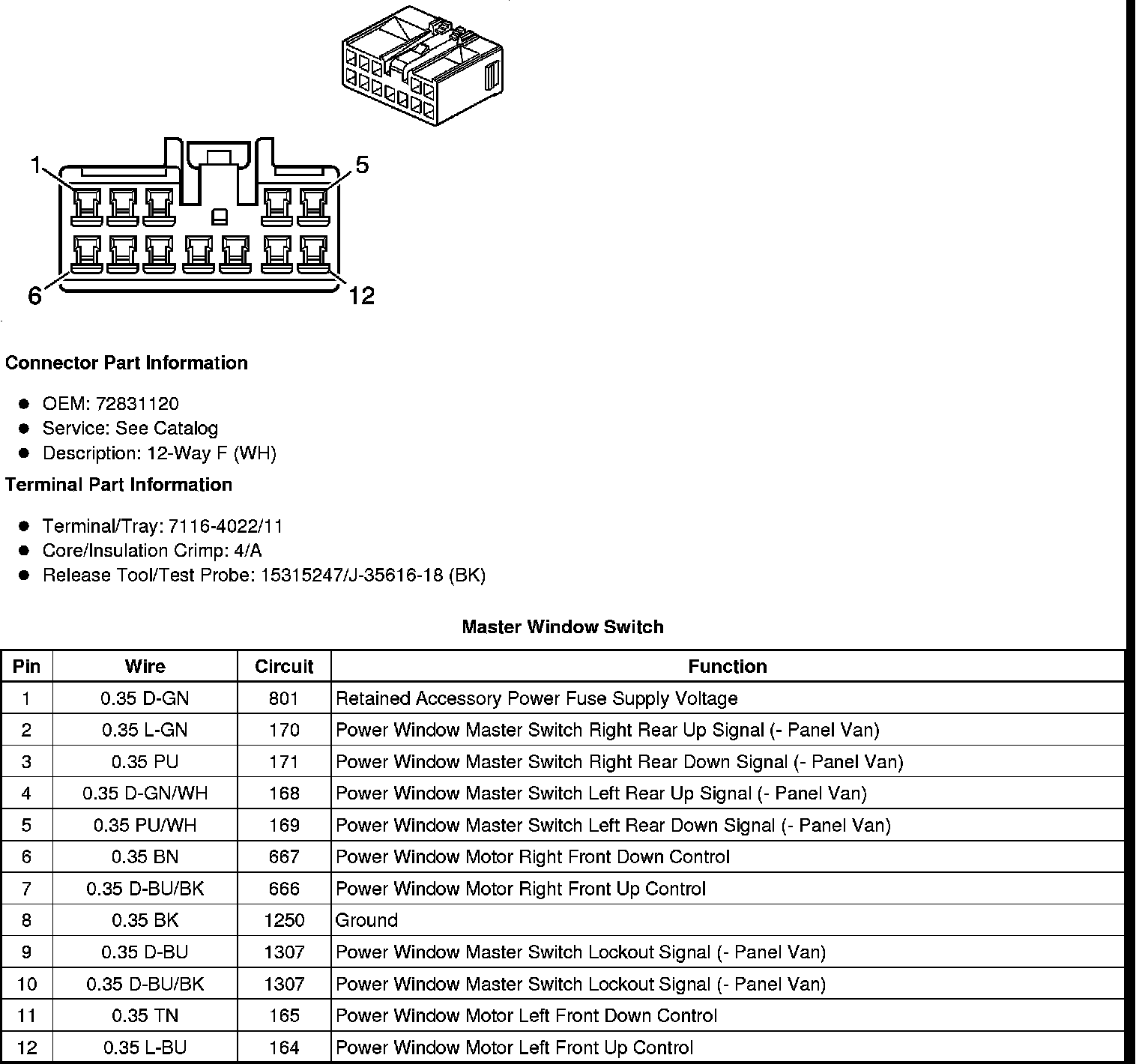

Master Window Switch

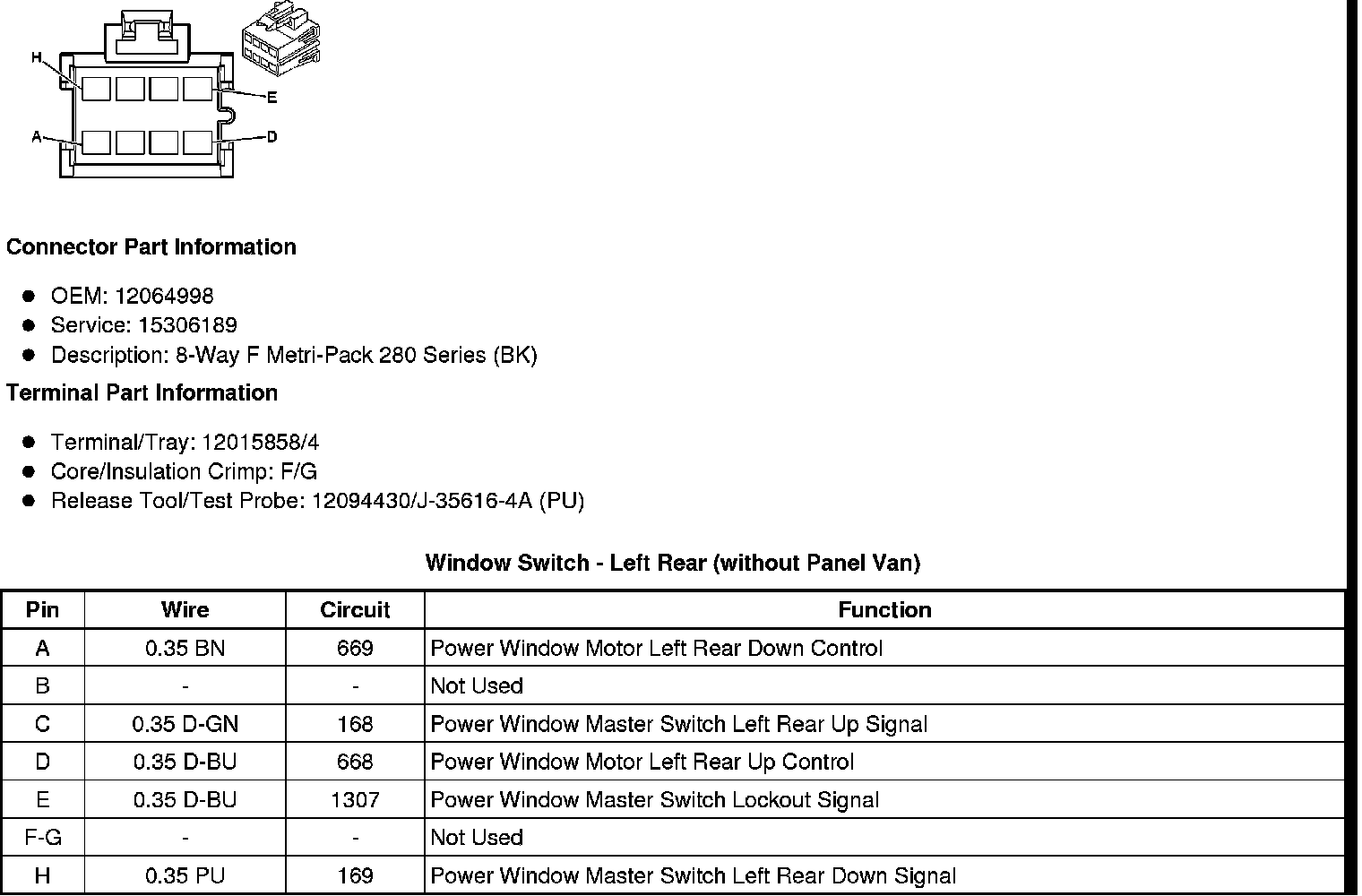

Window Switch - Left Rear (without Panel Van)






Window Switch - Right Rear (without Panel Van)
