Home >> Chevrolet >> 2008 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate

Trunk / Liftgate



Liftgate Release Switch

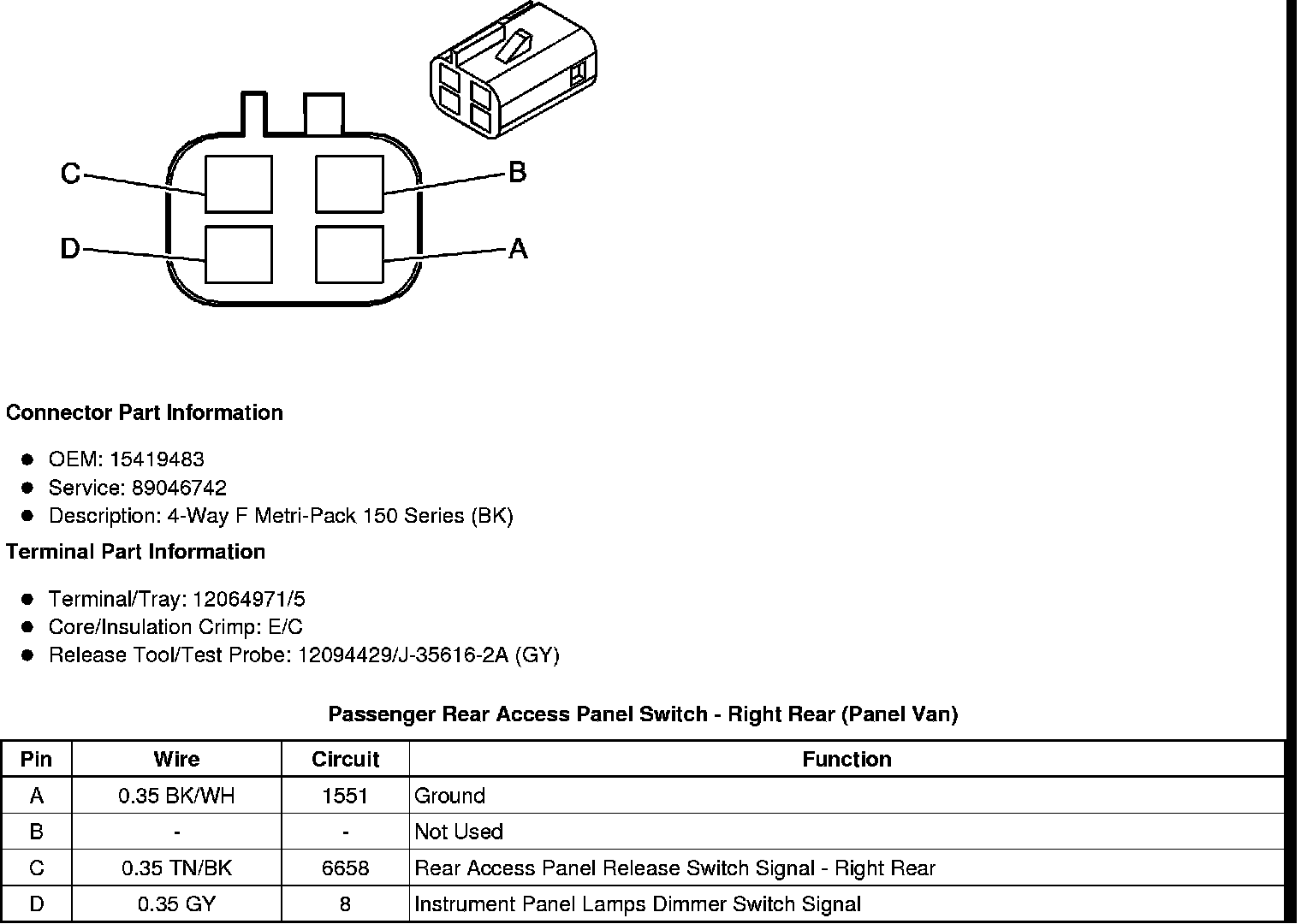

Passenger Rear Access Panel Switch - Right Rear (Panel Van)
