Seat Temperature Element



Heated Seat Element - Driver Back (KA1)






Heated Seat Element - Driver Cushion (KA1)






Heated Seat Element - Passenger Back (KA1)

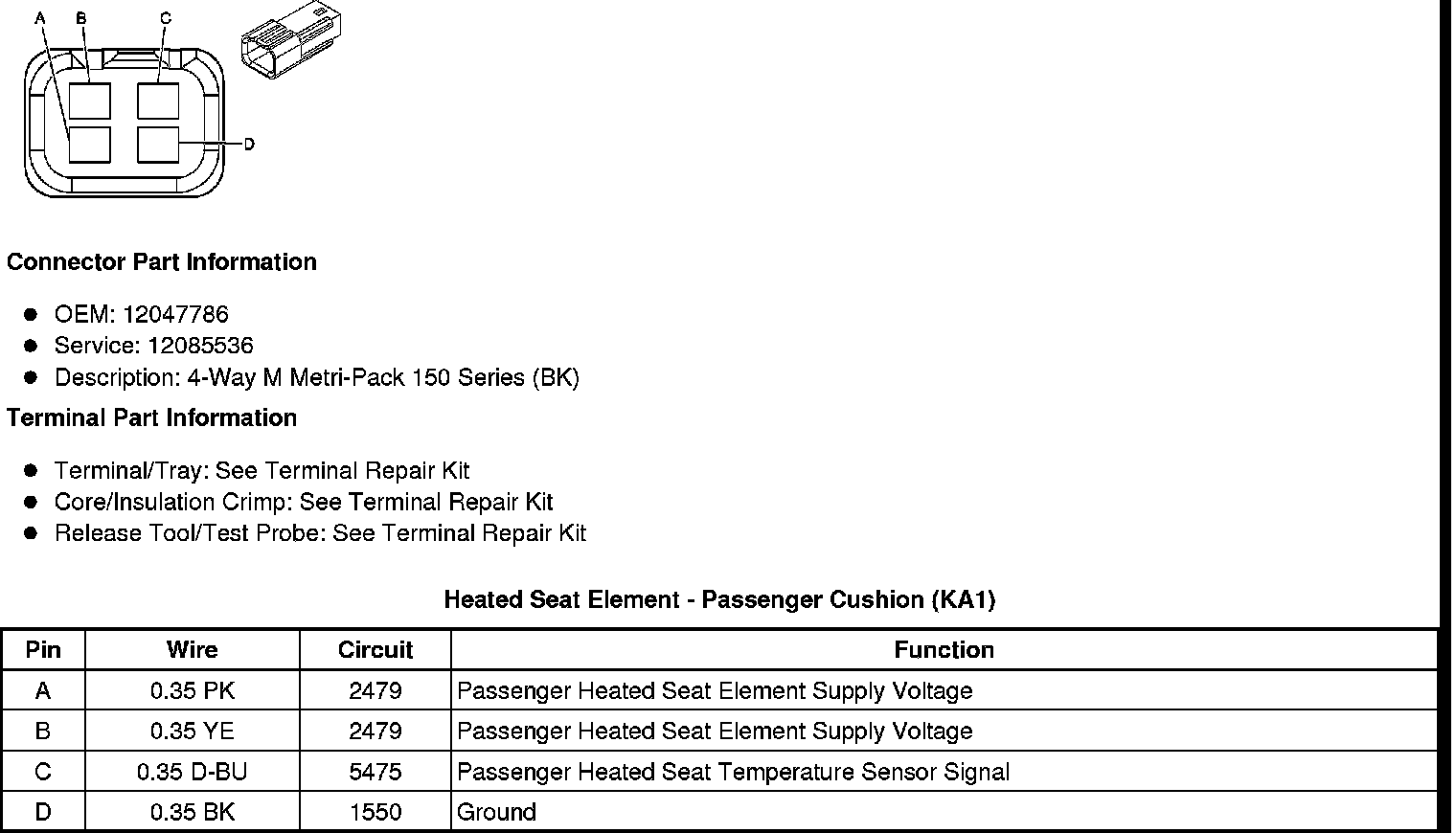

Heated Seat Element - Passenger Cushion (KA1)
