Oxygen Sensor
Oxygen Sensor

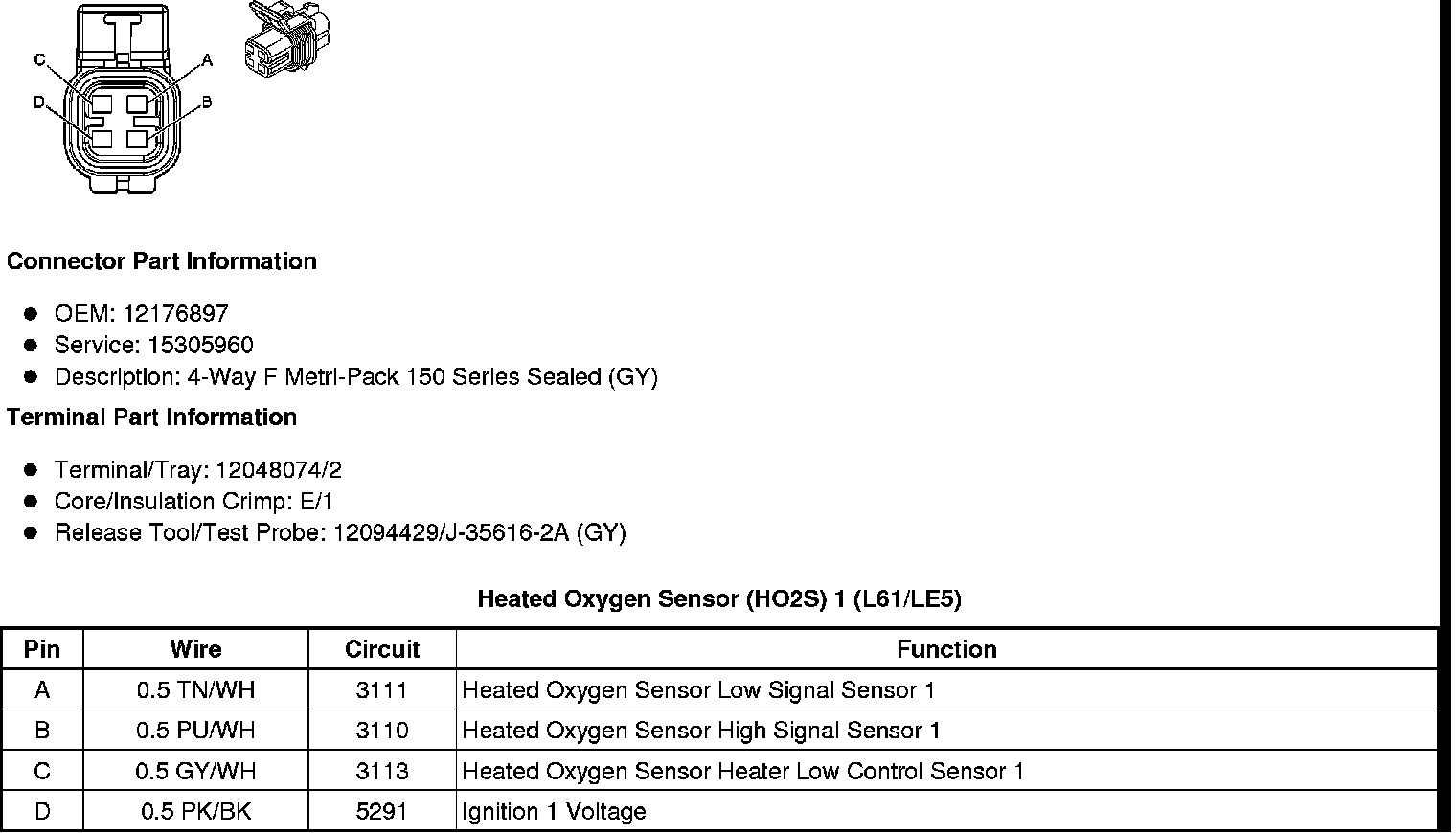

Heated Oxygen Sensor (HO2S) 1 (L61/LE5)

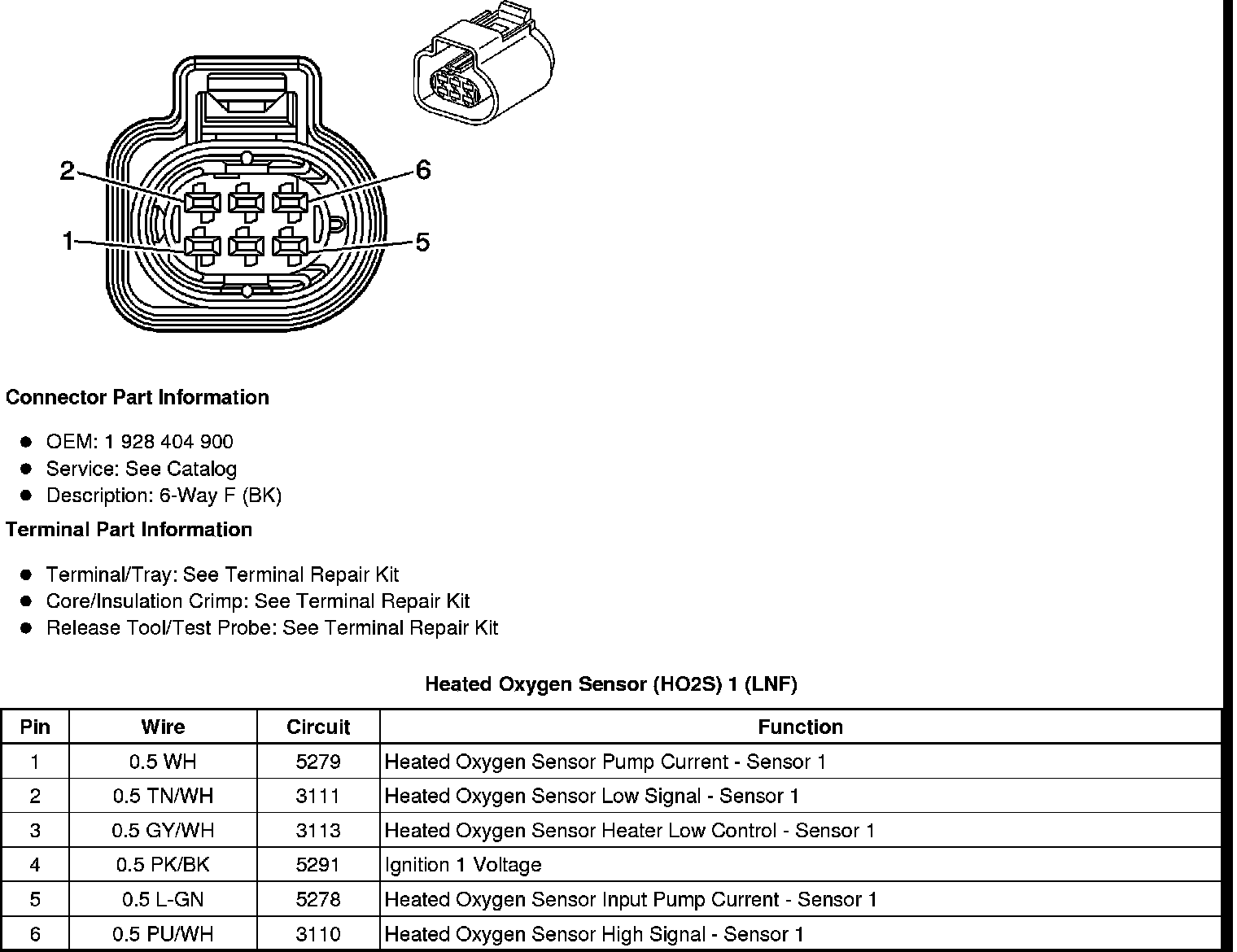

Heated Oxygen Sensor (HO2S) 1 (LNF)

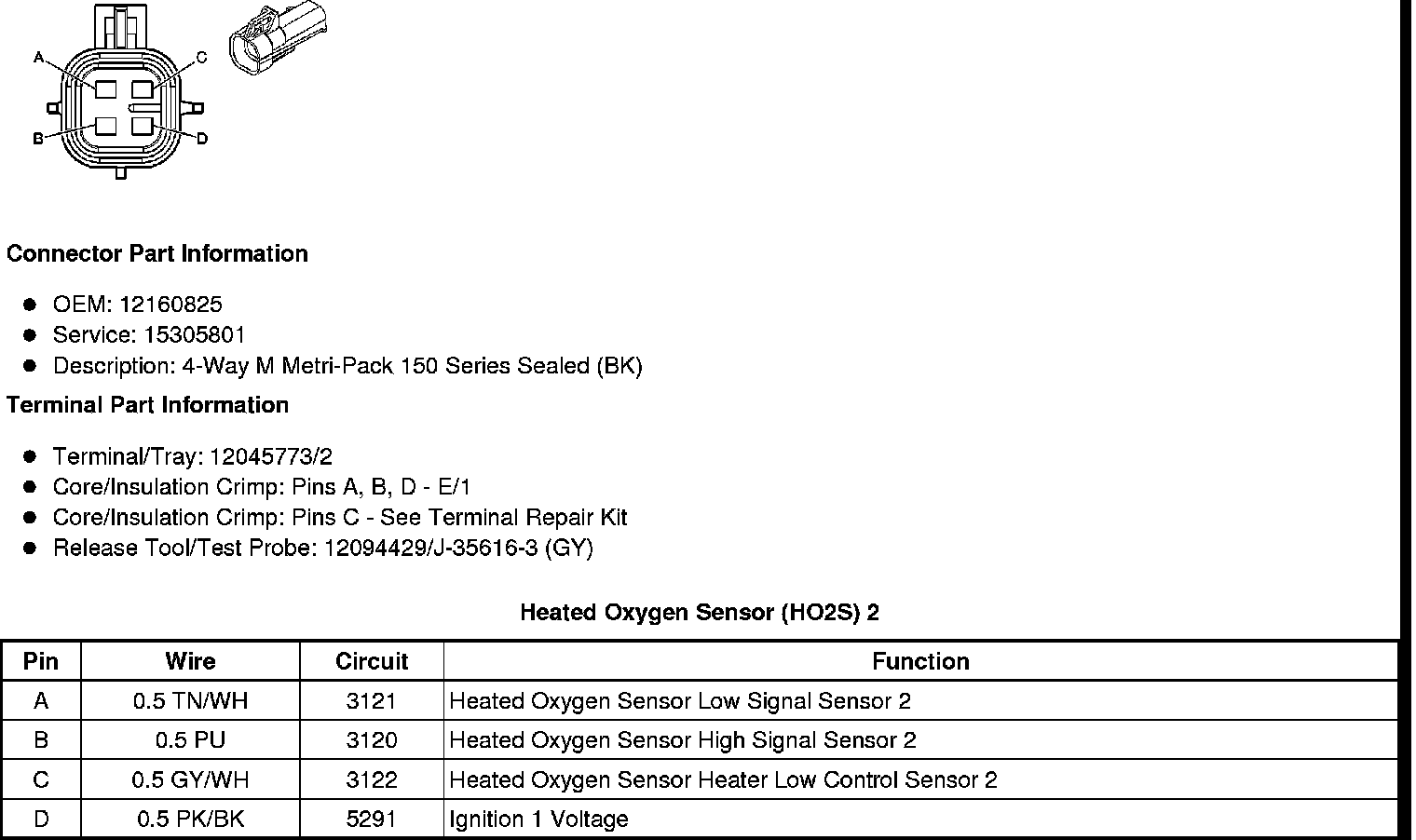

Heated Oxygen Sensor (HO2S) 2
