Home
>>
Chevrolet
>>
2008
>>
HHR L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X300-X399
>>
X310
X310

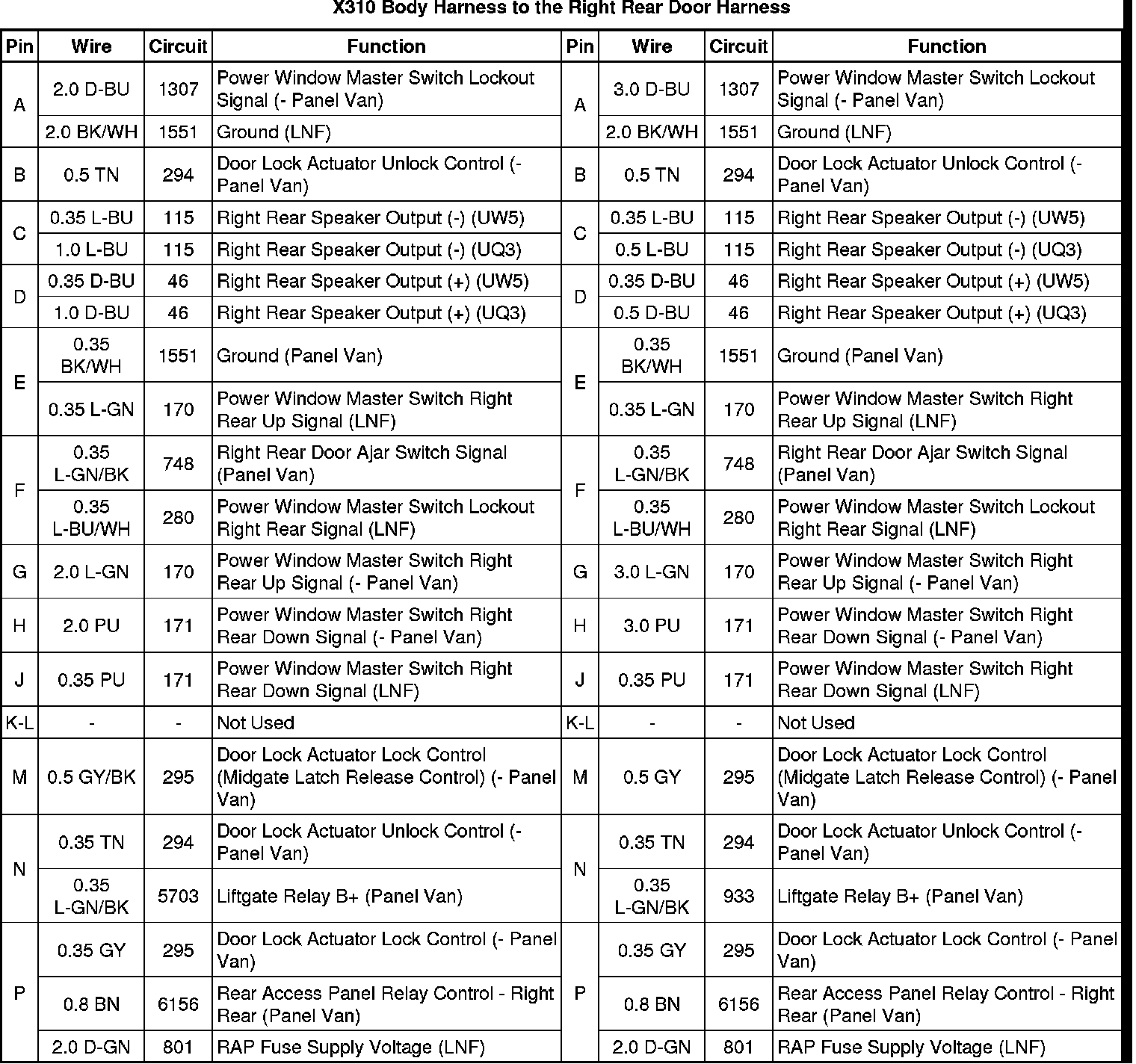

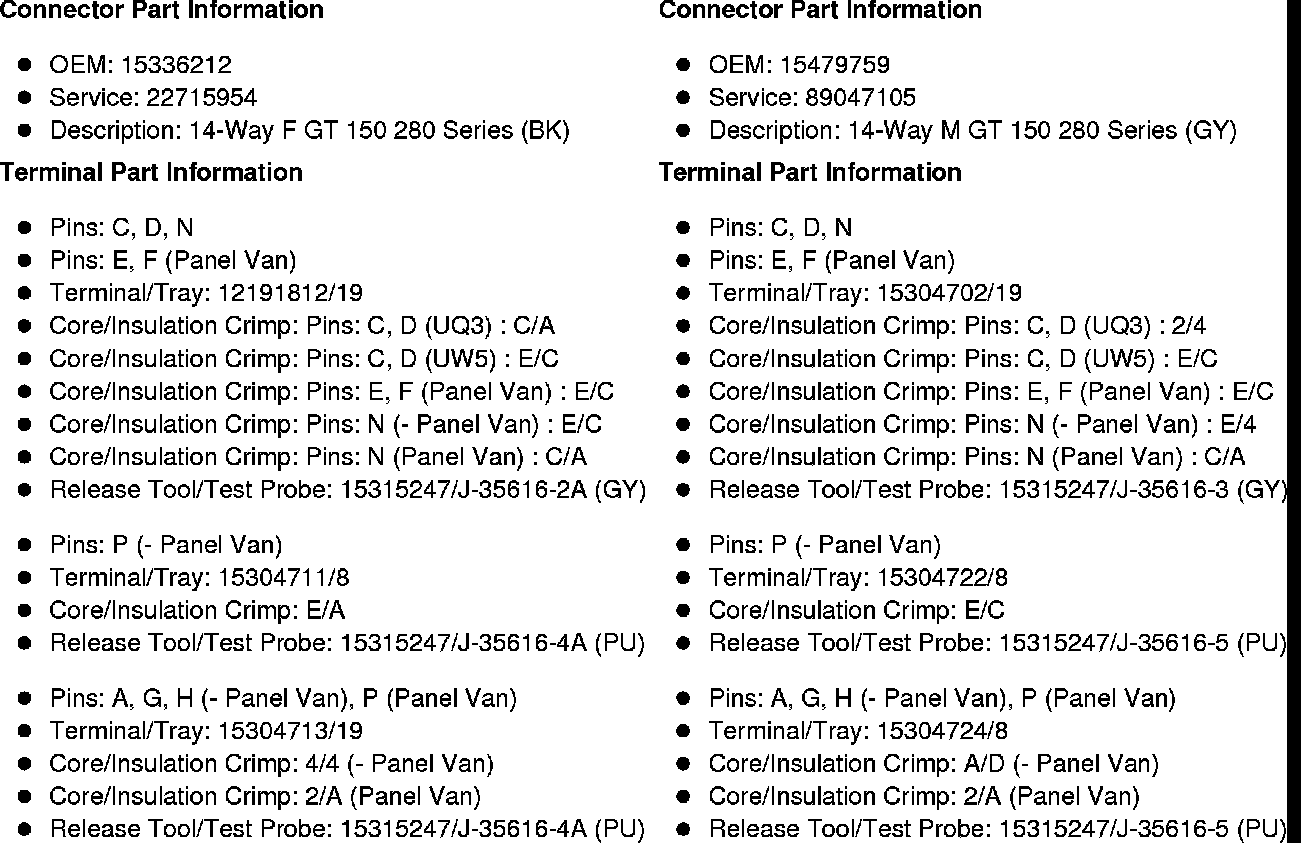

X310 Body Harness to the Right Rear Door Harness
