Control Assembly, HVAC

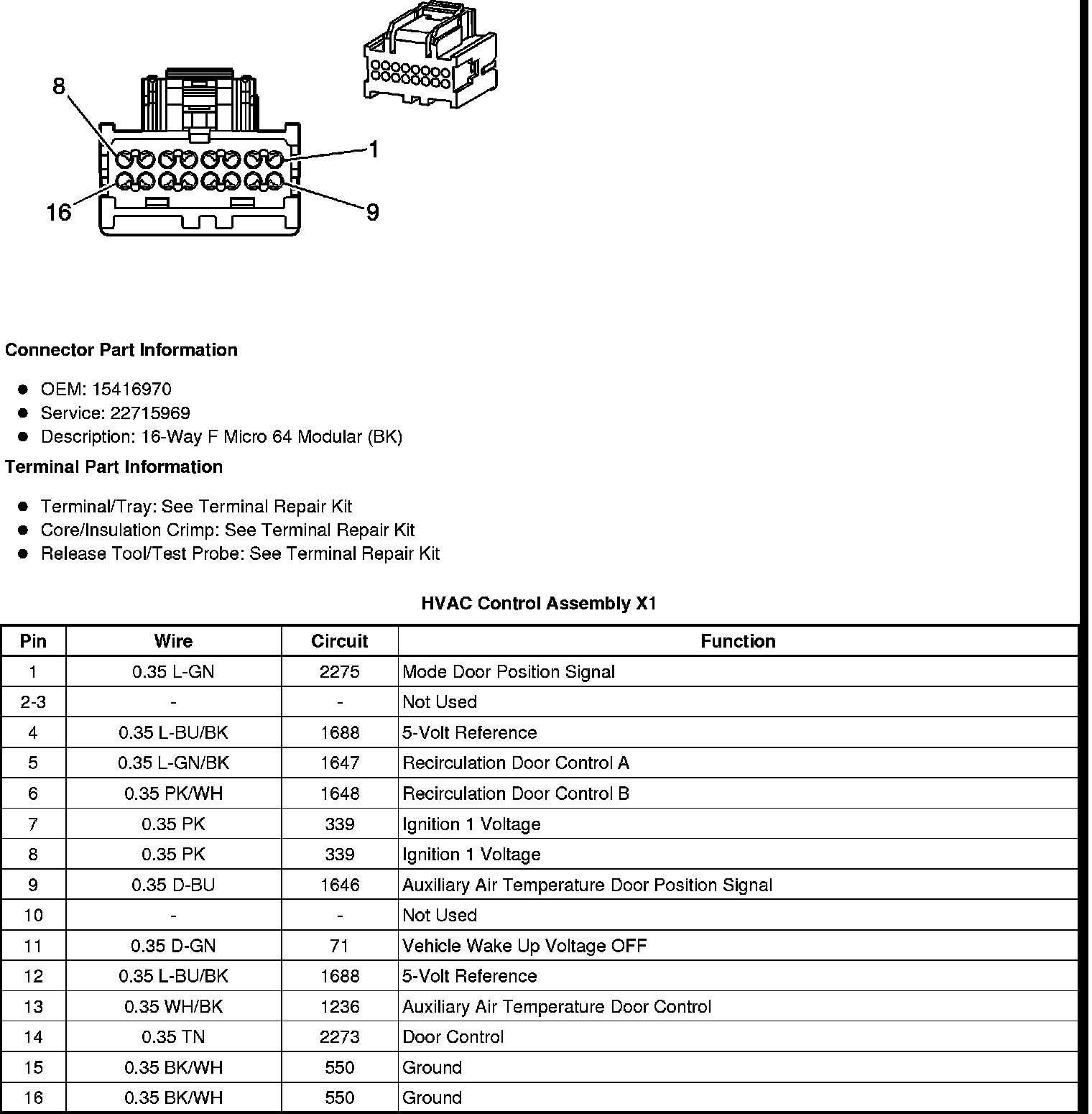

HVAC Control Assembly X1

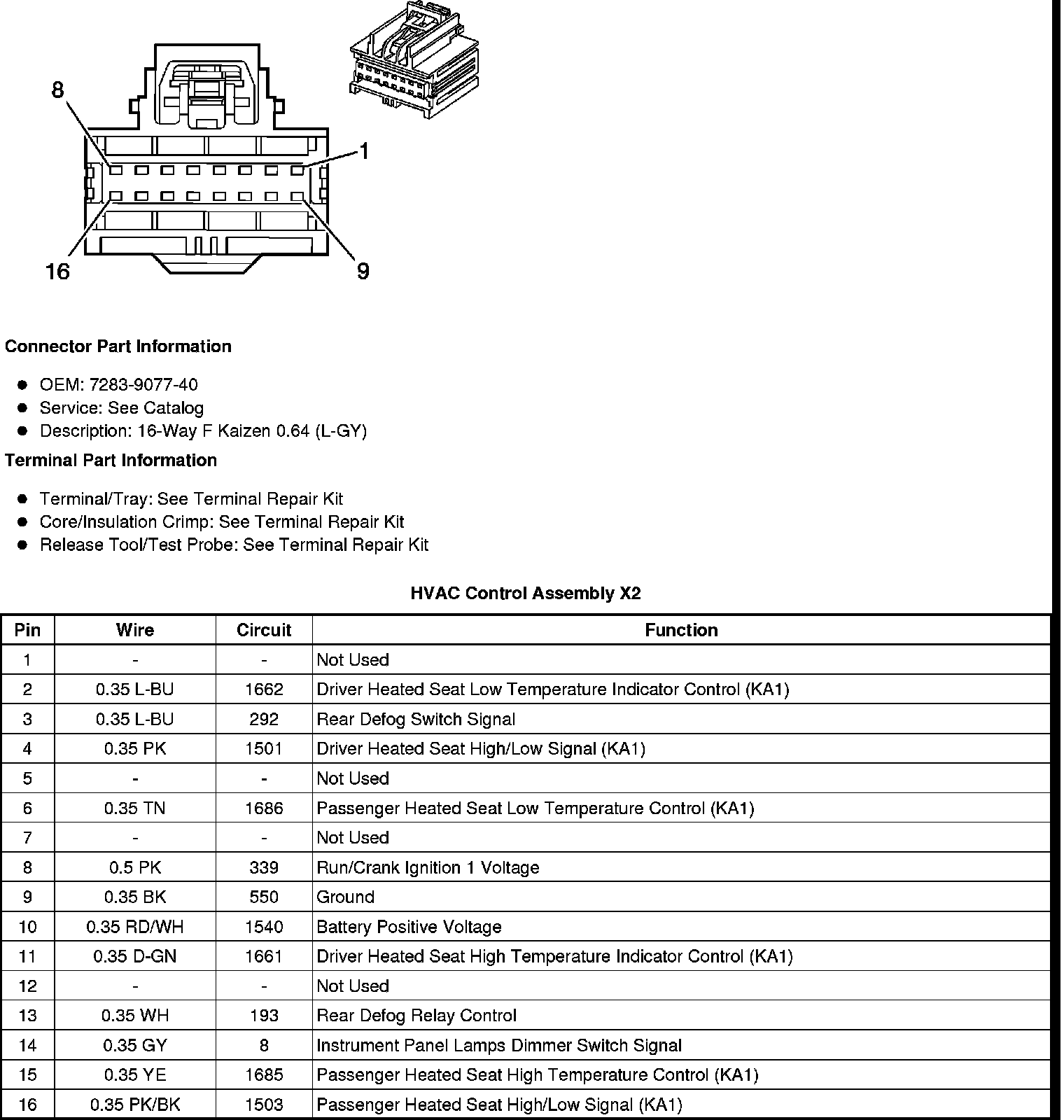

HVAC Control Assembly X2






HVAC Control Assembly X3
