Home >> Chevrolet >> 2008 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Transmission Position Sensor/Switch, A/T

Transmission Position Sensor/Switch, A/T

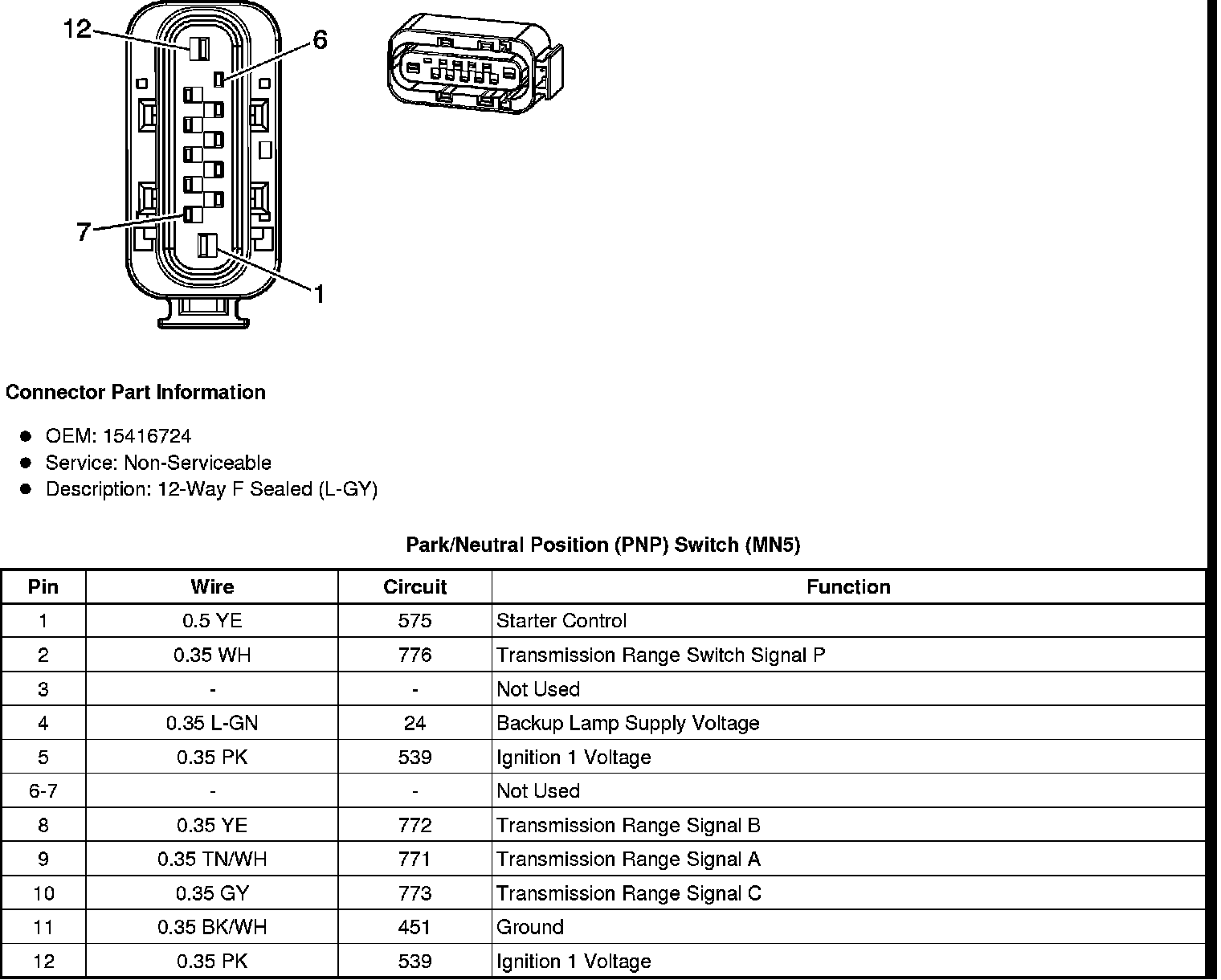

Park/Neutral Position (PNP) Switch (MN5)
