Home >> Chevrolet >> 2008 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Systems >> Air Bag Control Module

Air Bag Control Module

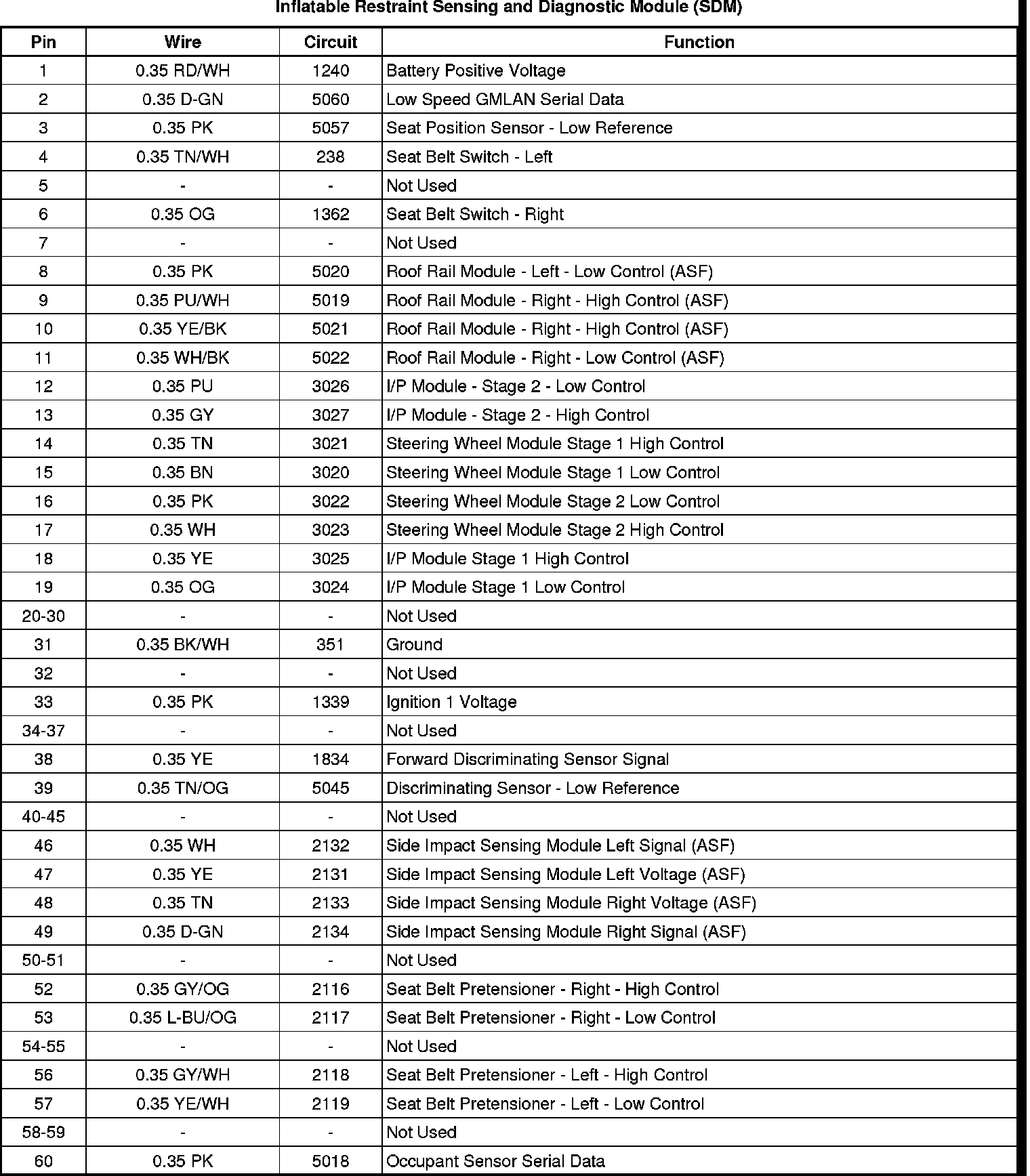

Inflatable Restraint Sensing and Diagnostic Module (SDM)
