Turn Signal Lamp



Component Connector End Views

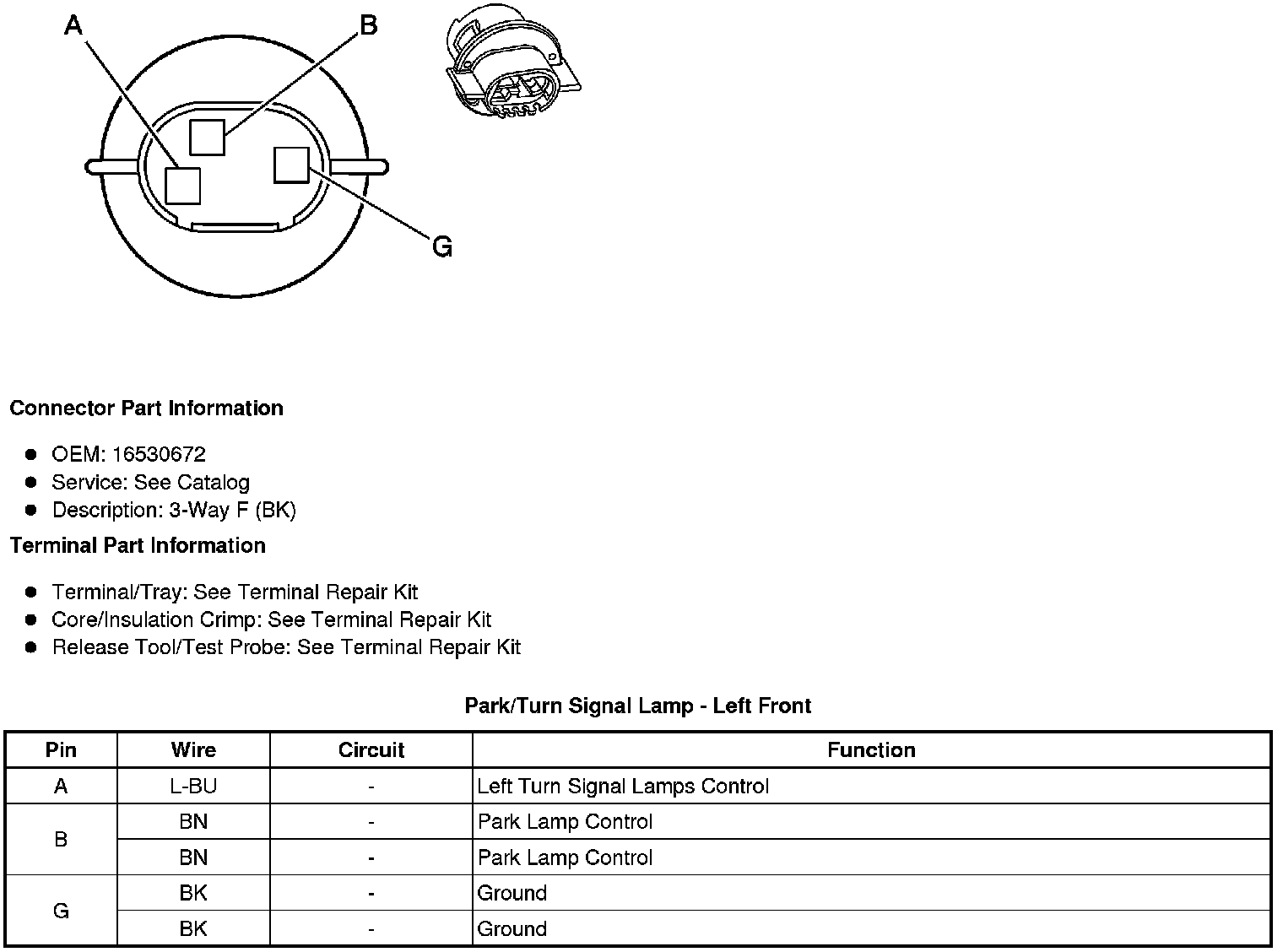

Park/Turn Signal Lamp - Left Front

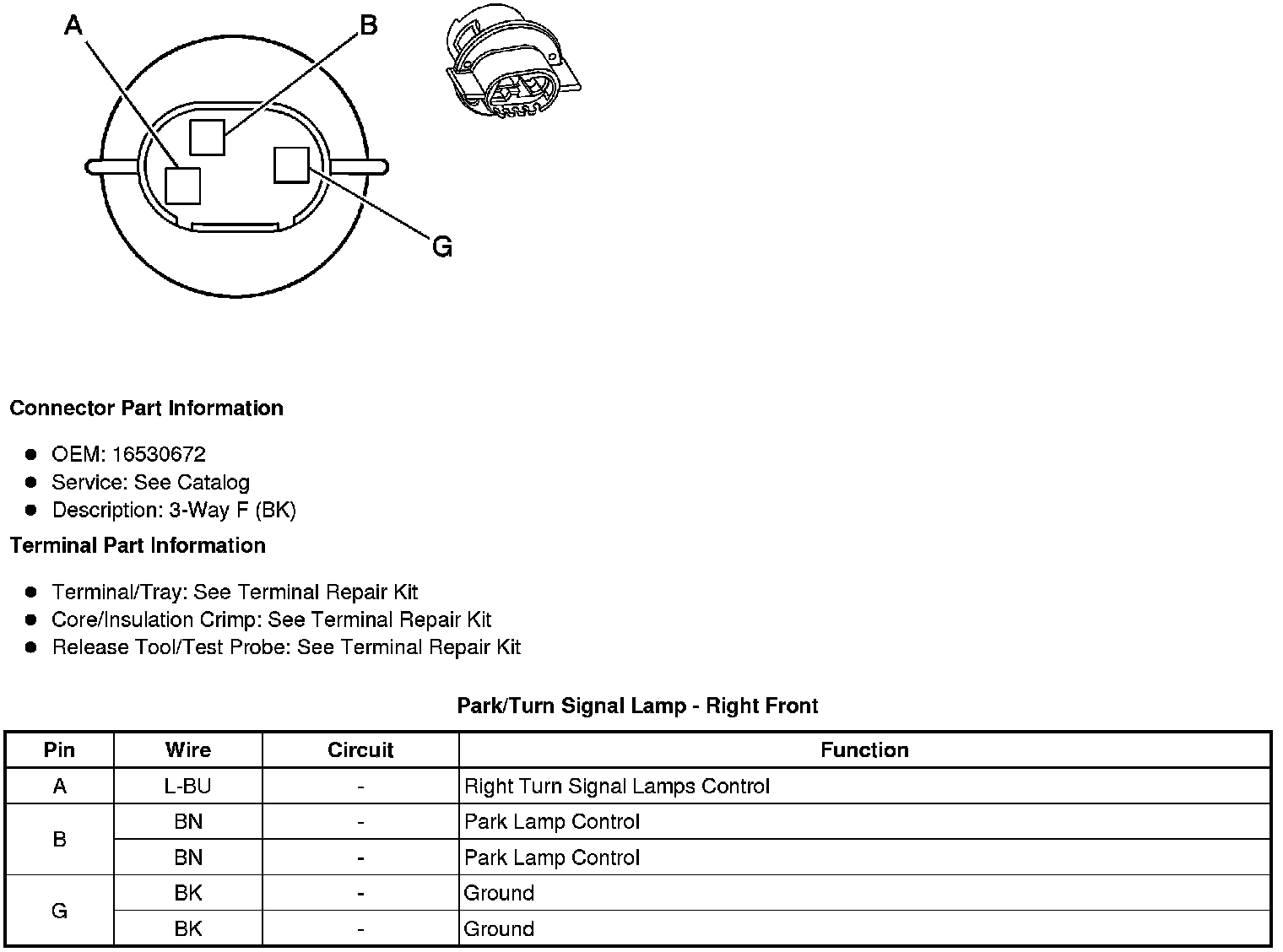

Park/Turn Signal Lamp - Right Front





Turn Signal Lamp - Left Rear

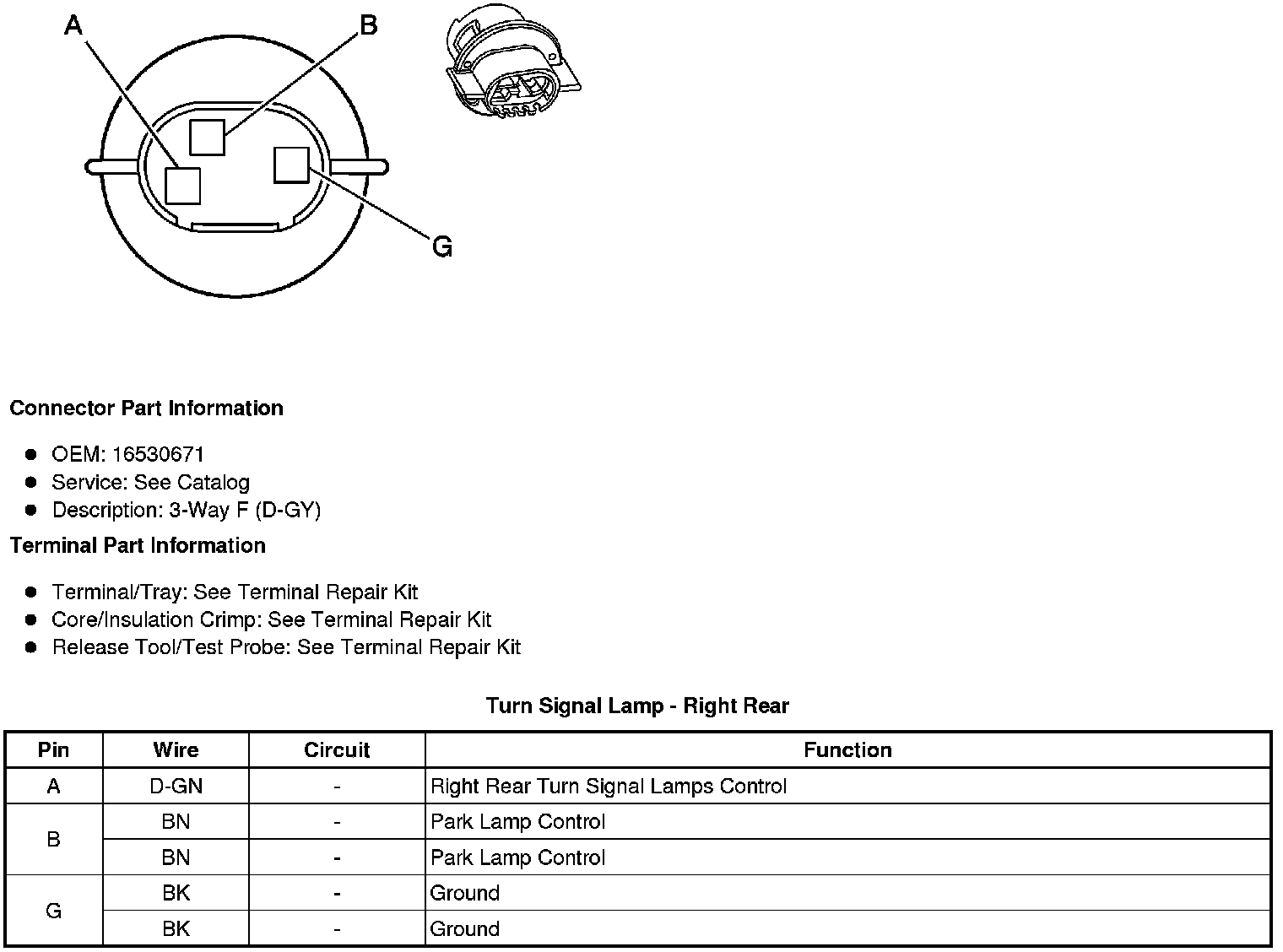

Turn Signal Lamp - Right Rear
