Power Seat Switch



Component Connector End Views

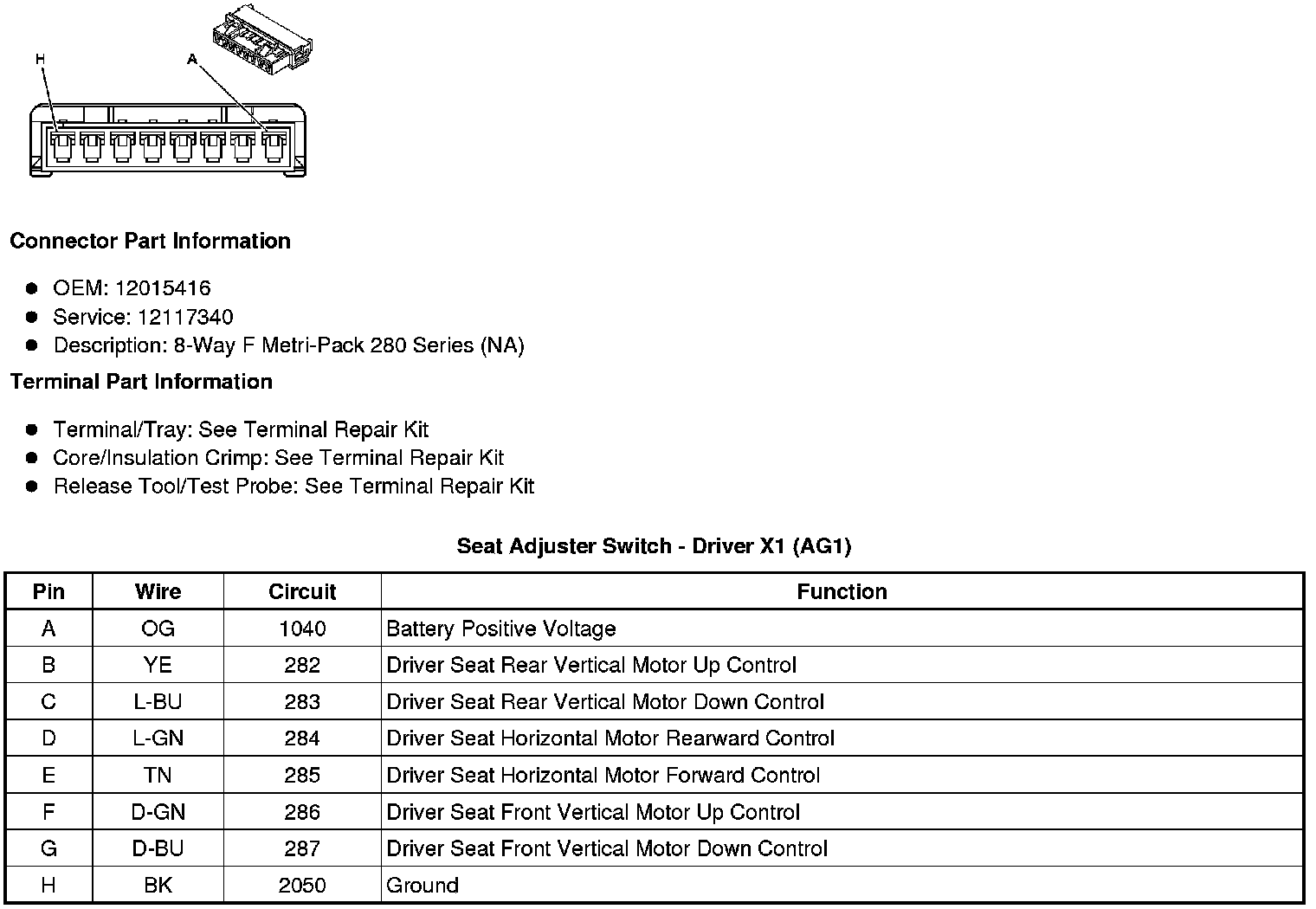

Seat Adjuster Switch - Driver X1 (AG1)





Seat Adjuster Switch - Driver X2 (AG1)

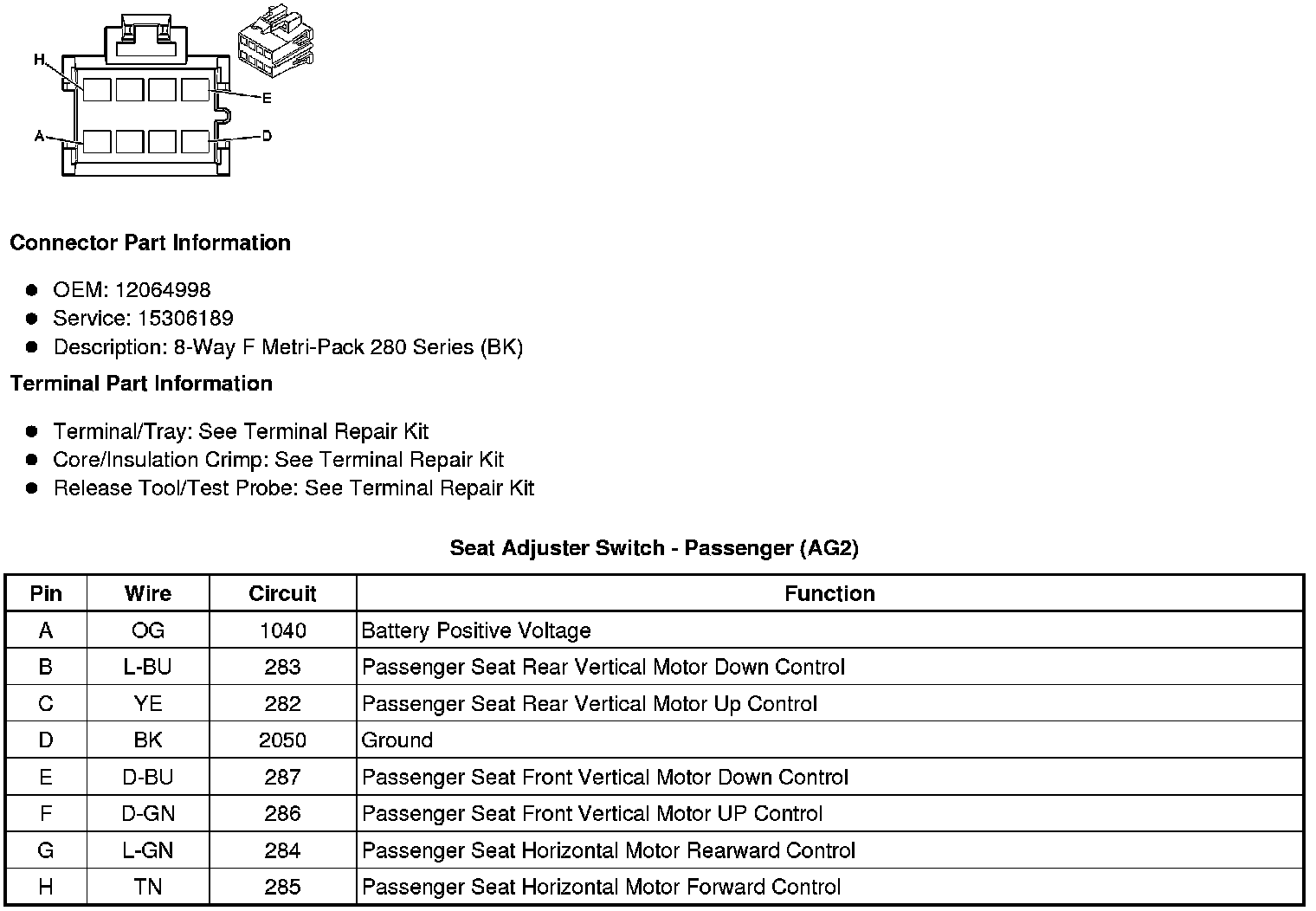

Seat Adjuster Switch - Passenger (AG2)
