Power Door Lock Switch



Component Connector End Views

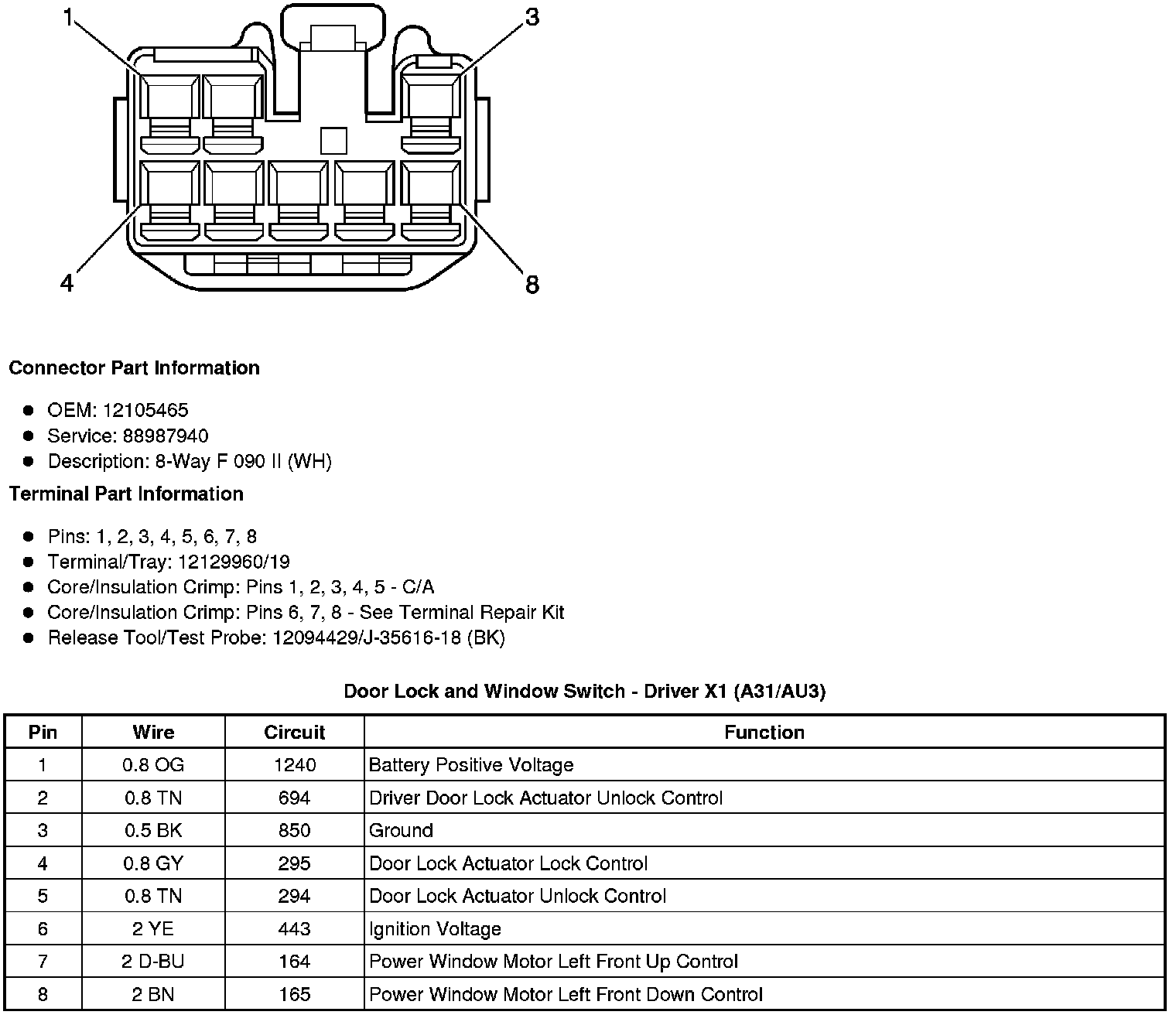

Door Lock and Window Switch - Driver X1 (A31/AU3)

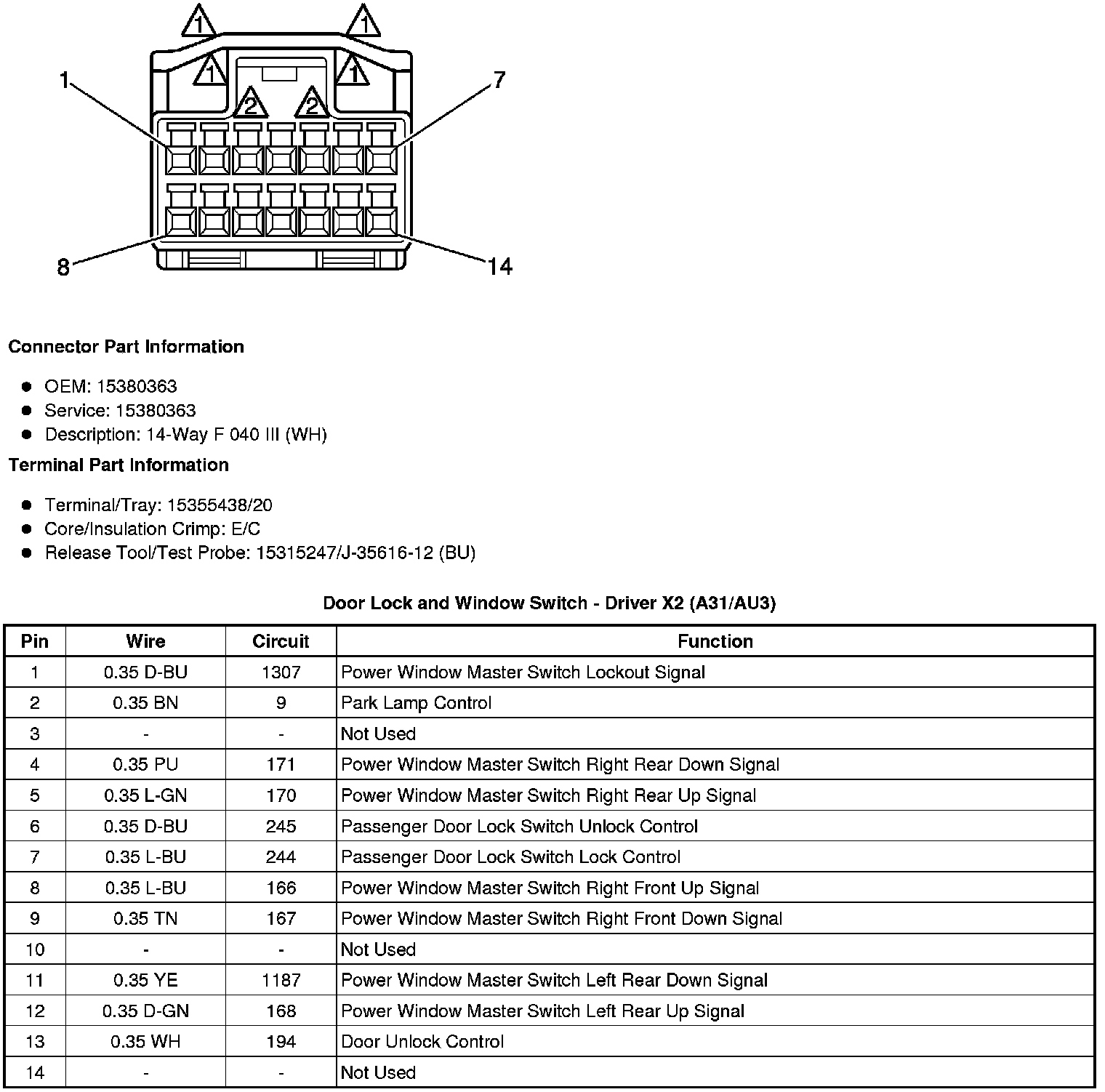

Door Lock and Window Switch - Driver X2 (A31/AU3)

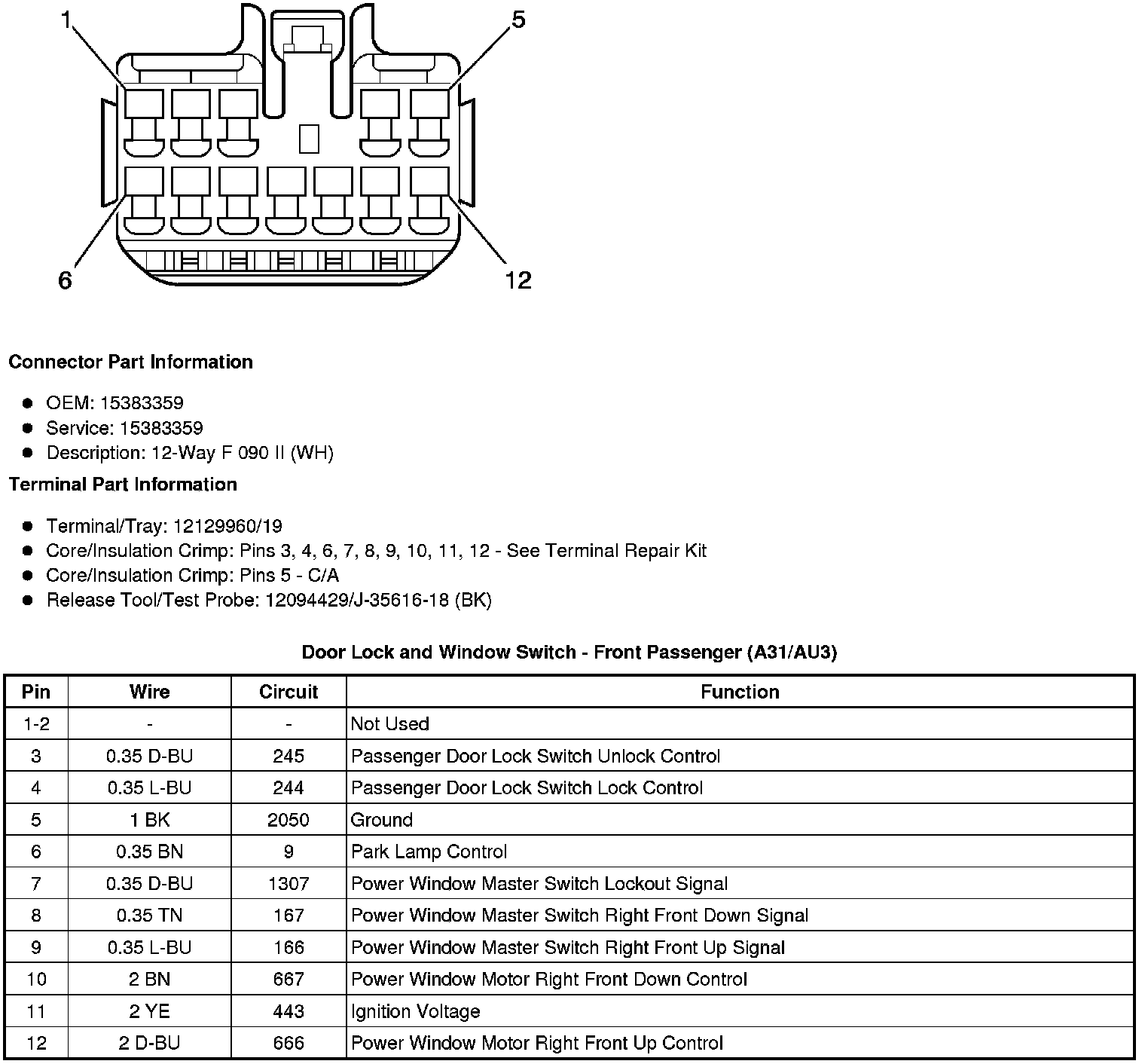

Door Lock and Window Switch - Front Passenger (A31/AU3)
