Fuel Injector



Component Connector End Views

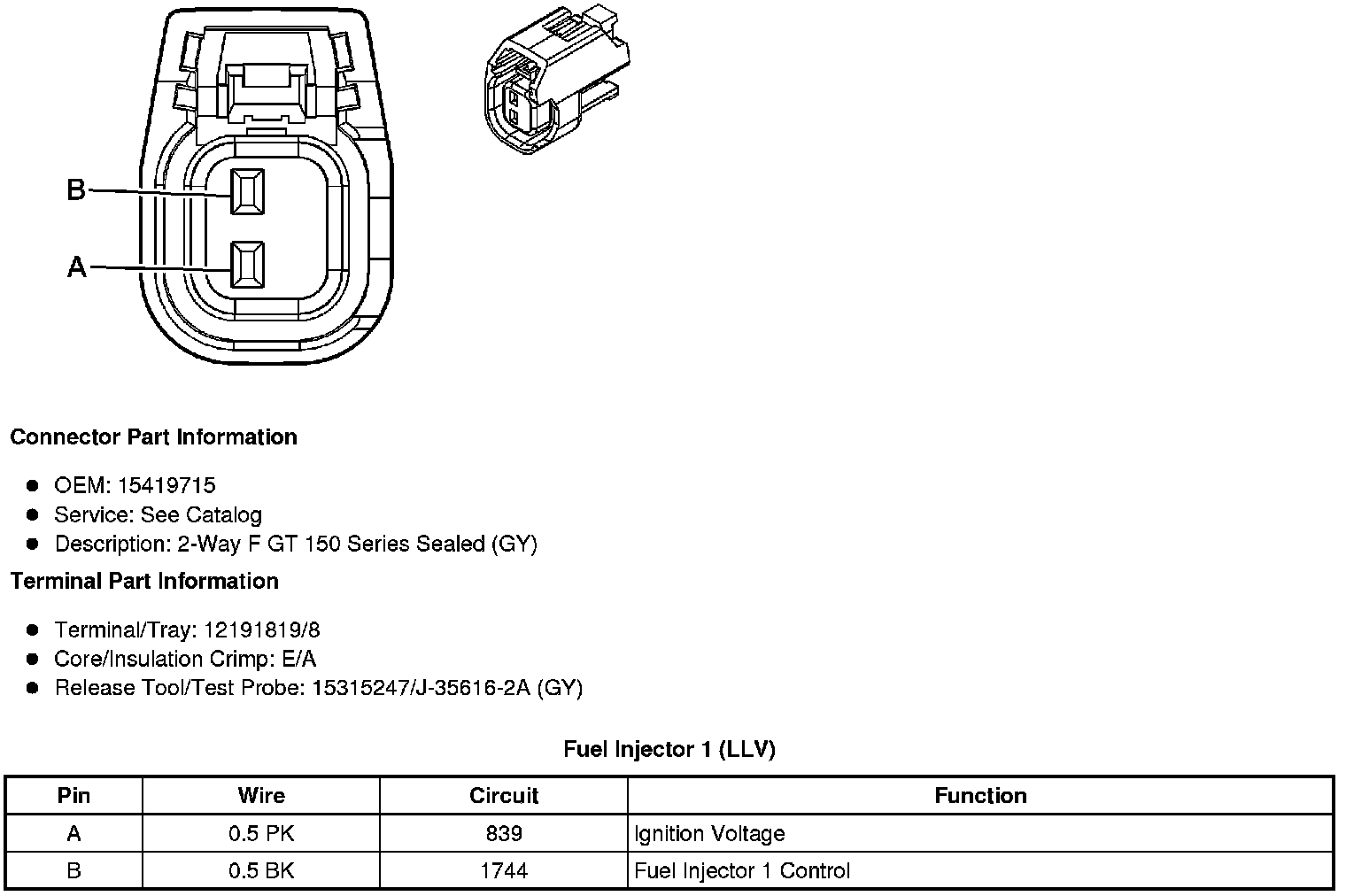

Fuel Injector 1 (LLV - 2.9L)





Fuel Injector 2 (LLV - 2.9L)

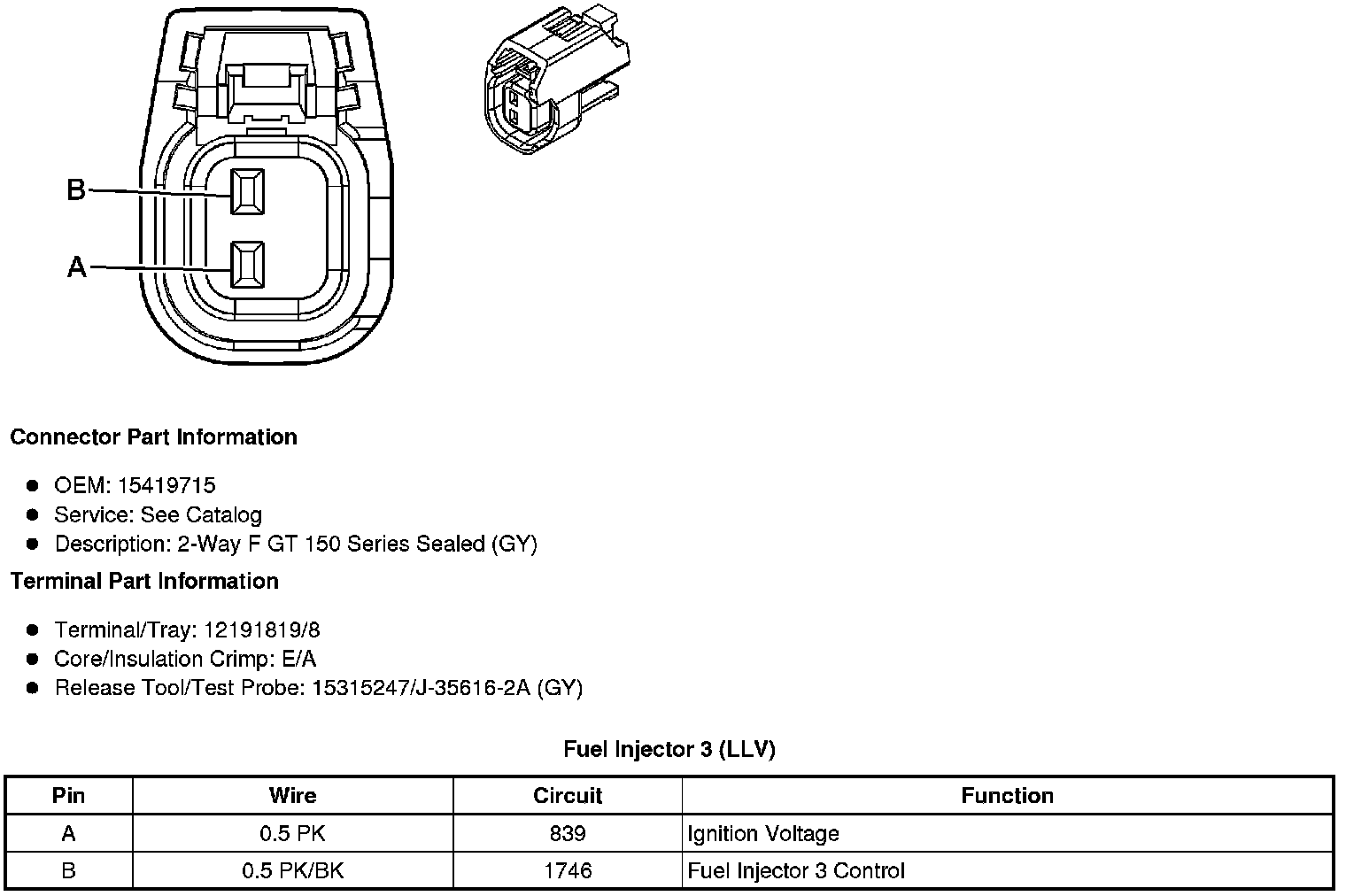

Fuel Injector 3 (LLV - 2.9L)

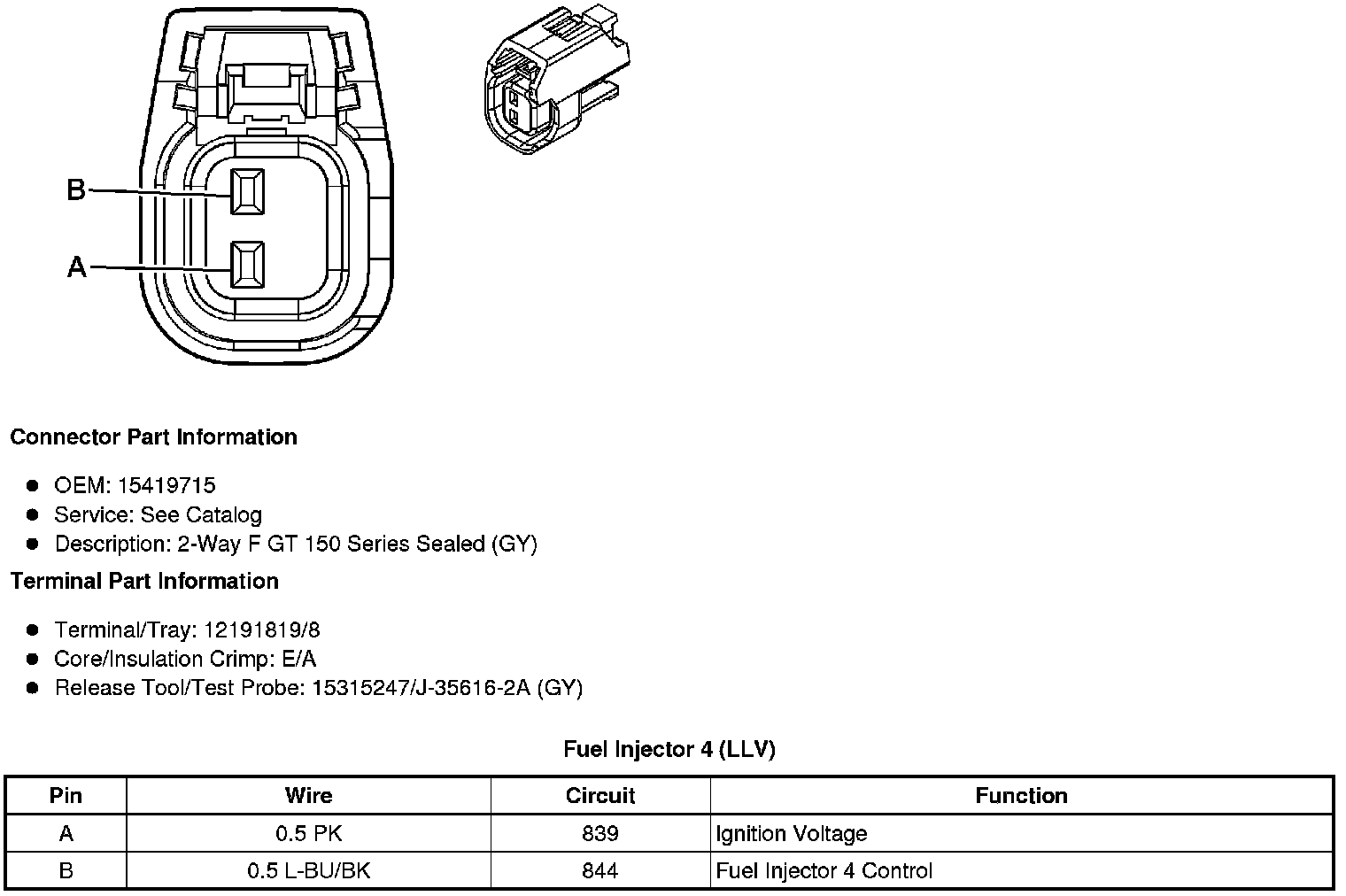

Fuel Injector 4 (LLV - 2.9L)
