Fuel Injector Views

Harness Routing Views

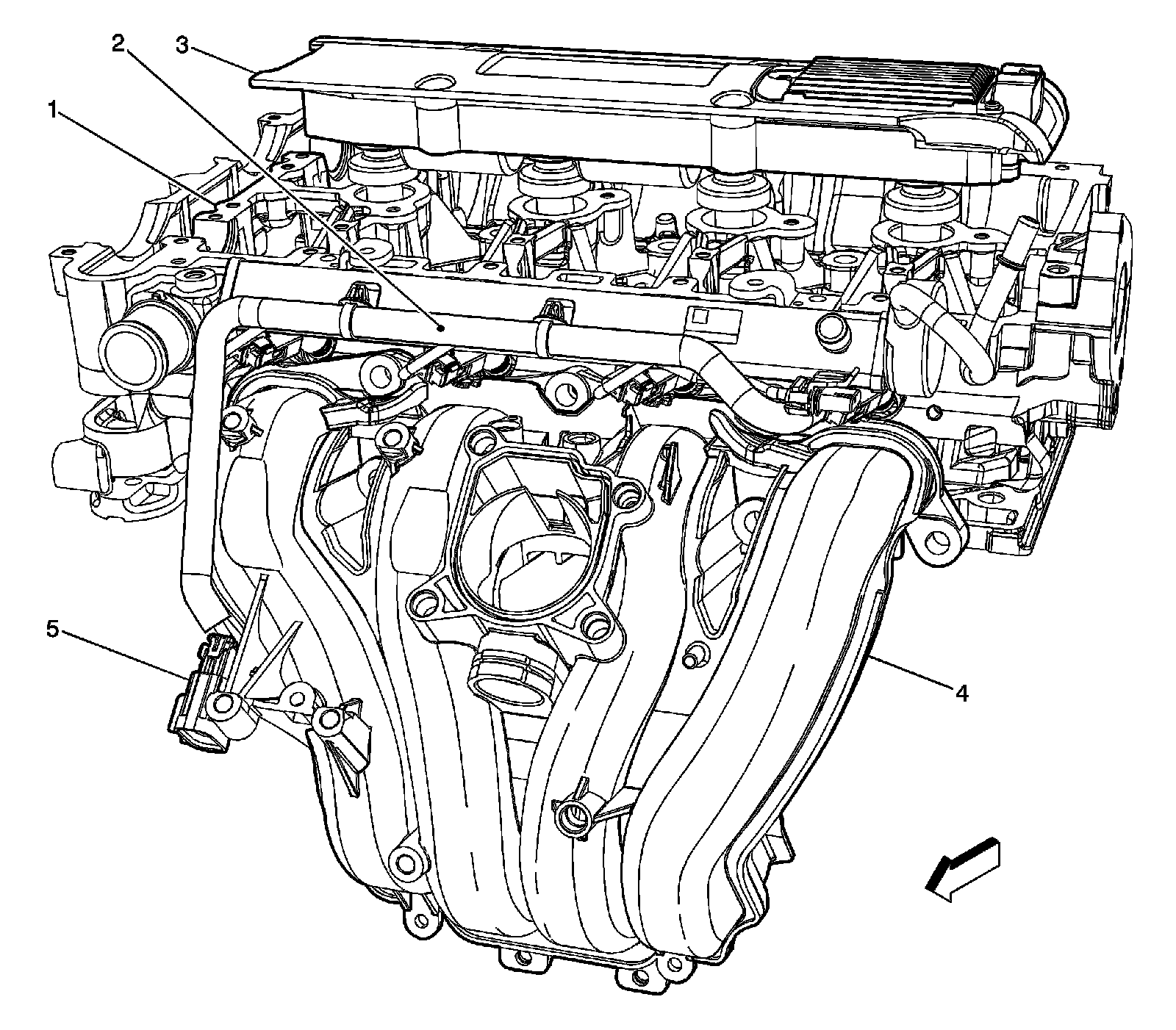

Fuel Injector Harness (L61)

1 - Cylinder Head
2 - J103
3 - Ignition Control Module (ICM)
4 - Intake Manifold
5 - X160
