Home >> Chevrolet >> 2008 >> Aveo L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> Antilock Brake System Connector End Views (Notchback)

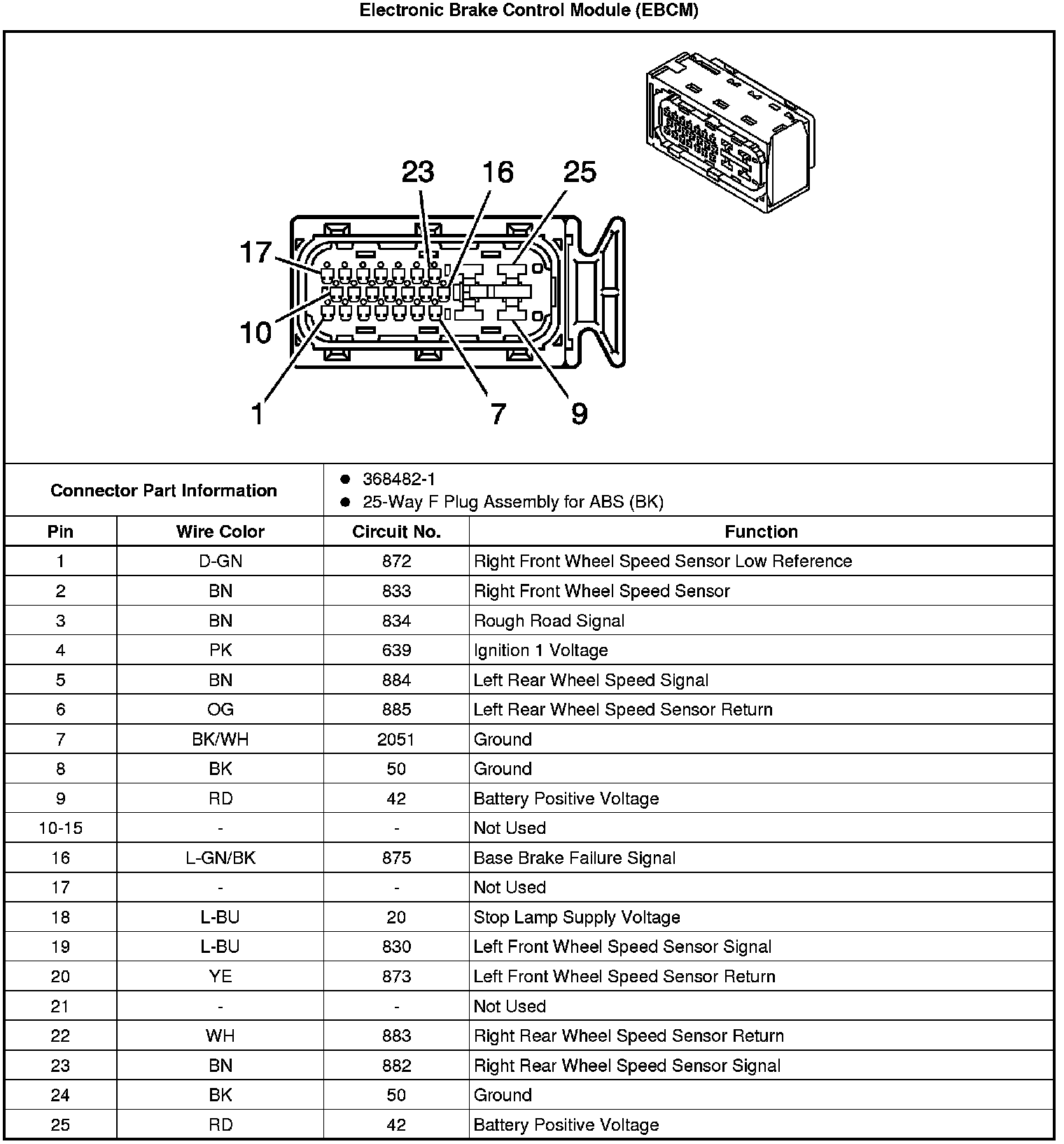

Antilock Brake System Connector End Views (Notchback)



Antilock Brake System Connector End Views (Notchback)
