Drive Belt: Service and Repair

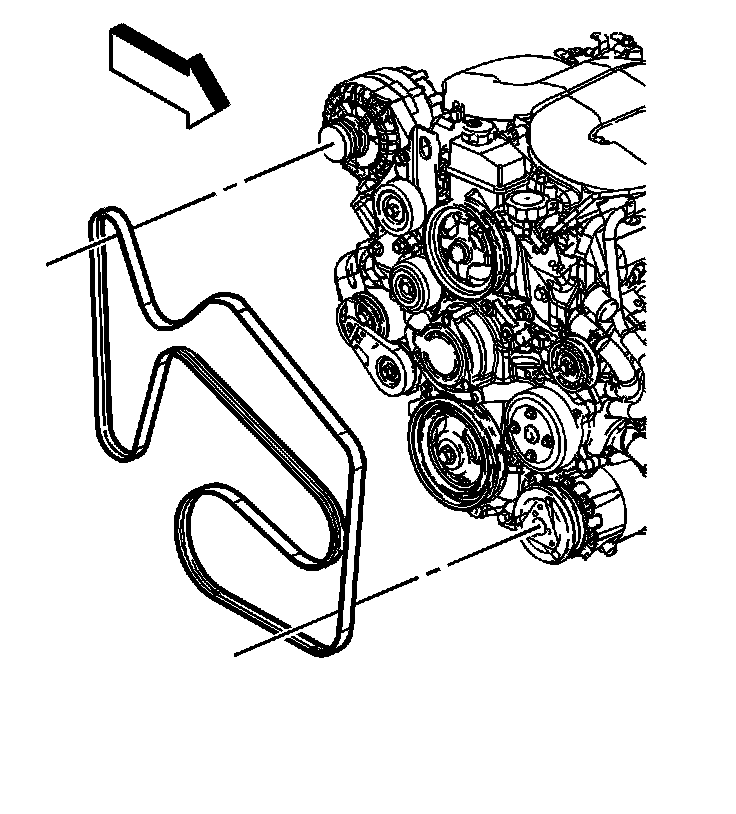

Drive Belt Replacement

Removal Procedure




1. Rotate the drive belt tensioner clockwise in order to release the tensioner spring tension.
2. Remove the drive belt.

Installation Procedure




1. Rotate the drive belt tensioner clockwise in order to release the tensioner spring tension.
2. Install the drive belt.
