Engine General Specifications & Service Limits



Engine Mechanical Specifications

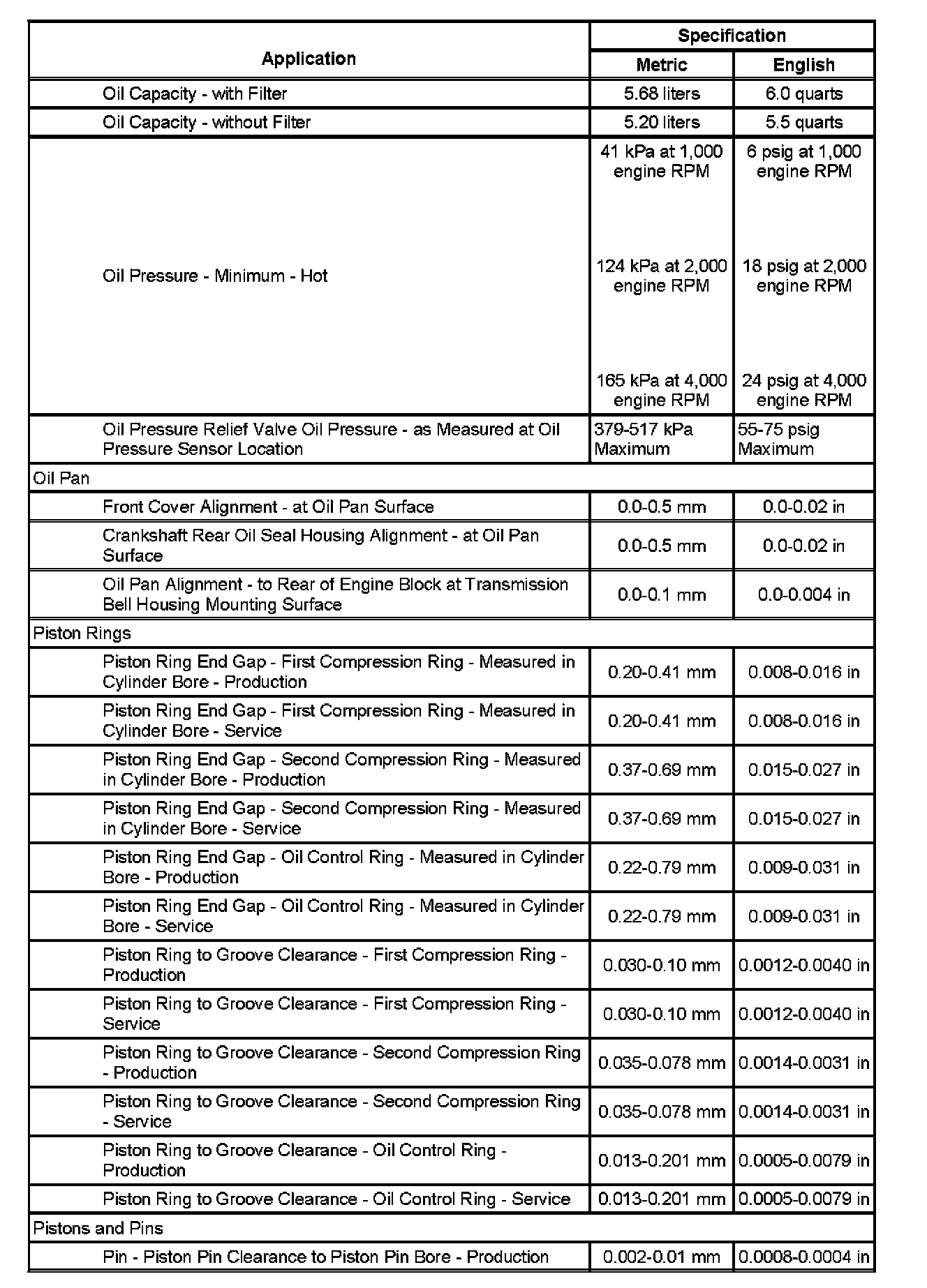

Engine Mechanical Specifications:

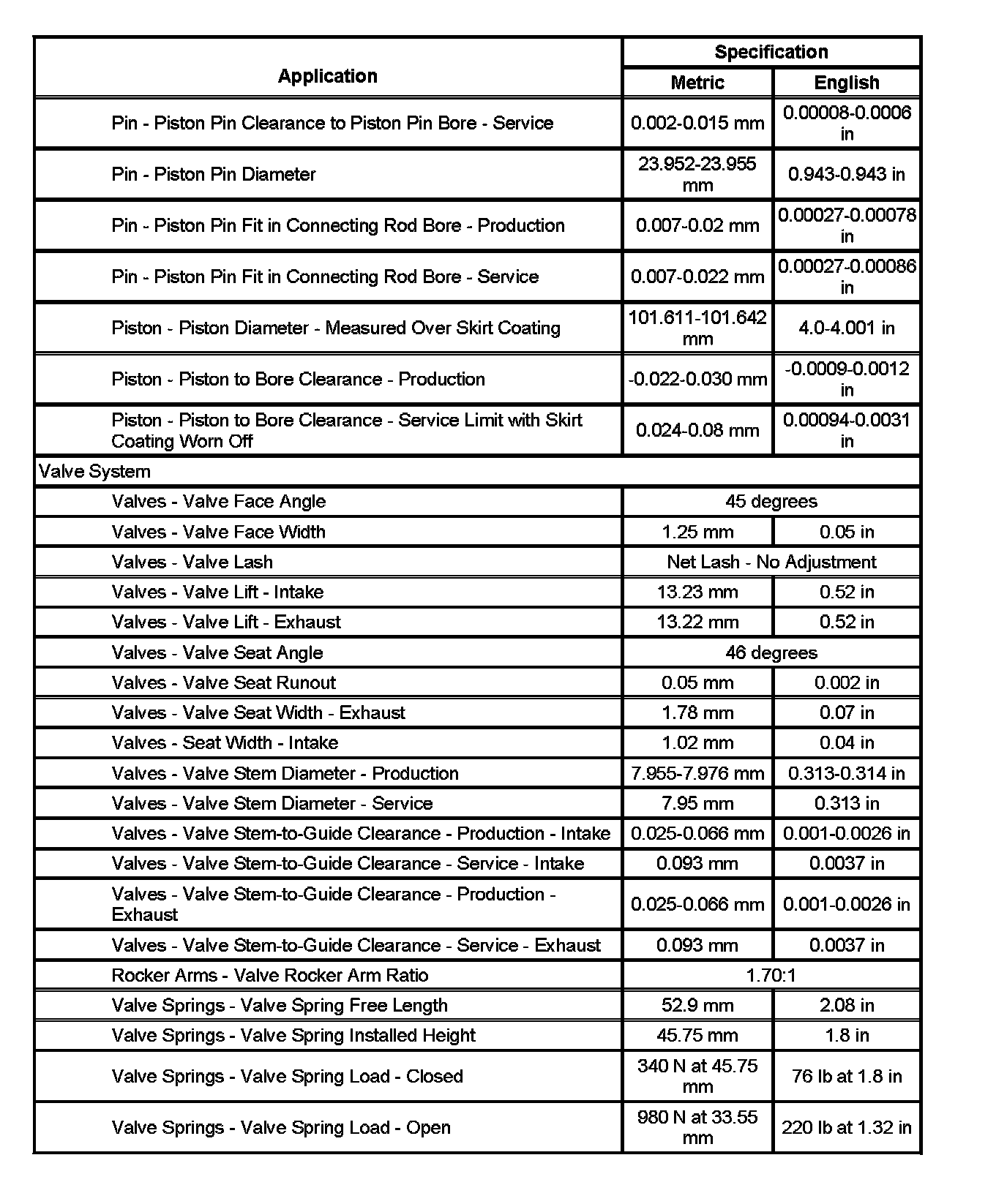

Engine Mechanical Specifications:

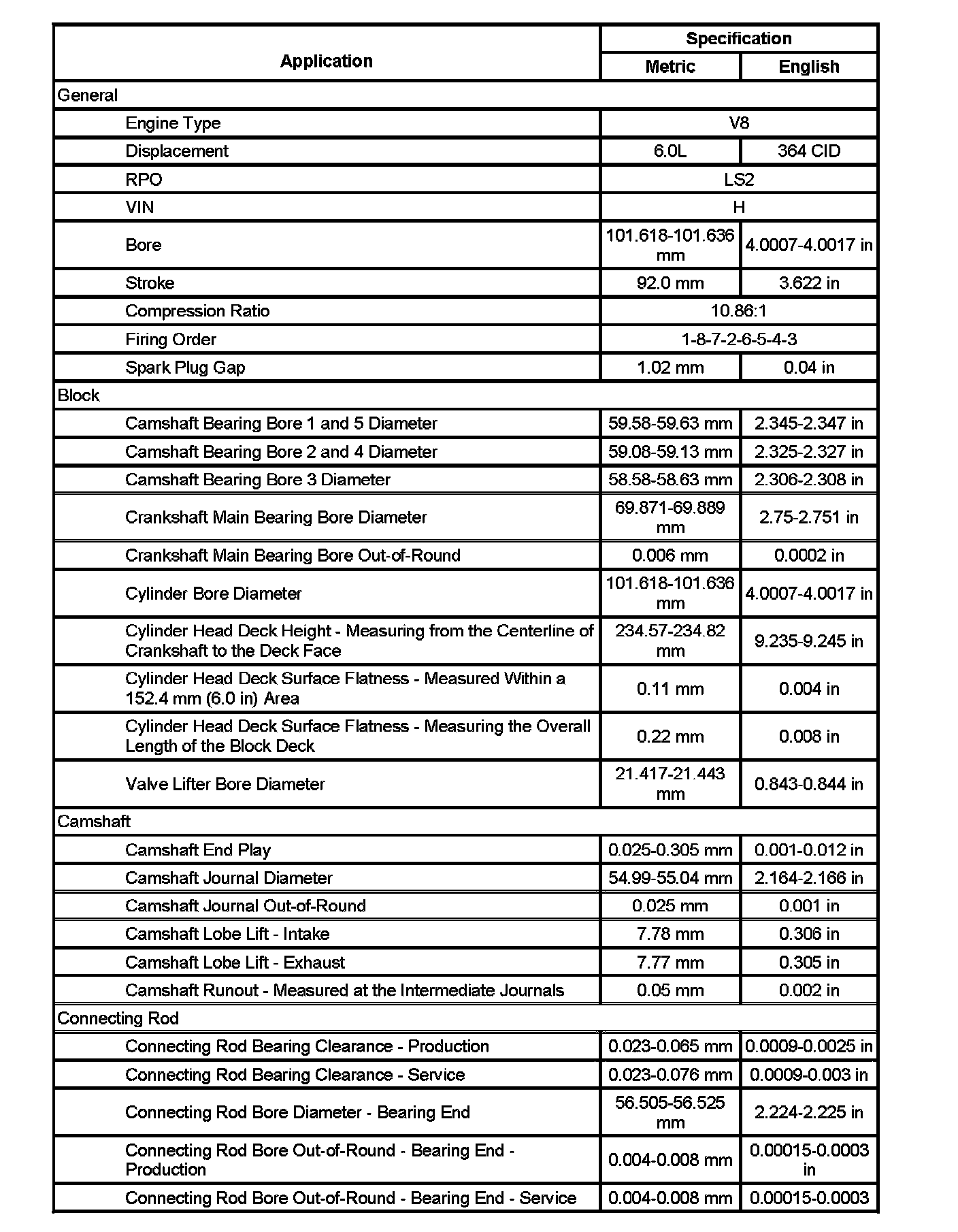

Engine Mechanical Specifications:

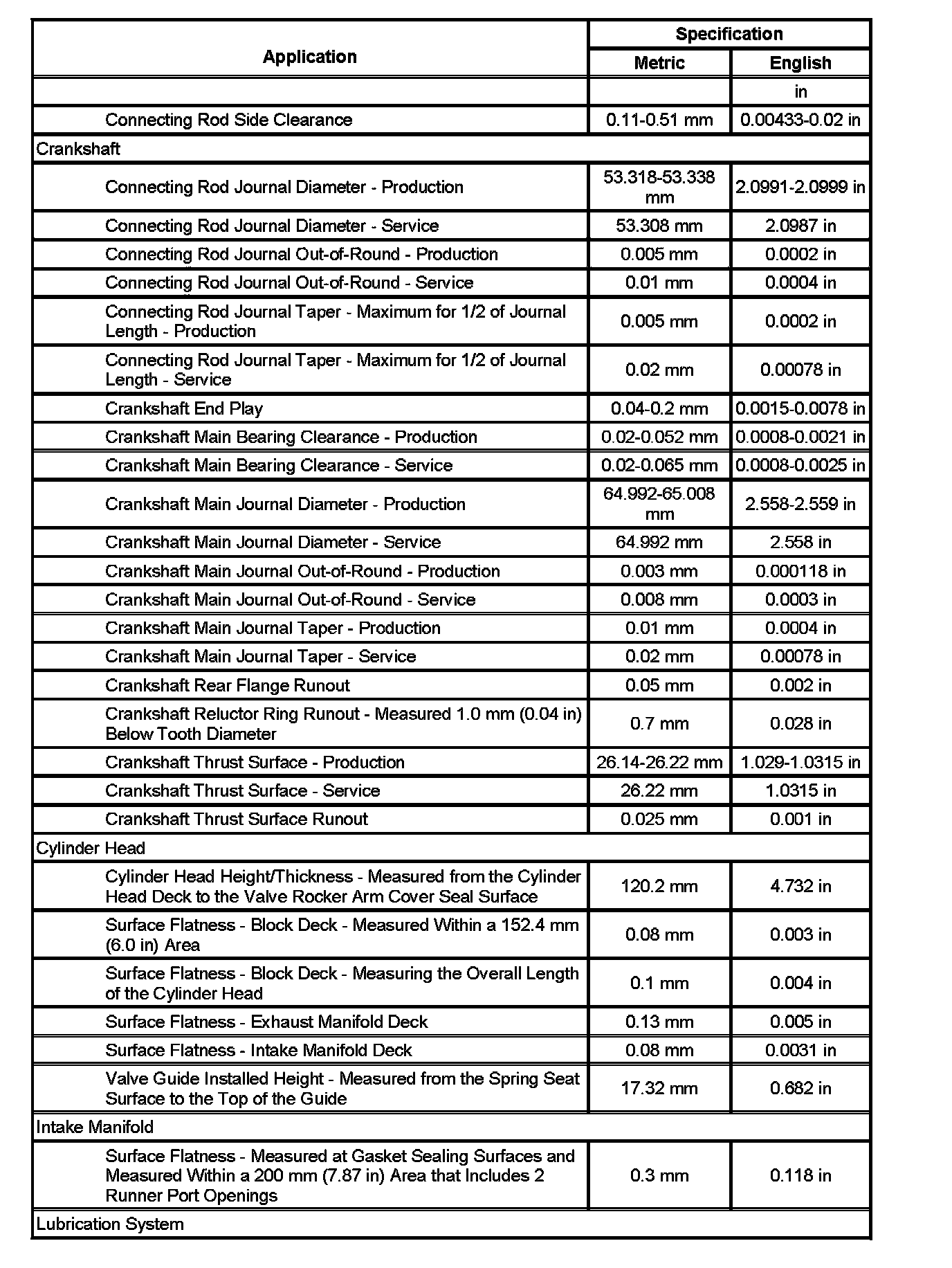

Engine Mechanical Specifications:
