Home >> Chevrolet >> 2007 >> TrailBlazer 2WD L6-4.2L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Locations

Power Window Switch: Locations

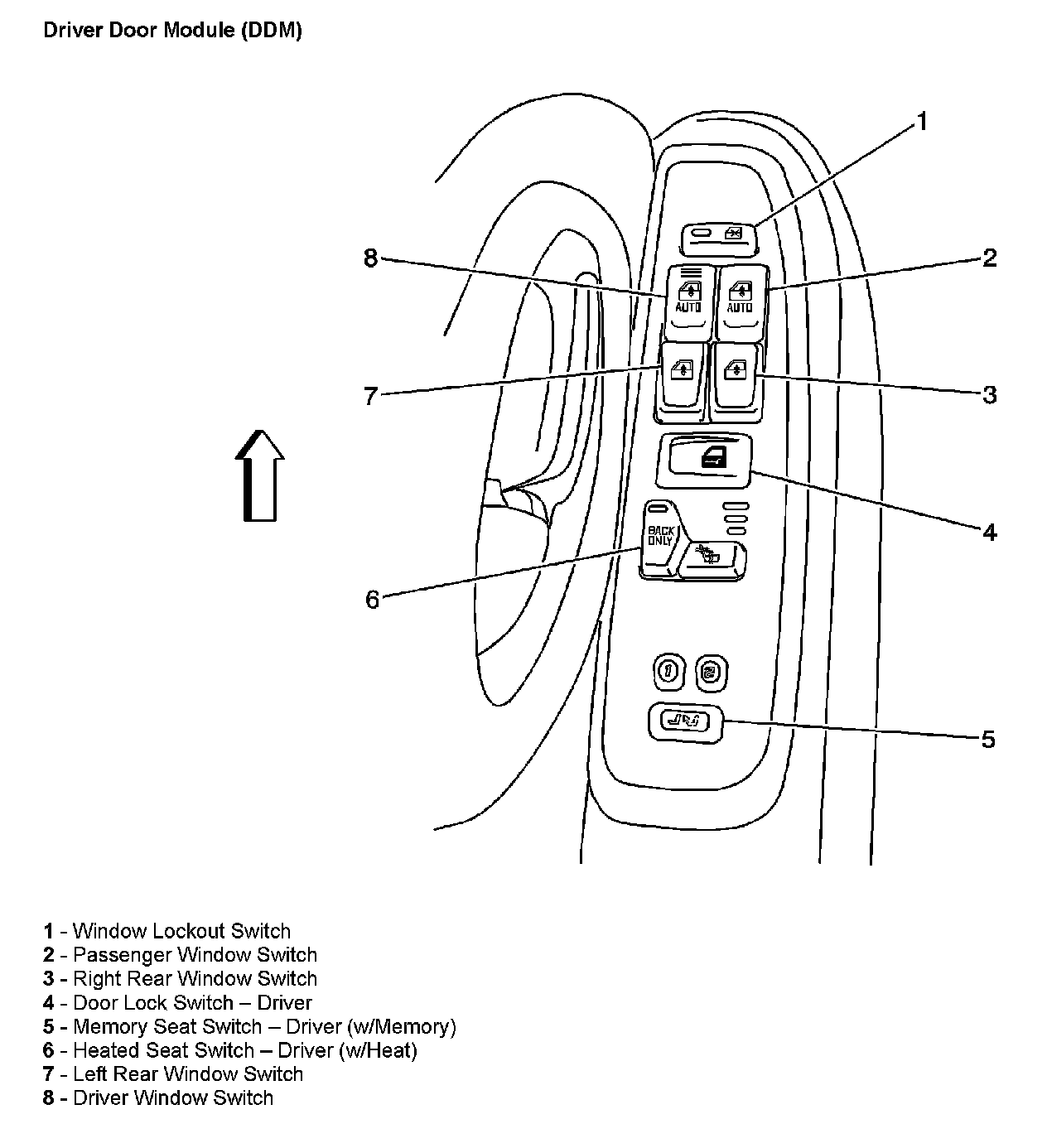

Driver Door Module (DDM):

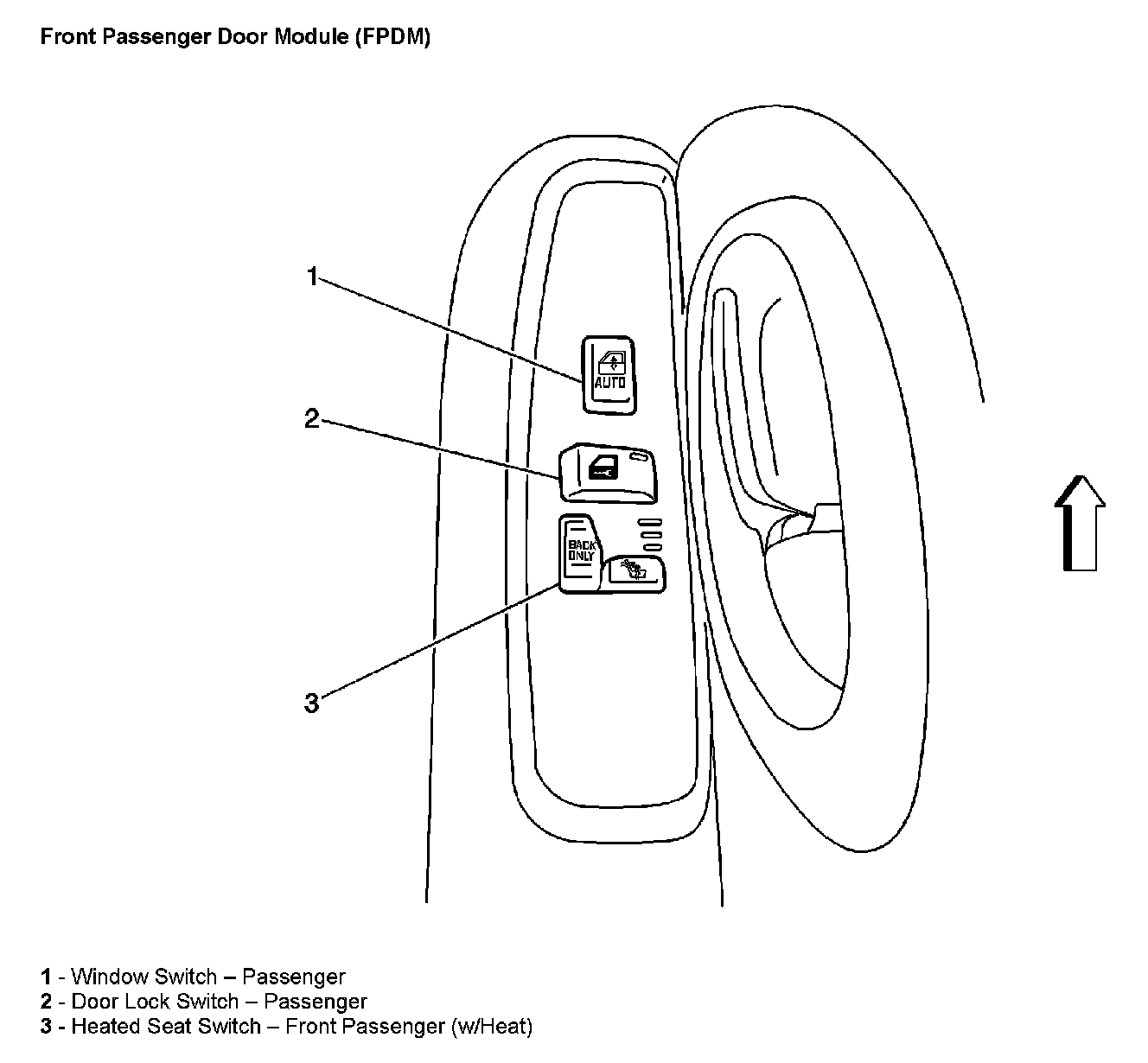

Front Passenger Door Module (FPDM):



Window Switch - LR:



Window Switch - RR:
