Engine Compartment Views
Engine Compartment Views

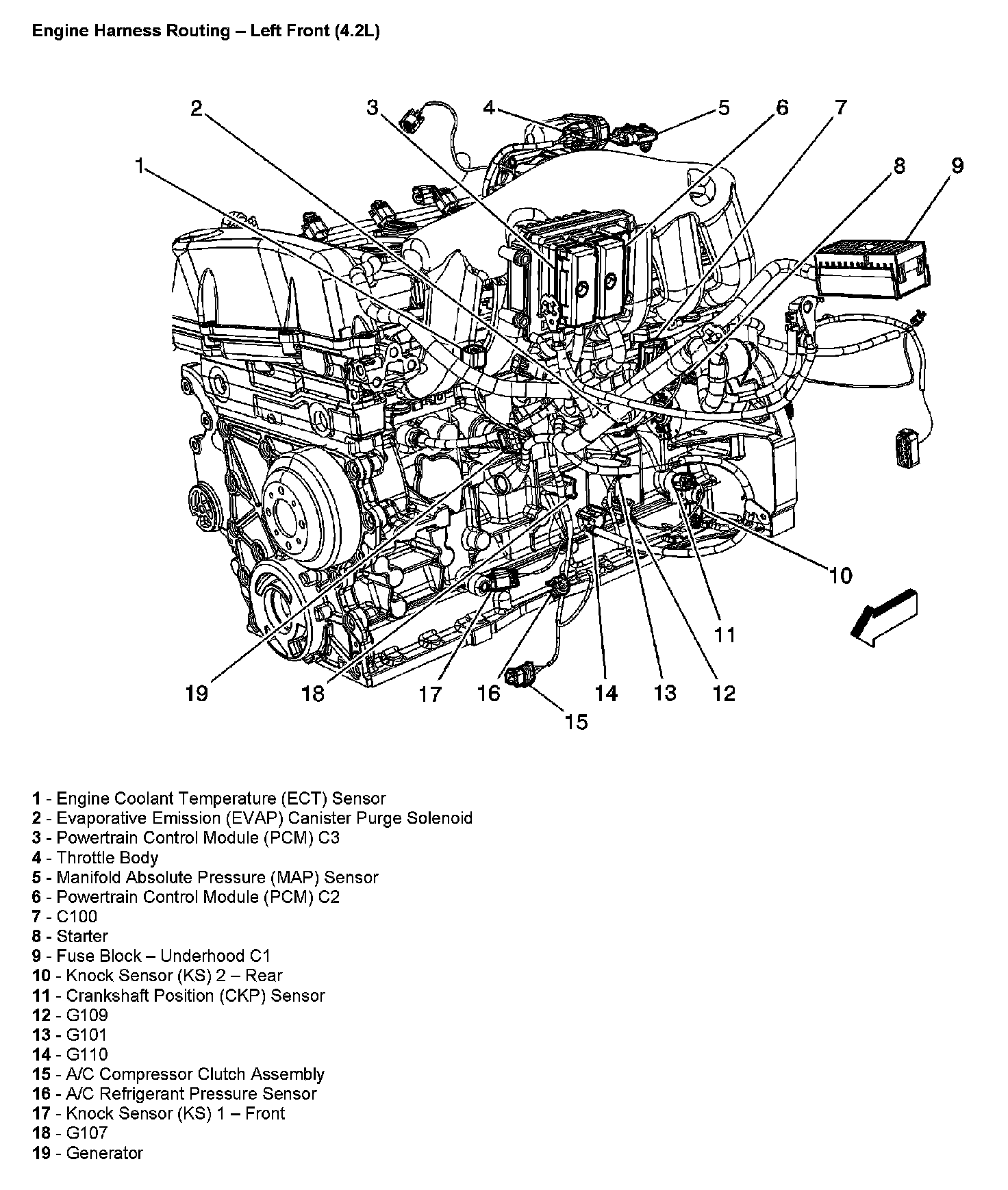

Engine Harness Routing - Left Front (4.2L):

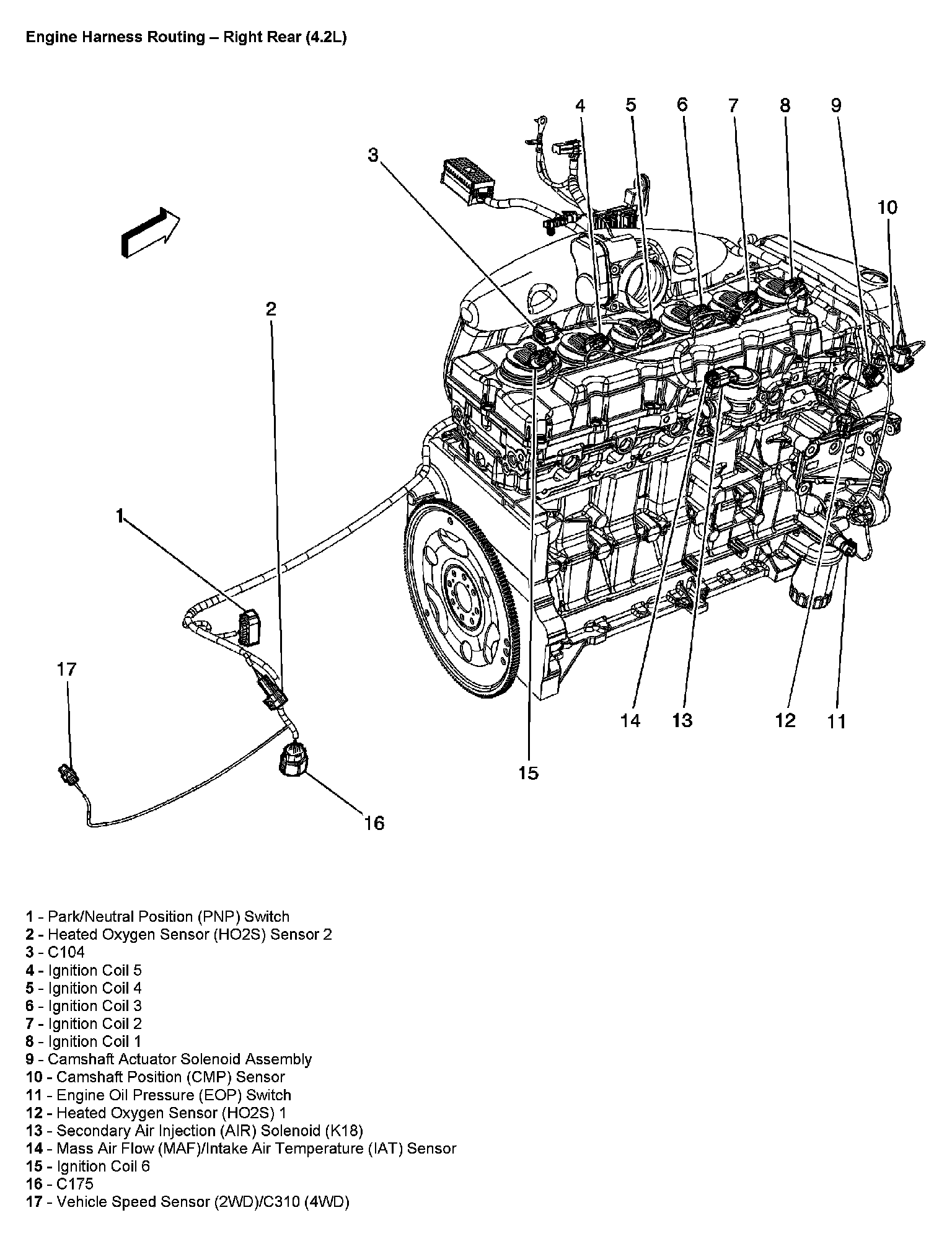

Engine Harness Routing - Right Rear (4.2L):
