Home >> Chevrolet >> 2007 >> TrailBlazer 2WD L6-4.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Diagrams >> HVAC - Manual

HVAC - Manual



HVAC Connector End Views

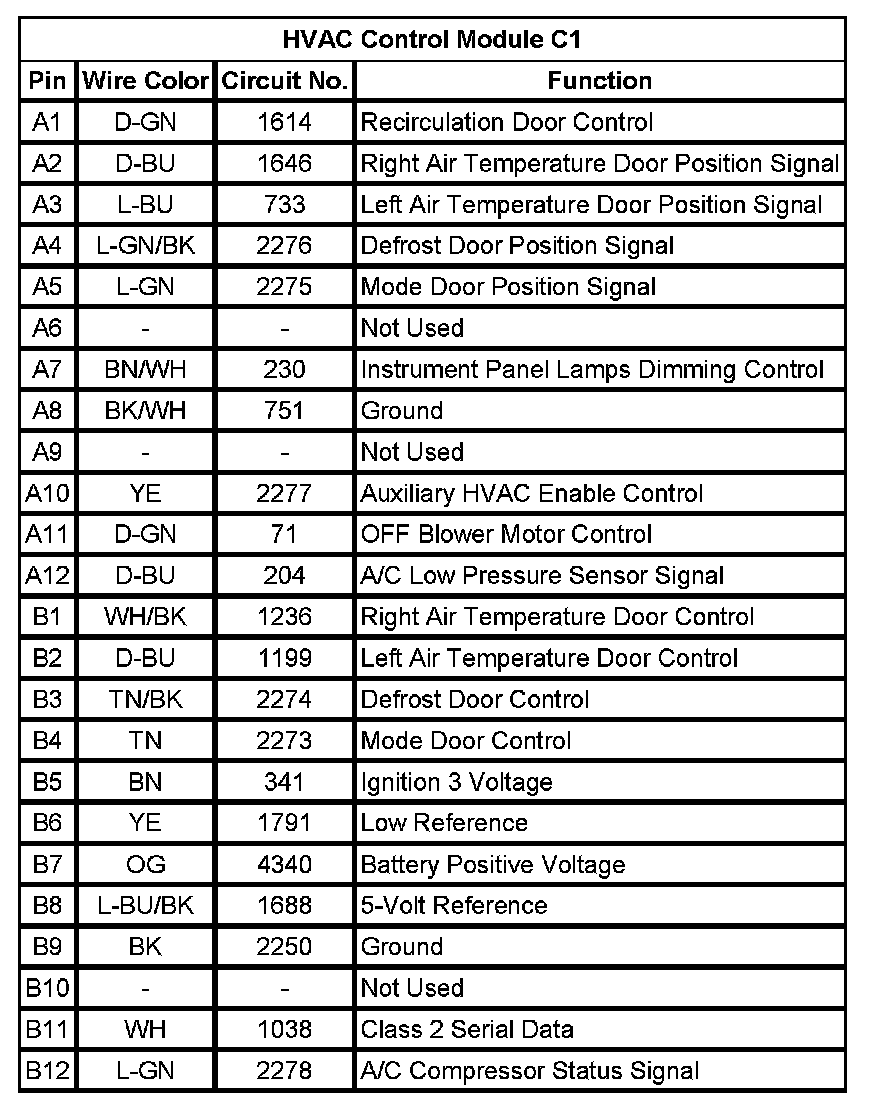

HVAC Control Module C1














HVAC Control Module C2














HVAC Control Module - Auxiliary

Steering Wheel Speed/Position Sensor:
