Home >> Chevrolet >> 2007 >> TrailBlazer 2WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Washer Fluid Level Switch

Washer Fluid Level Switch

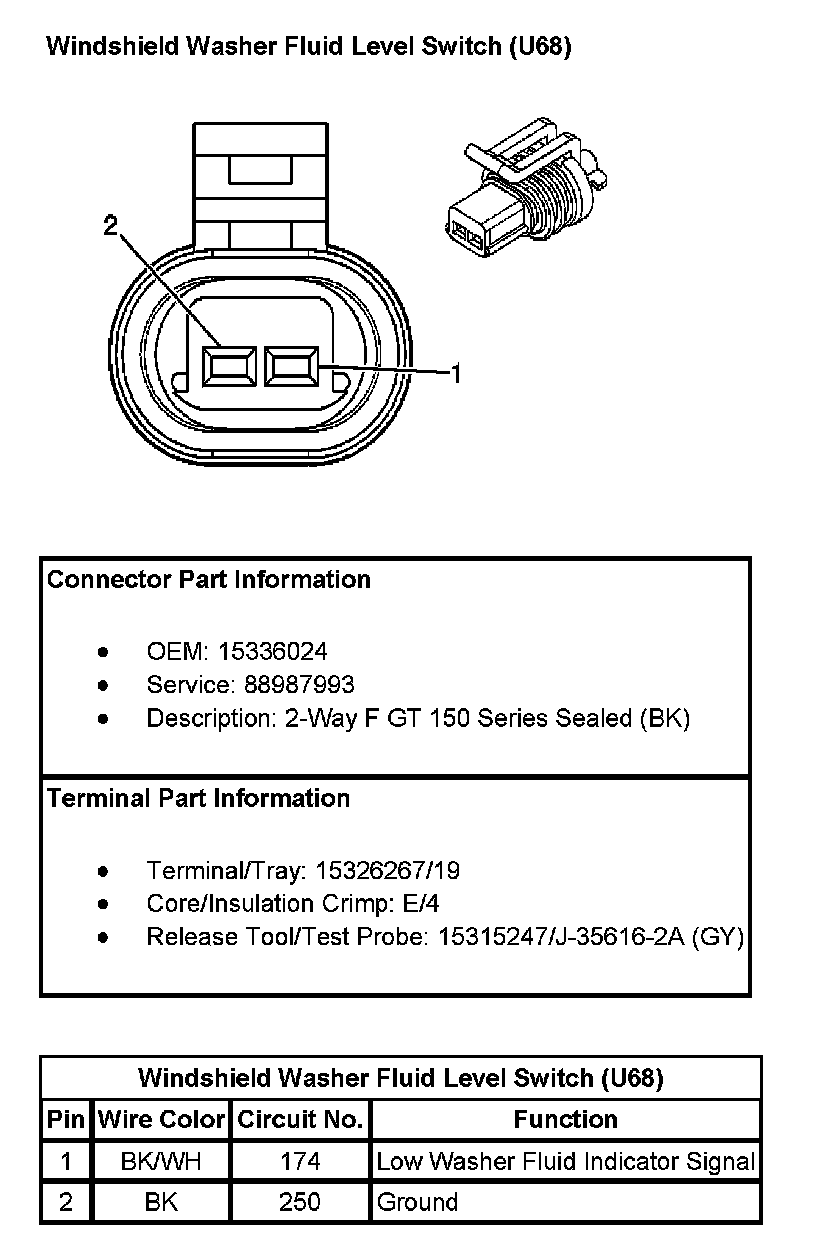

Windshield Washer Fluid Level Switch (With RPO Code U68):
