Home >> Chevrolet >> 2007 >> TrailBlazer 2WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch

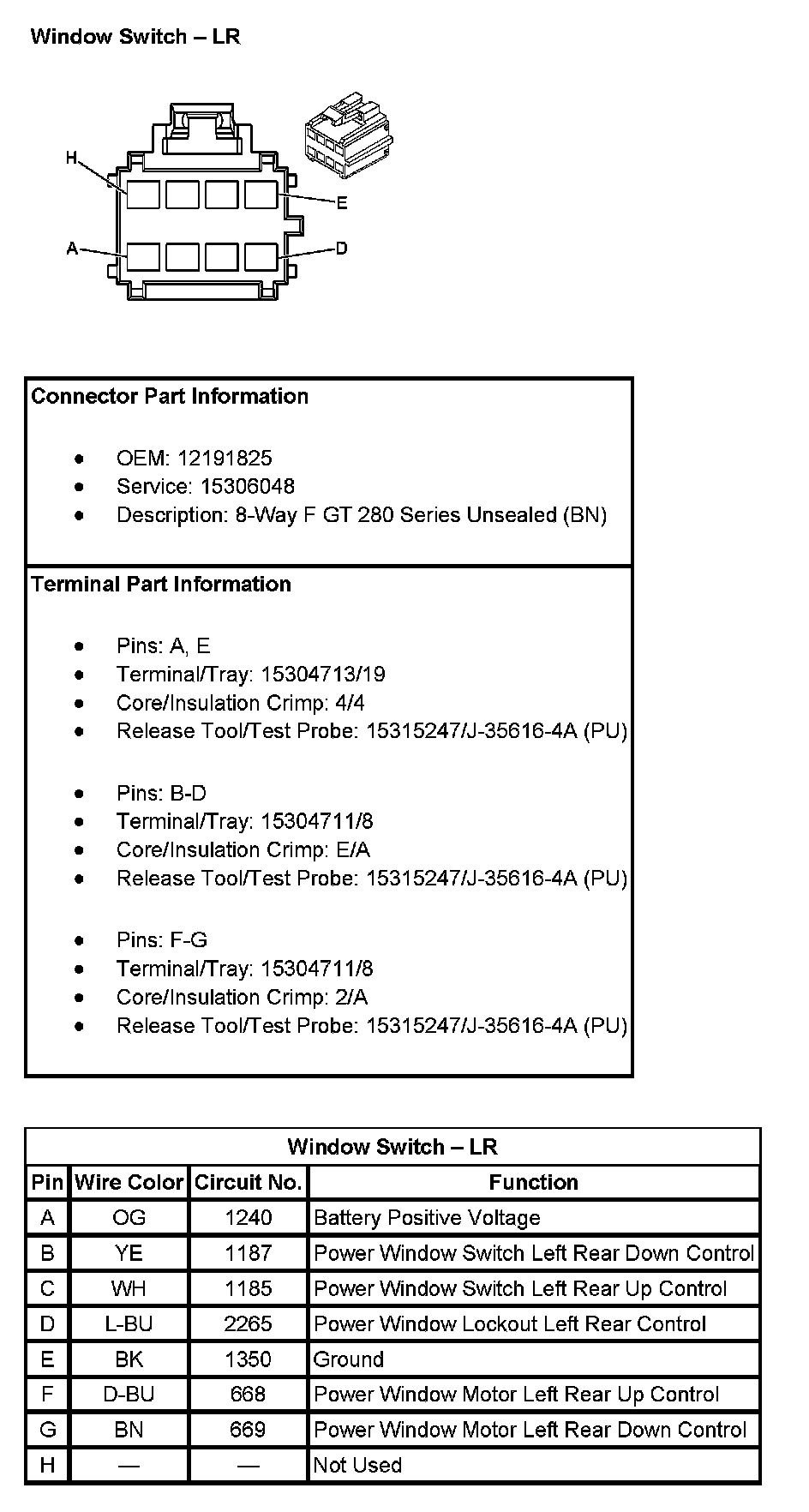

Window Switch - LR:



Window Switch - RR:
