Combination Switch
Combination Switch

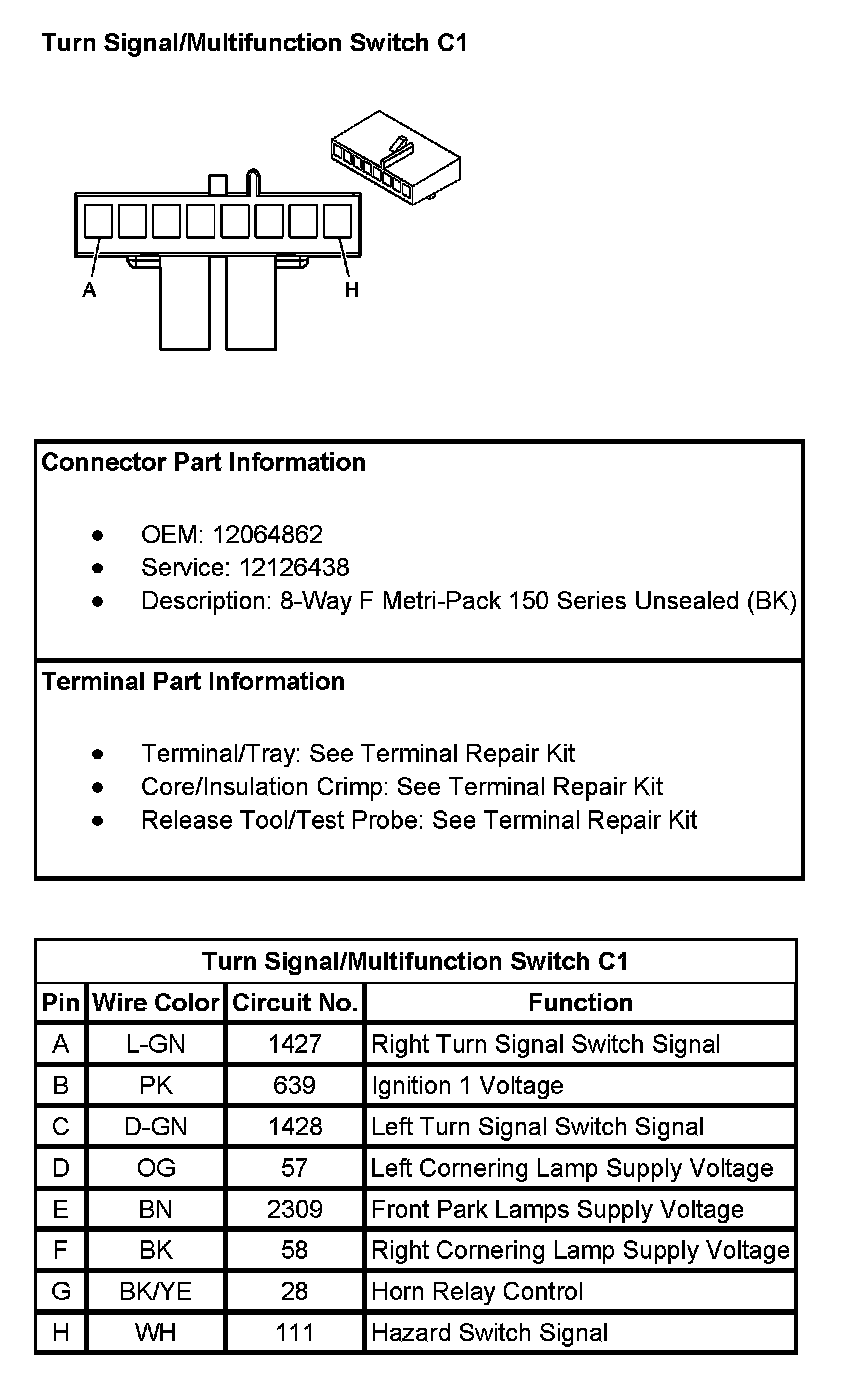

Turn Signal/Multifunction Switch C1:
Turn Signal/Multifunction Switch C2:
Turn Signal/Multifunction Switch C3:

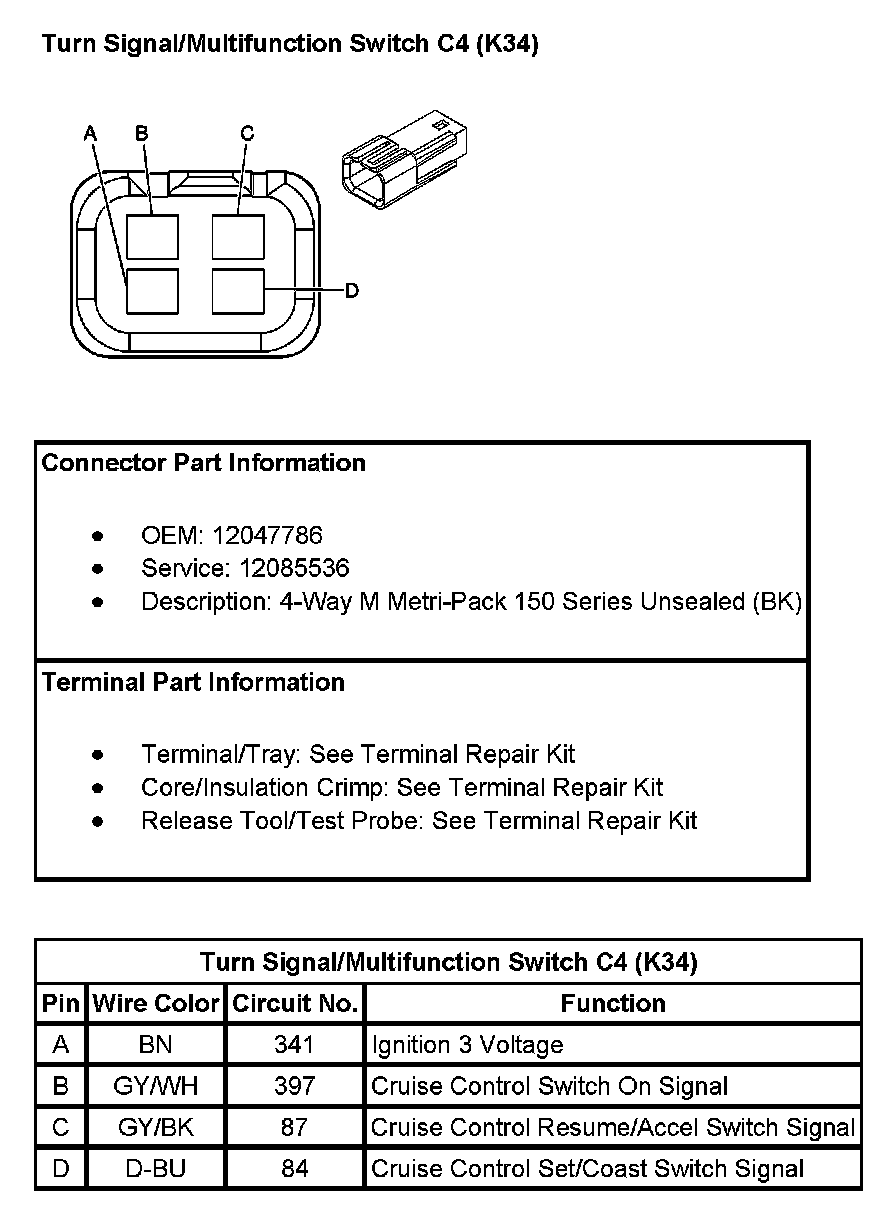

Turn Signal/Multifunction Switch C4 (With RPO Code K34):
