Electronic Brake Control Module
Antilock Brake System Connector End Views

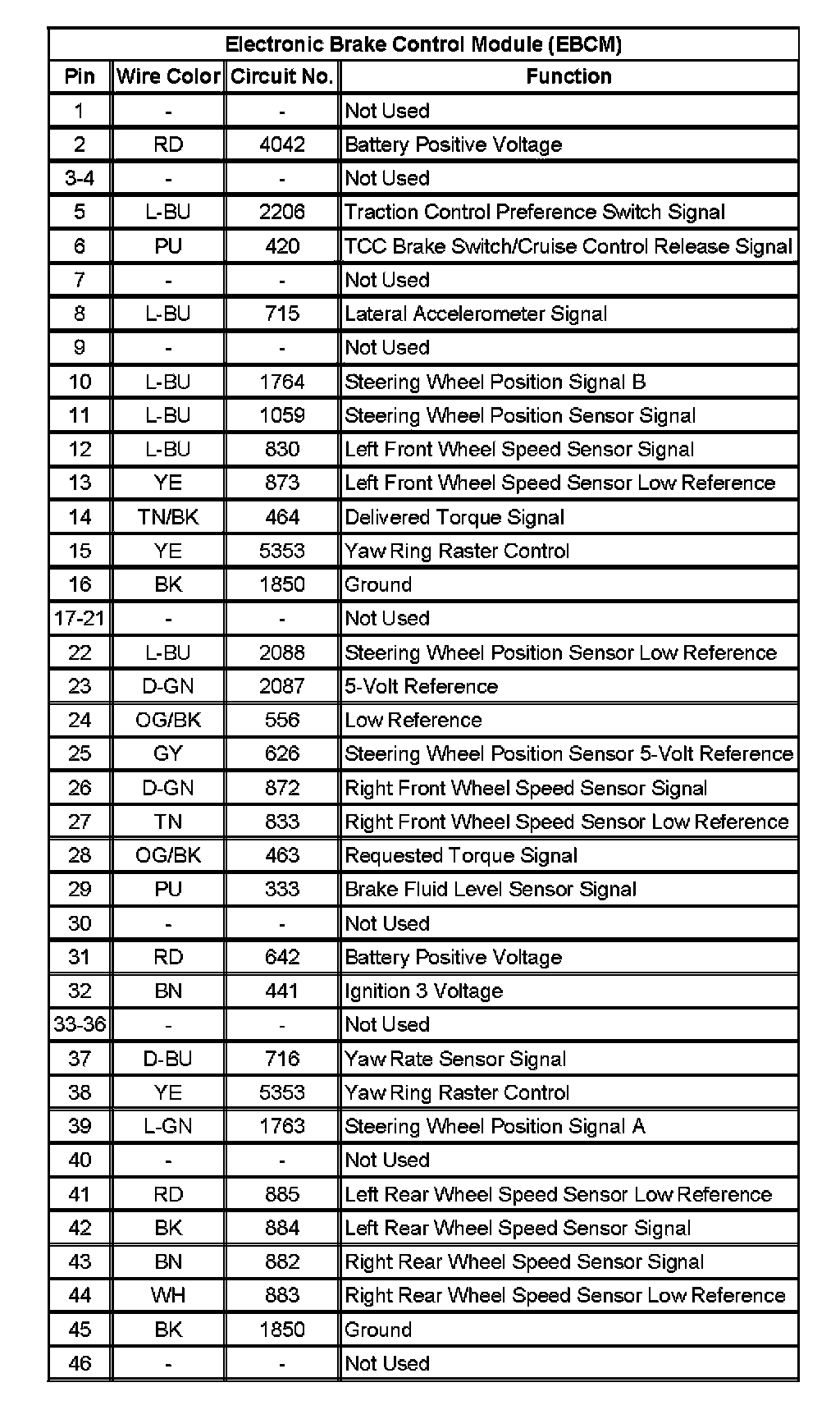

Electronic Brake Control Module (EBCM):
Electronic Brake Control Module (EBCM):
