Home >> Chevrolet >> 2007 >> Suburban 2WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch

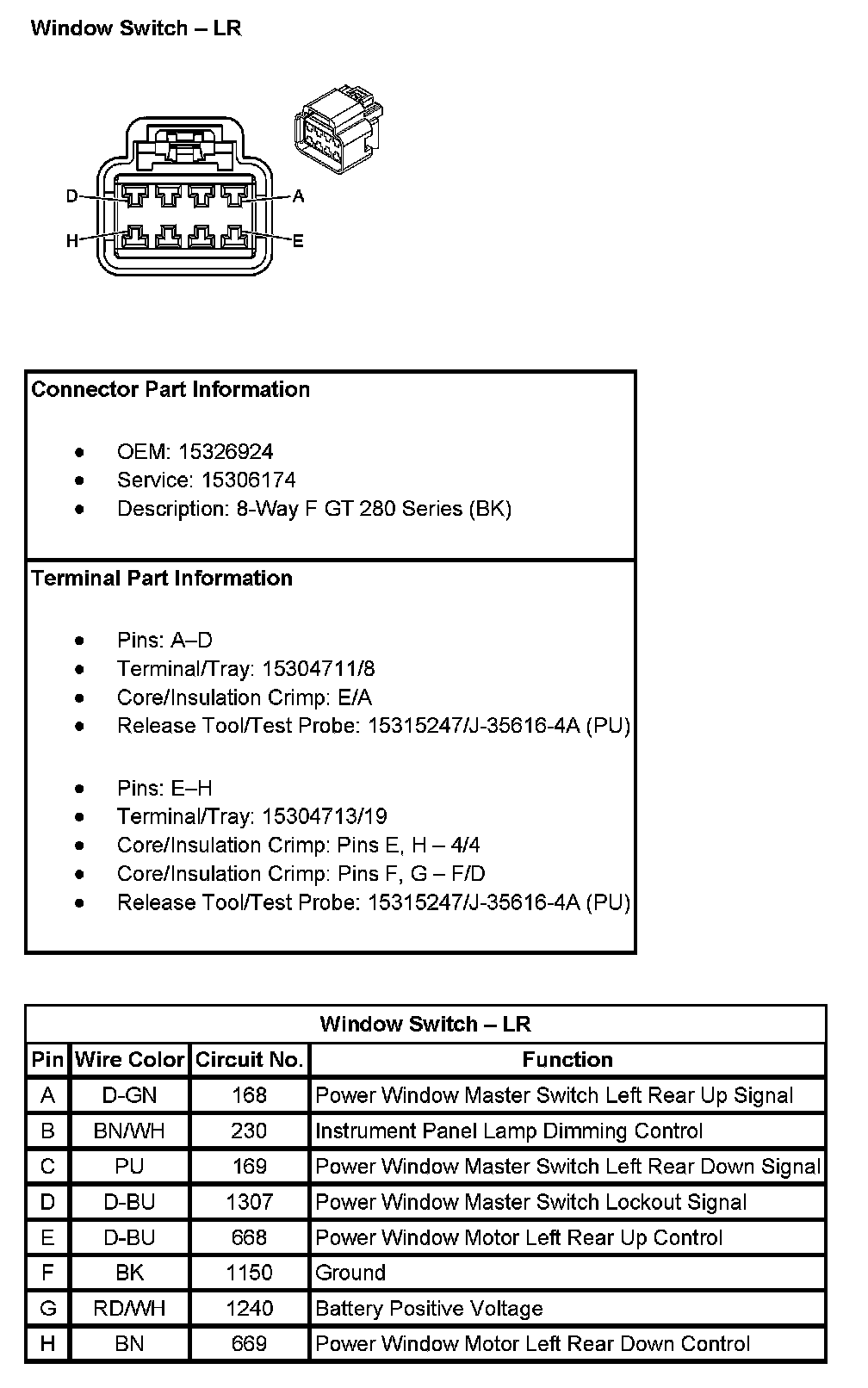

Window Switch - LR:

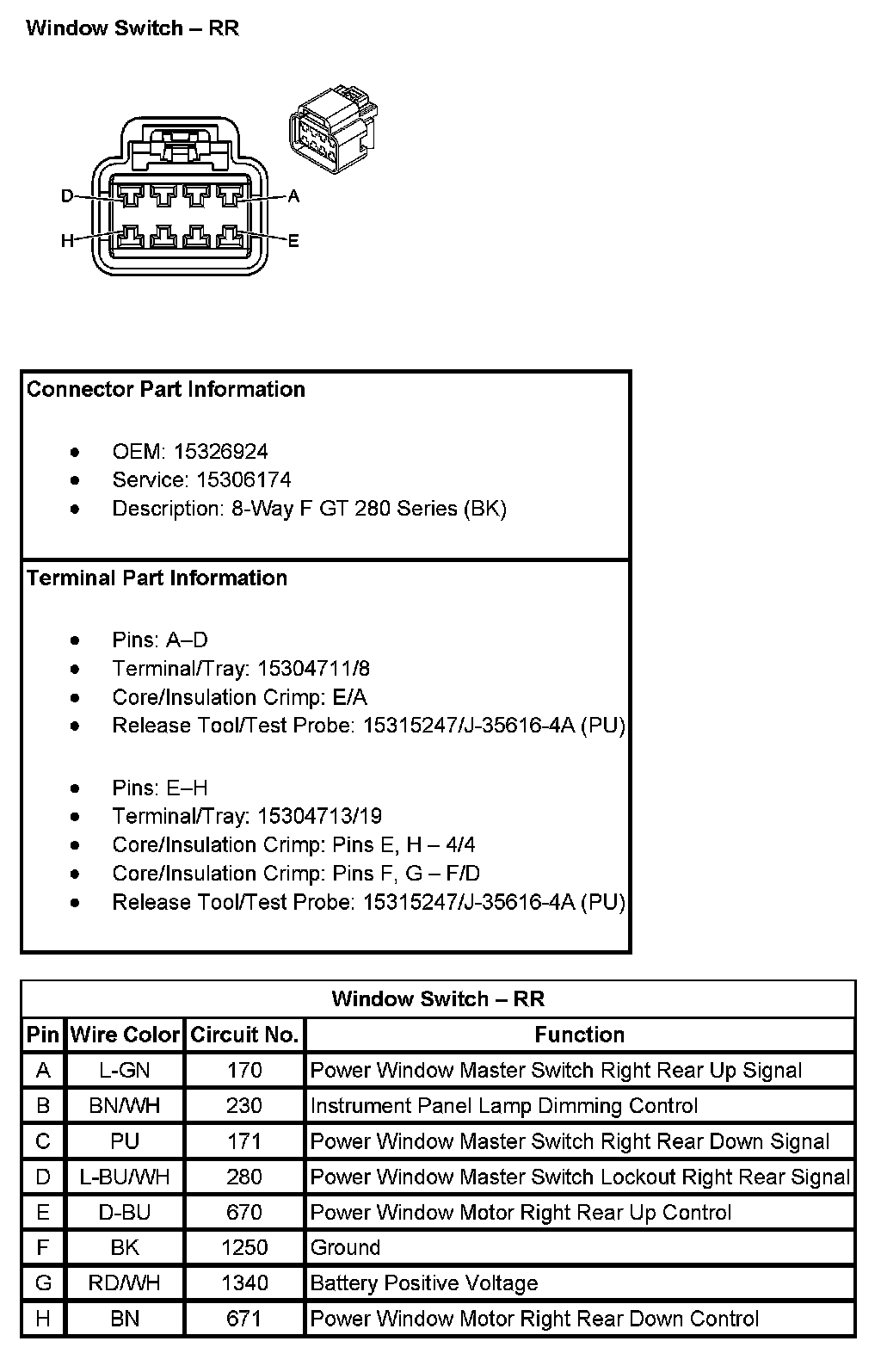

Window Switch - RR:
