Home >> Chevrolet >> 2007 >> Suburban 2WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Trunk / Liftgate Lock Switch

Power Trunk / Liftgate Lock Switch

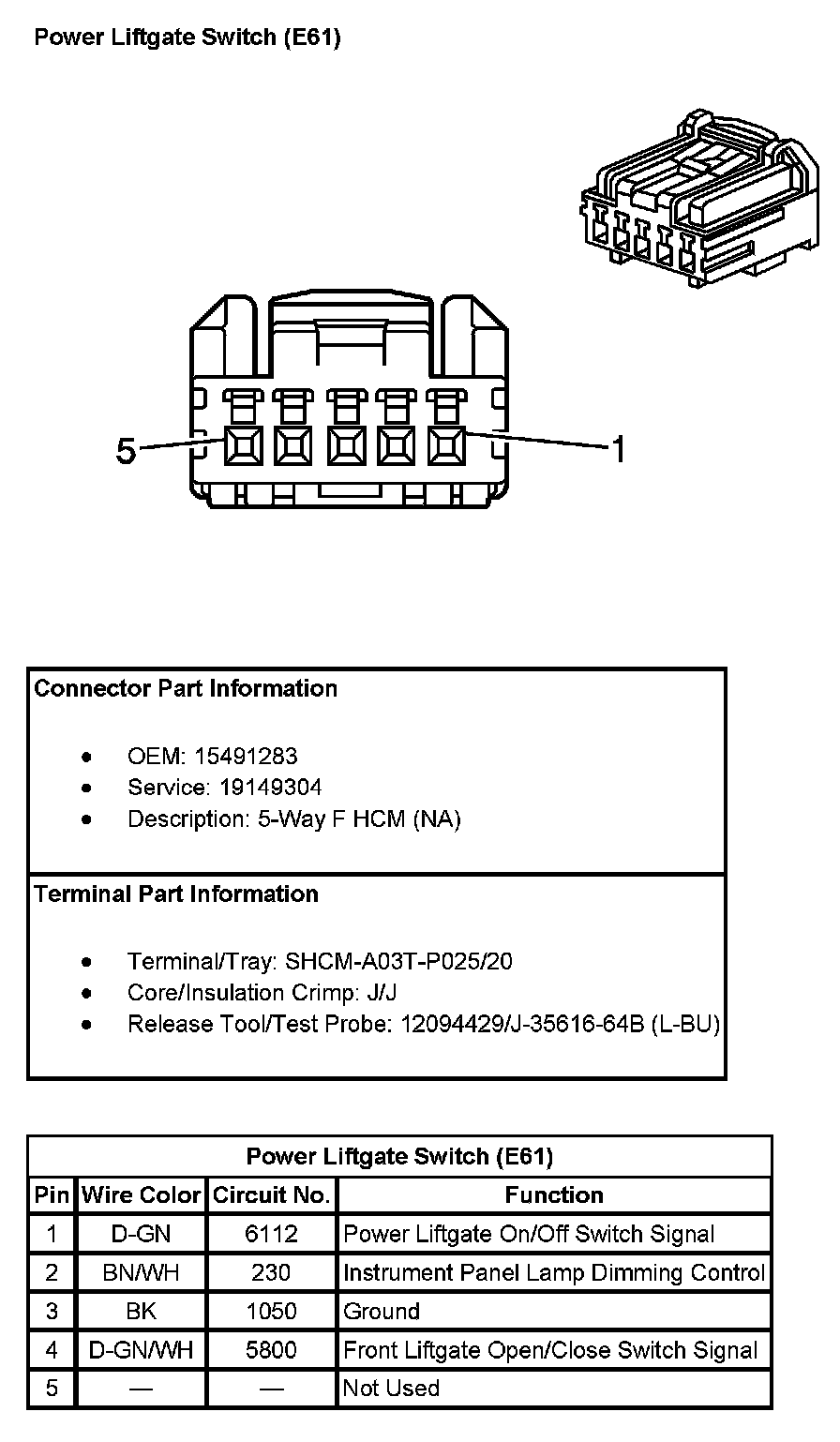

Power Liftgate Switch (With RPO Code E61):
