Fuel Tank Unit

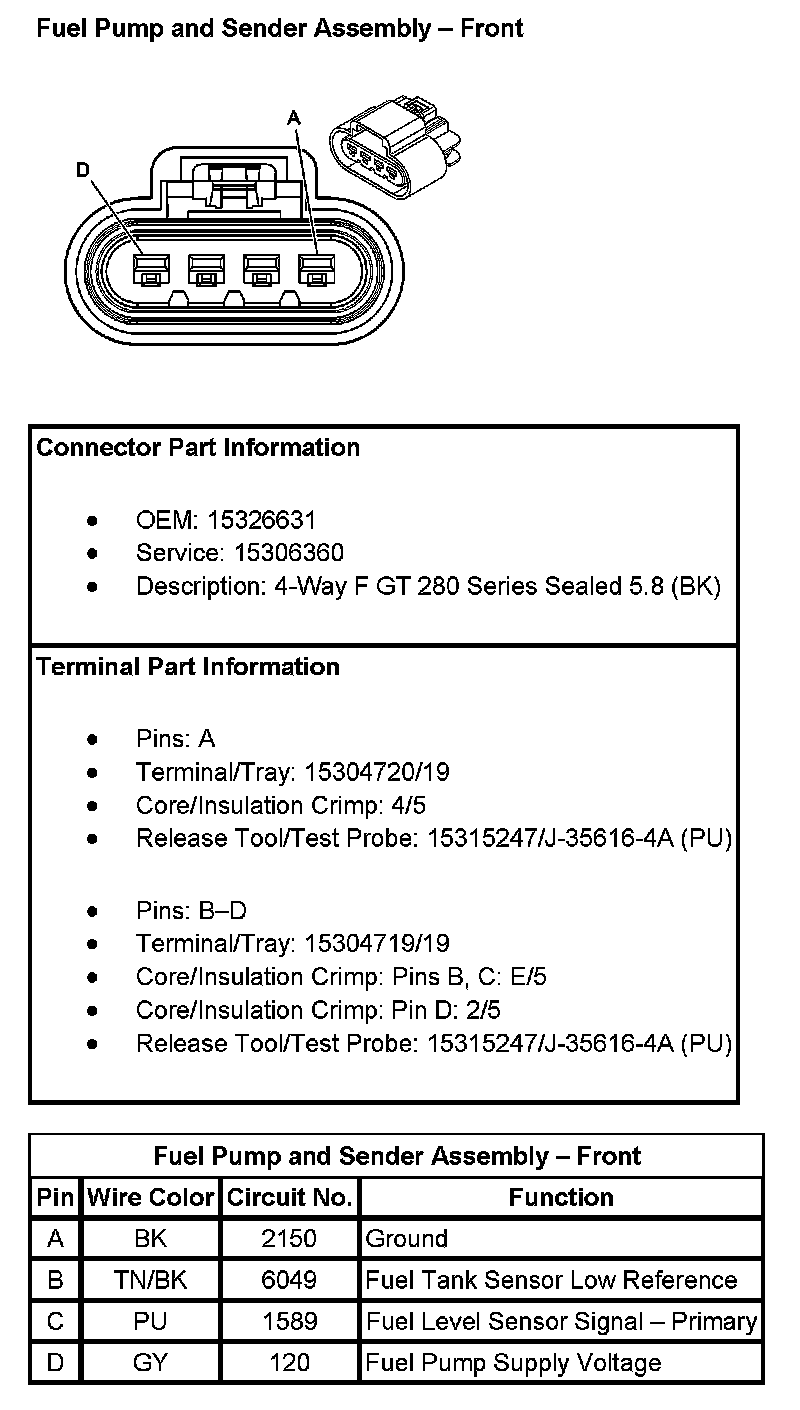

Fuel Pump And Sender Assembly - Front:

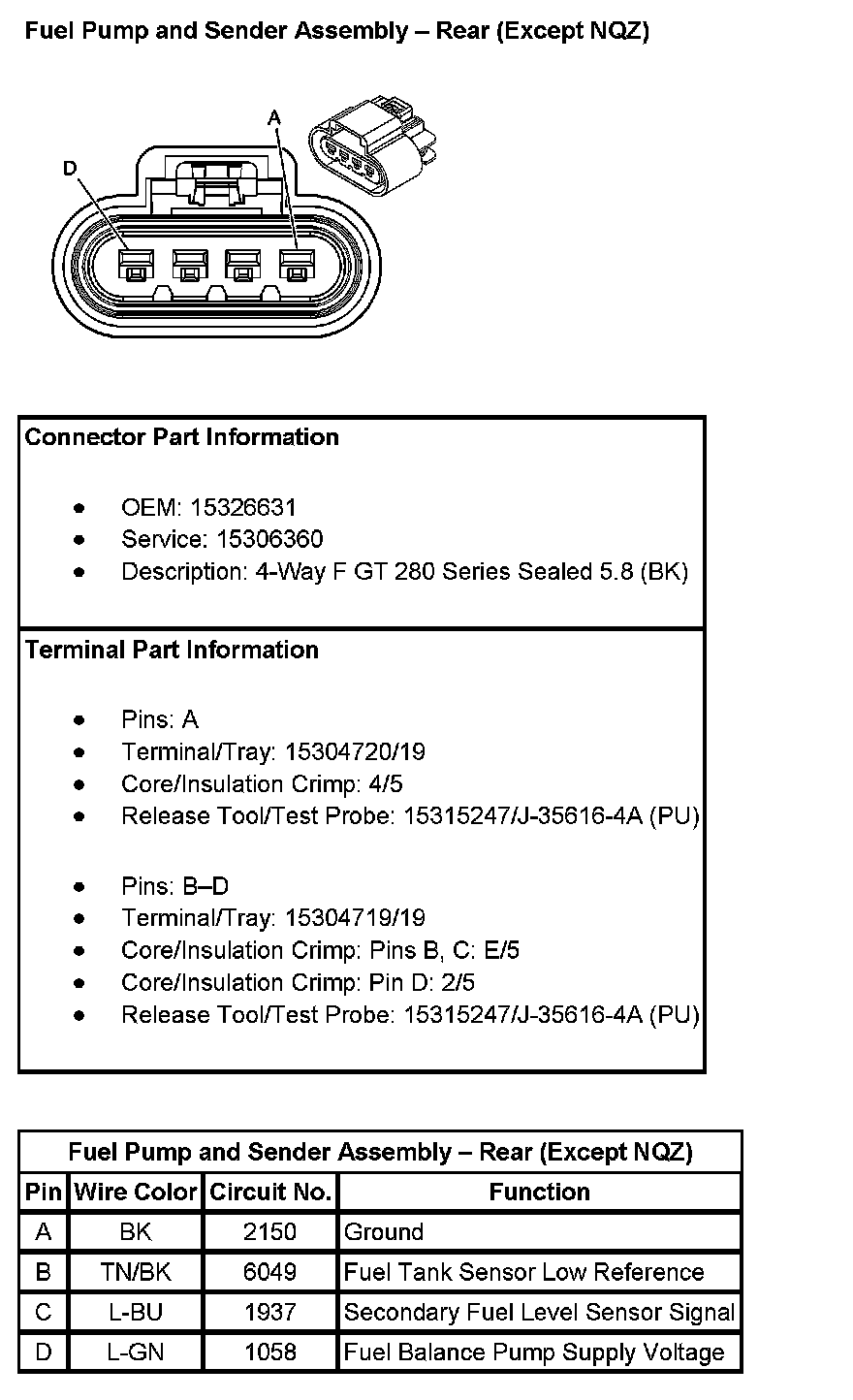

Fuel Pump And Sender Assembly - Rear (Except RPO Code NQZ):
