Home >> Chevrolet >> 2007 >> Silverado Classic SS V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Driver Door Module (DDM) - C4

Driver Door Module (DDM) - C4

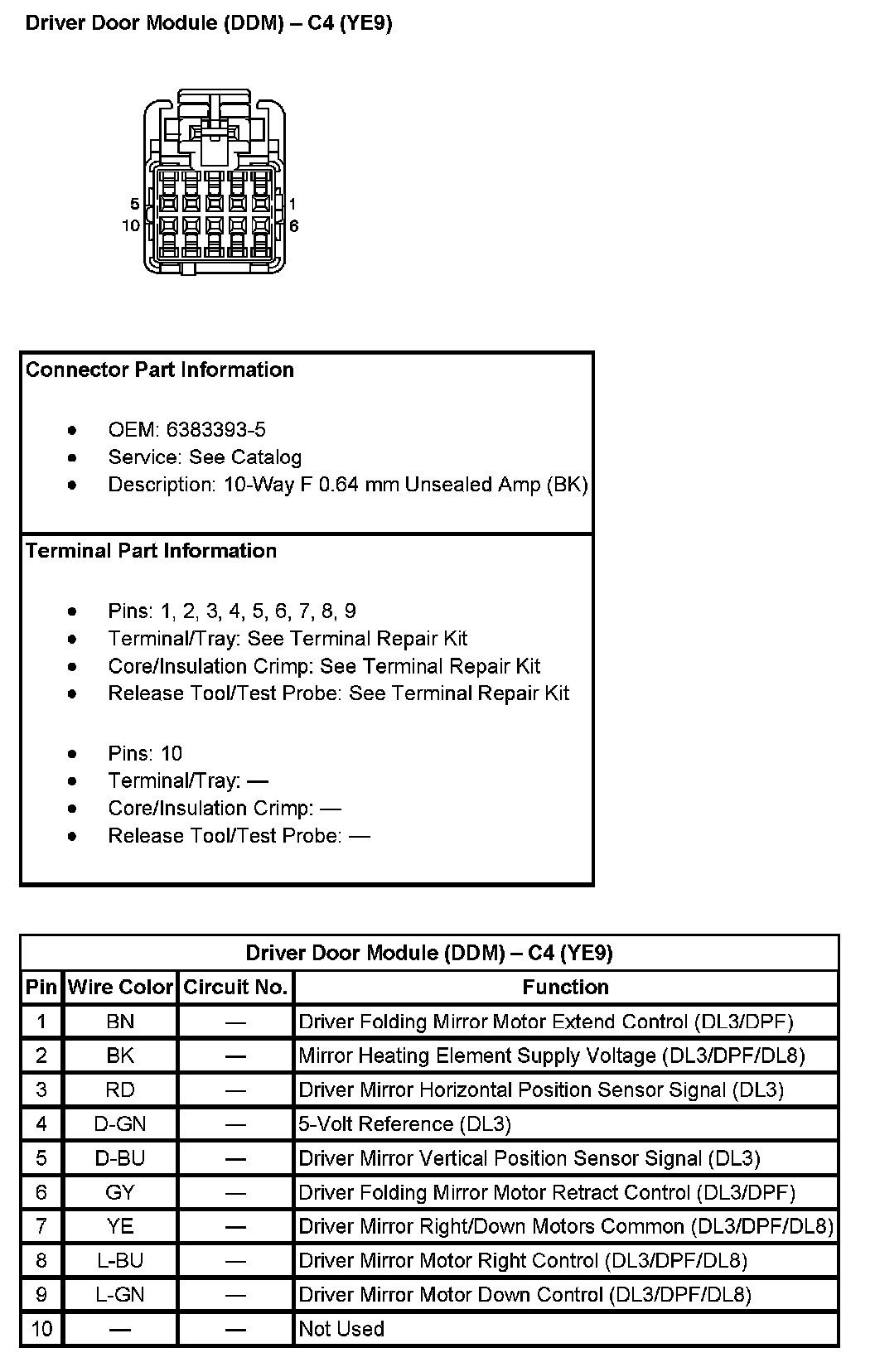

Driver Door Module (DDM) - C4 (With RPO Code YE9):
