Driver Door Module (DDM) - C2

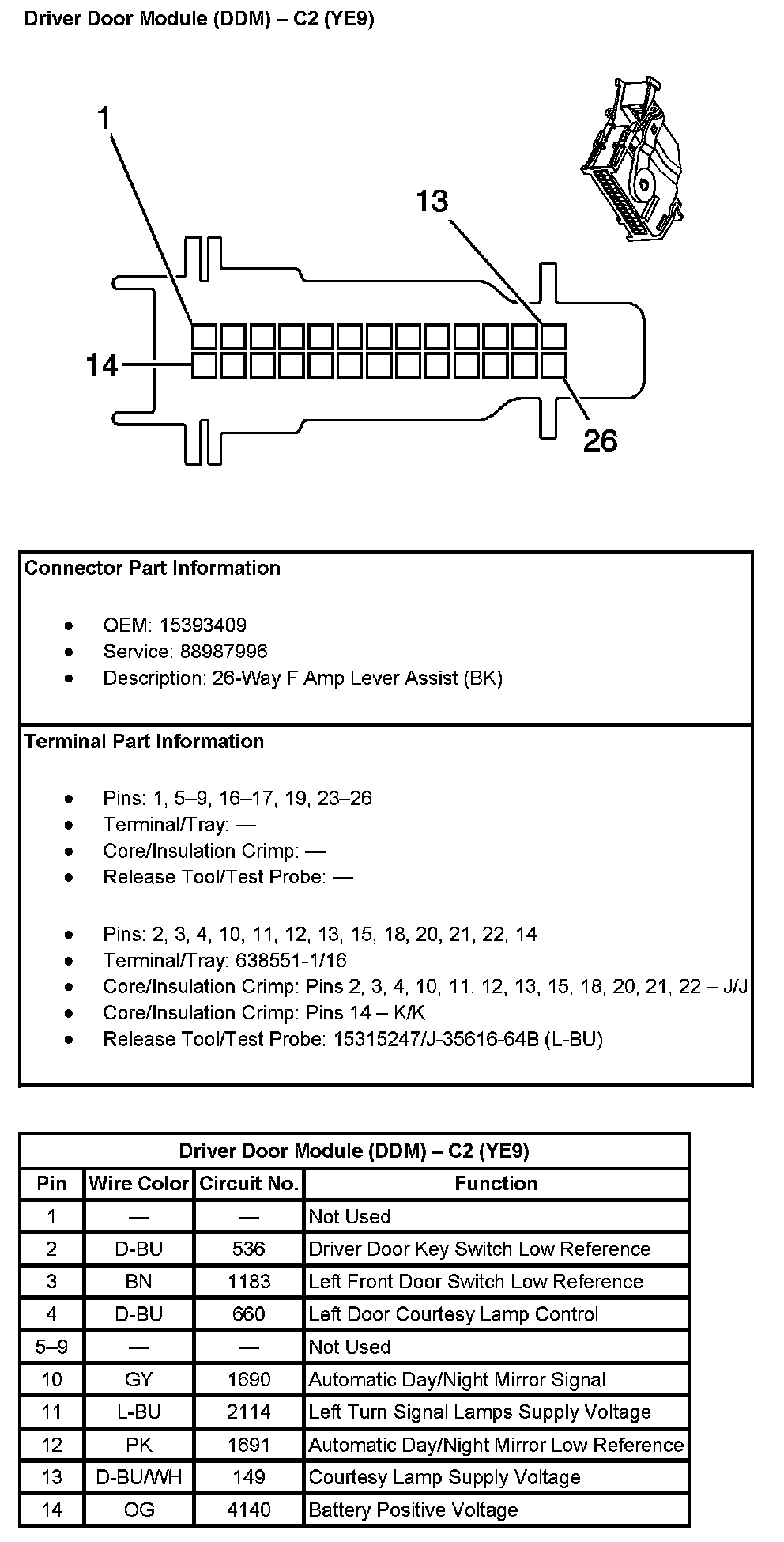

Driver Door Module (DDM) - C2 (With RPO Code YE9) (Pin 1 To 14):

Driver Door Module (DDM) - C2 (With RPO Code YE9) (Pin 15 To 26):
