Power Seat Control Module: Locations

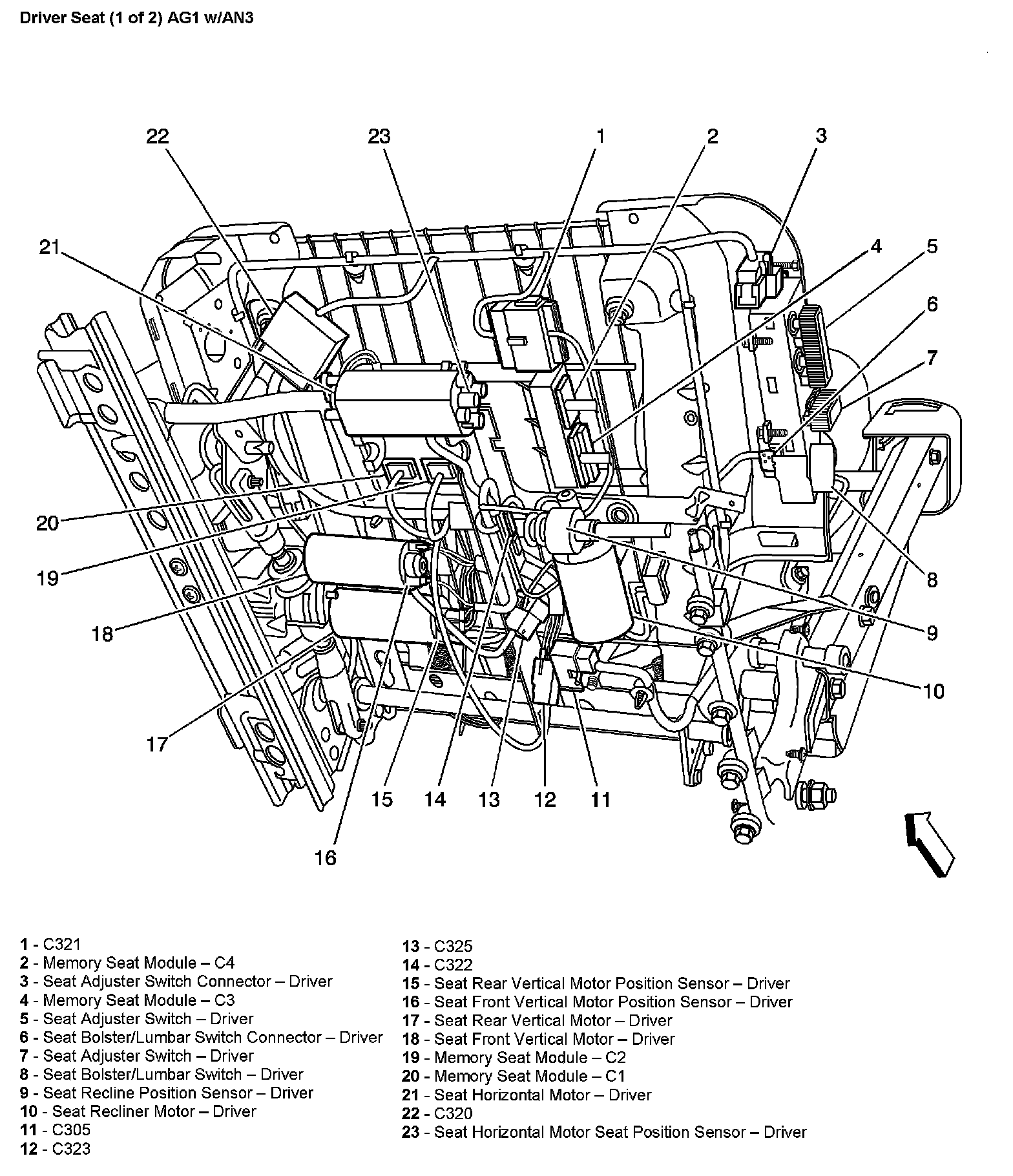

Driver Seat (1 Of 2) (With RPO Codes AG1 And AN3):

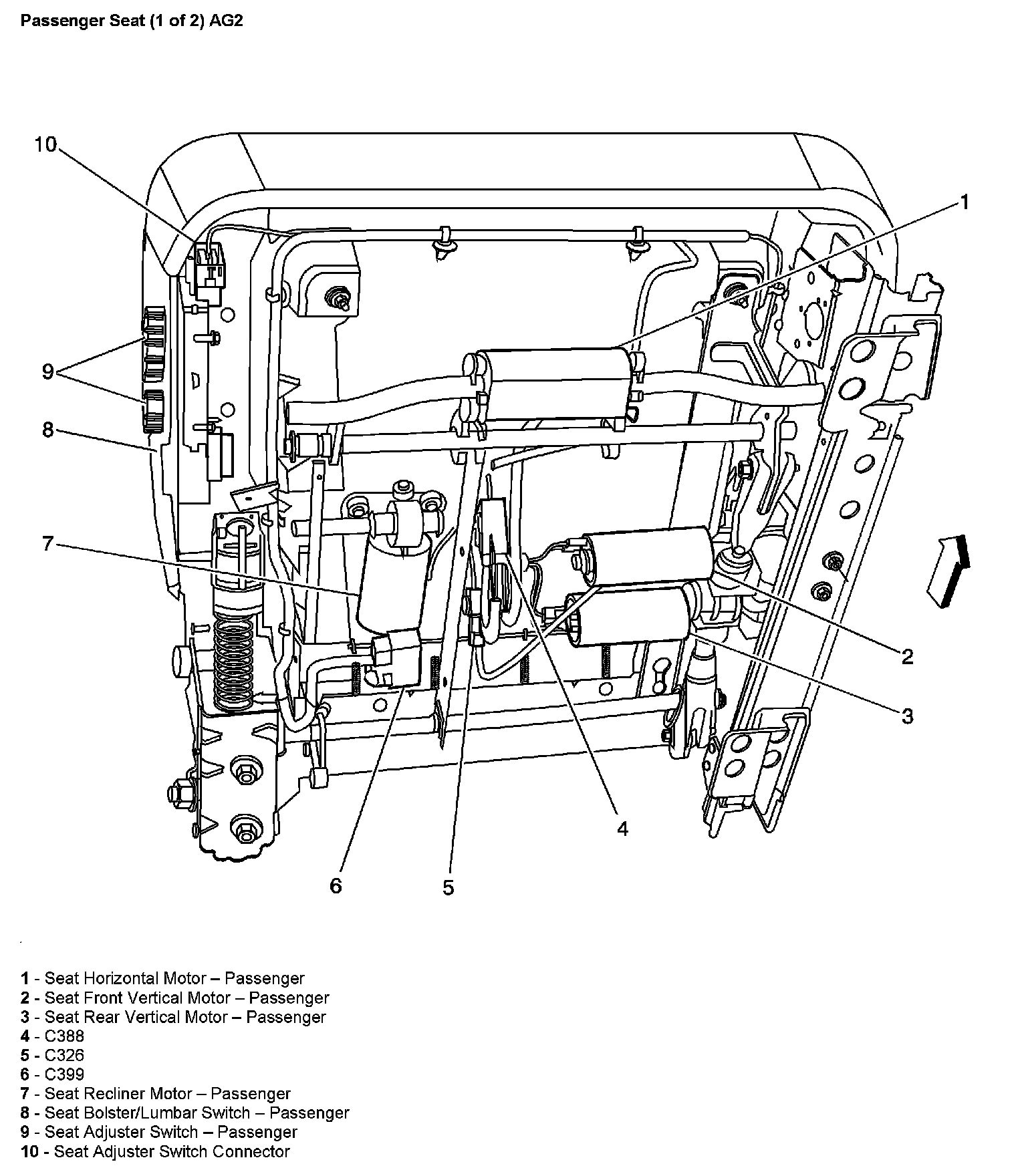

Passenger Seat (1 Of 2) (With RPO Code AG2):
