Home >> Chevrolet >> 2007 >> Optra (CANADA) L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Locks >> Keyless Entry Transmitter

Keyless Entry Transmitter

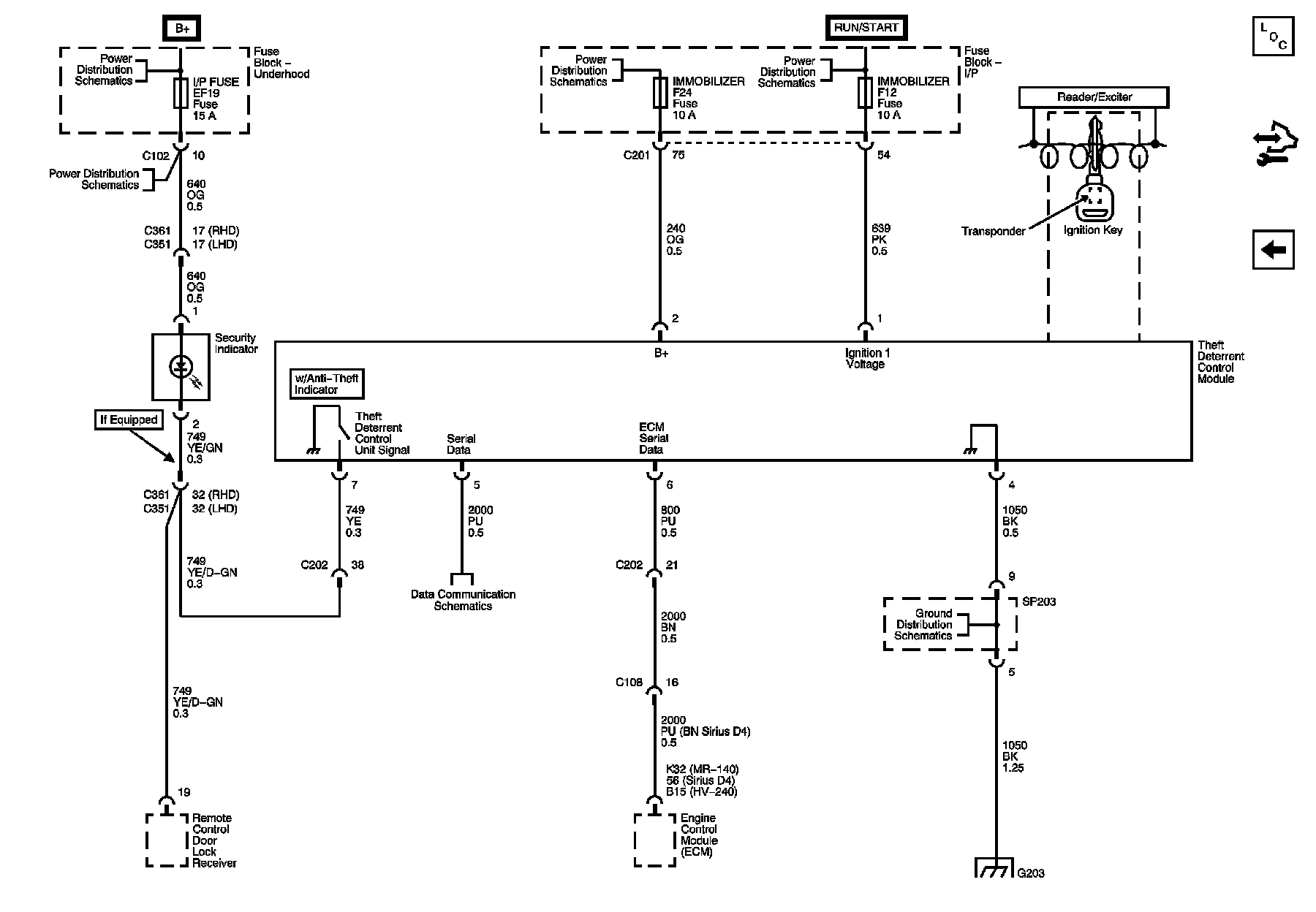

Remote Function Schematics

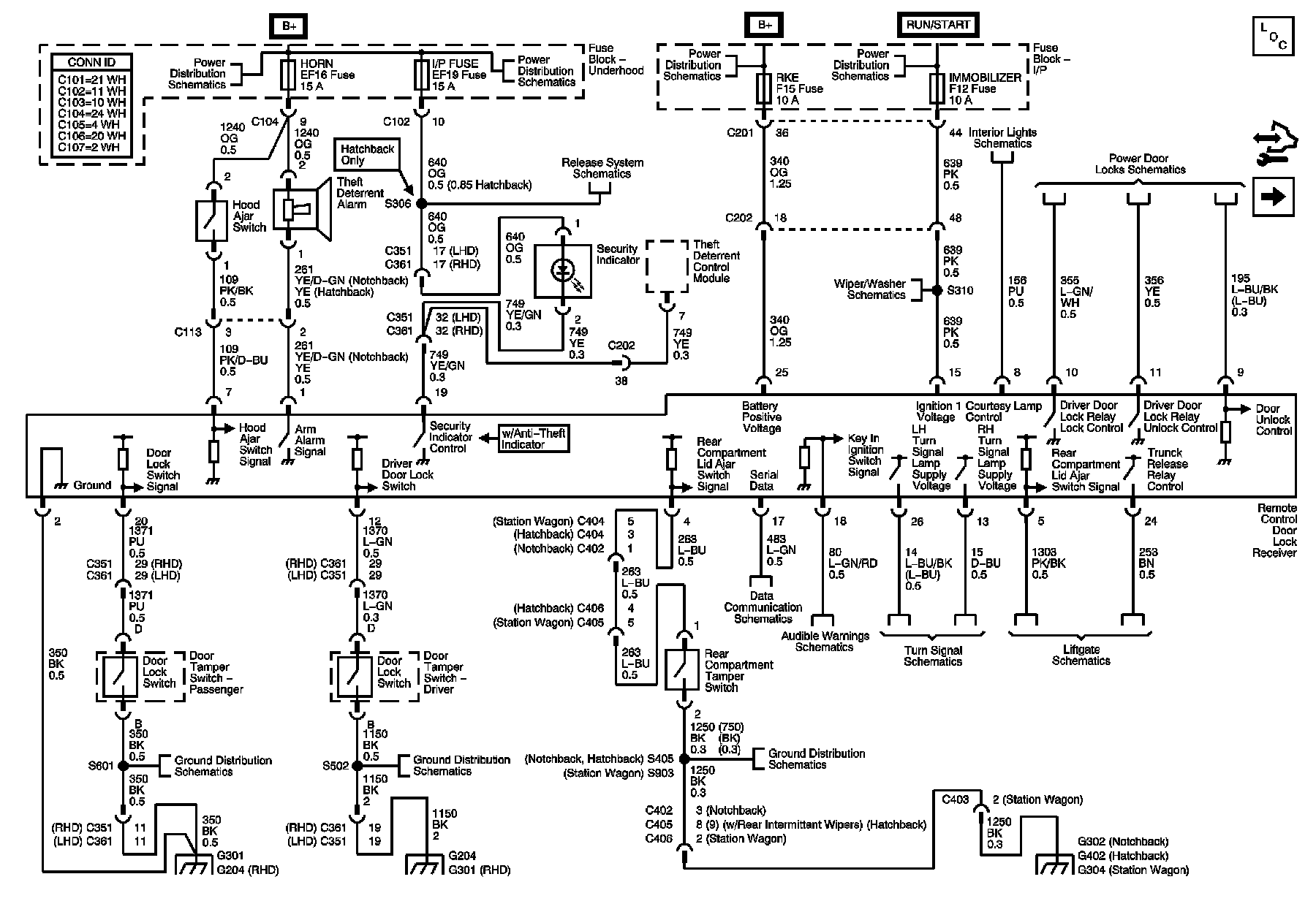

Remote Control Door LK Receiver





Theft Deterrent Control Module
