Home >> Chevrolet >> 2007 >> Malibu V6-3.9L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> 4T45-E Automatic Transaxle

4T45-E Automatic Transaxle

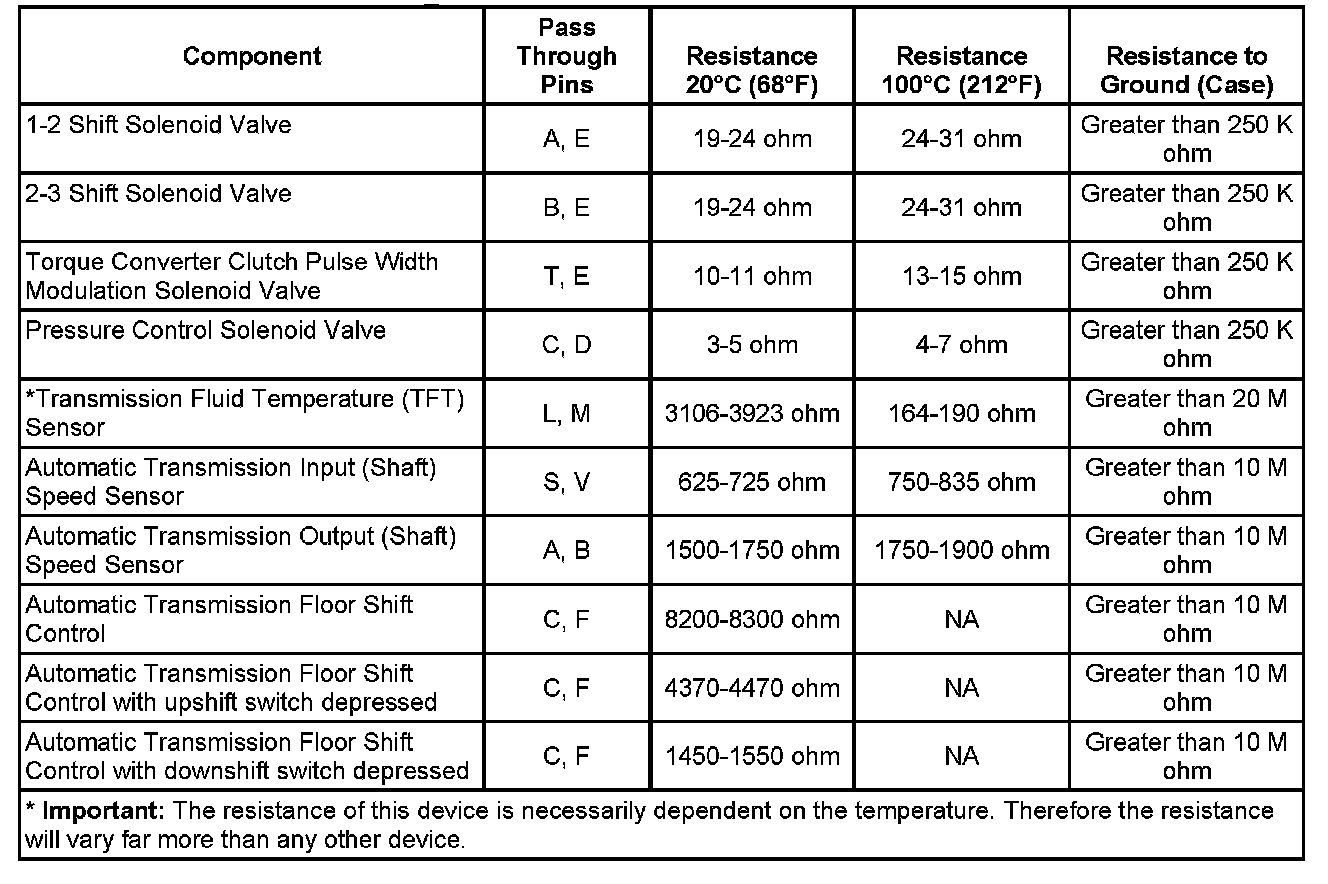

Component Resistance

Component Resistance:
