4T65-E Automatic Transaxle



Automatic Transmission Inline 20-Way Connector End View

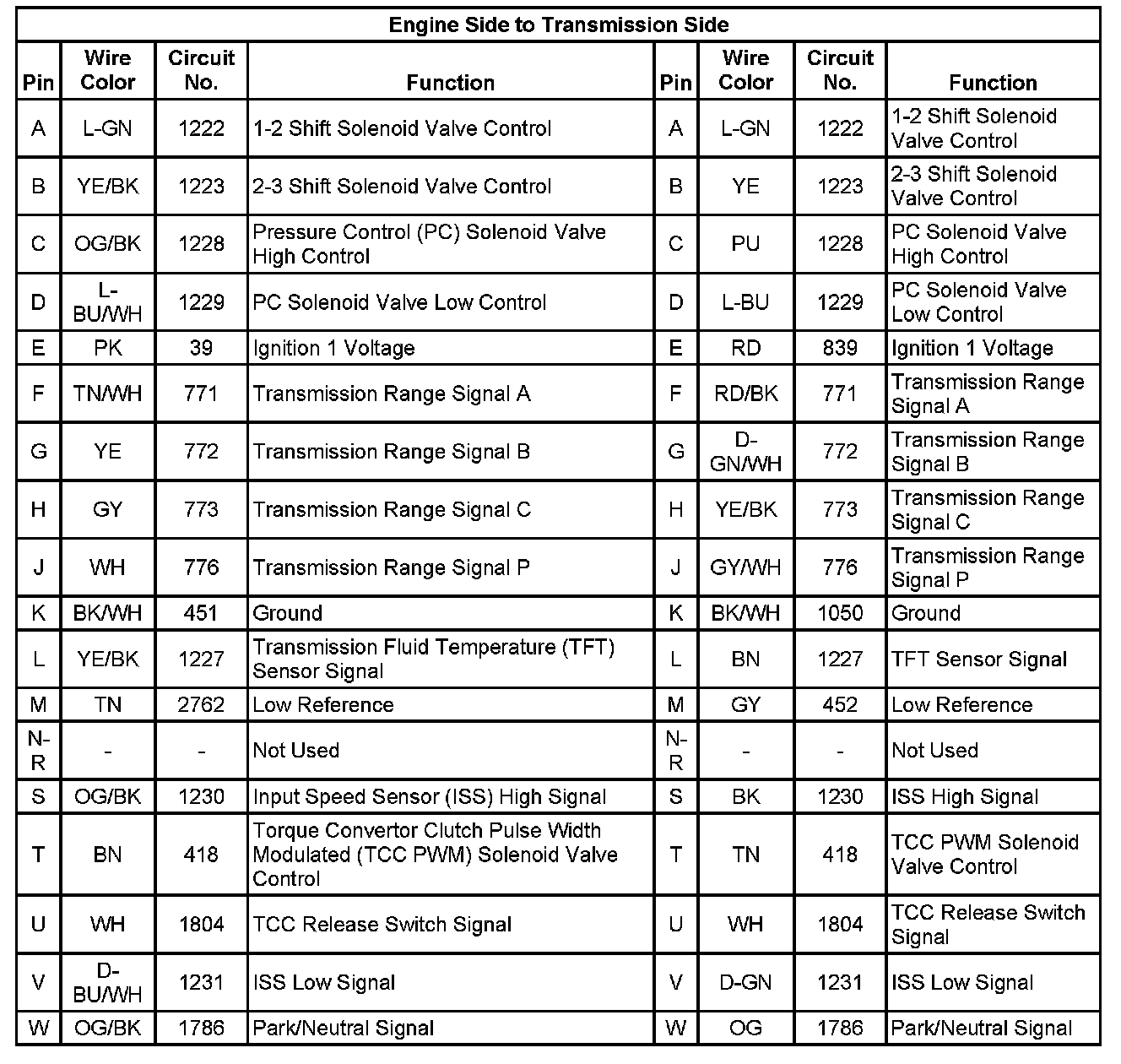

Engine Side to Transmission Side:
