Home >> Chevrolet >> 2007 >> Malibu L4-2.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Rear Fuse Block

Rear Fuse Block

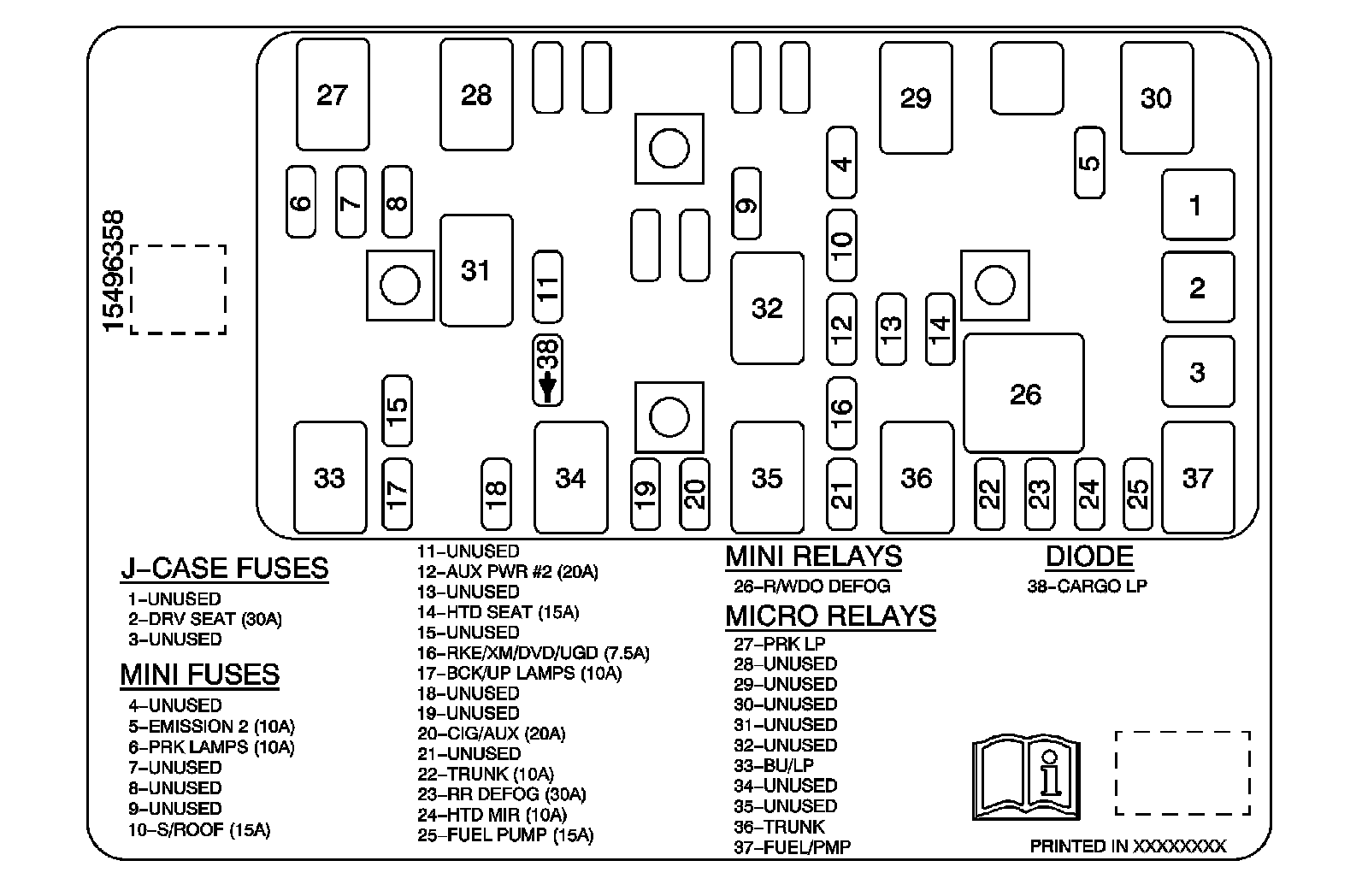

Electrical Center Identification Views

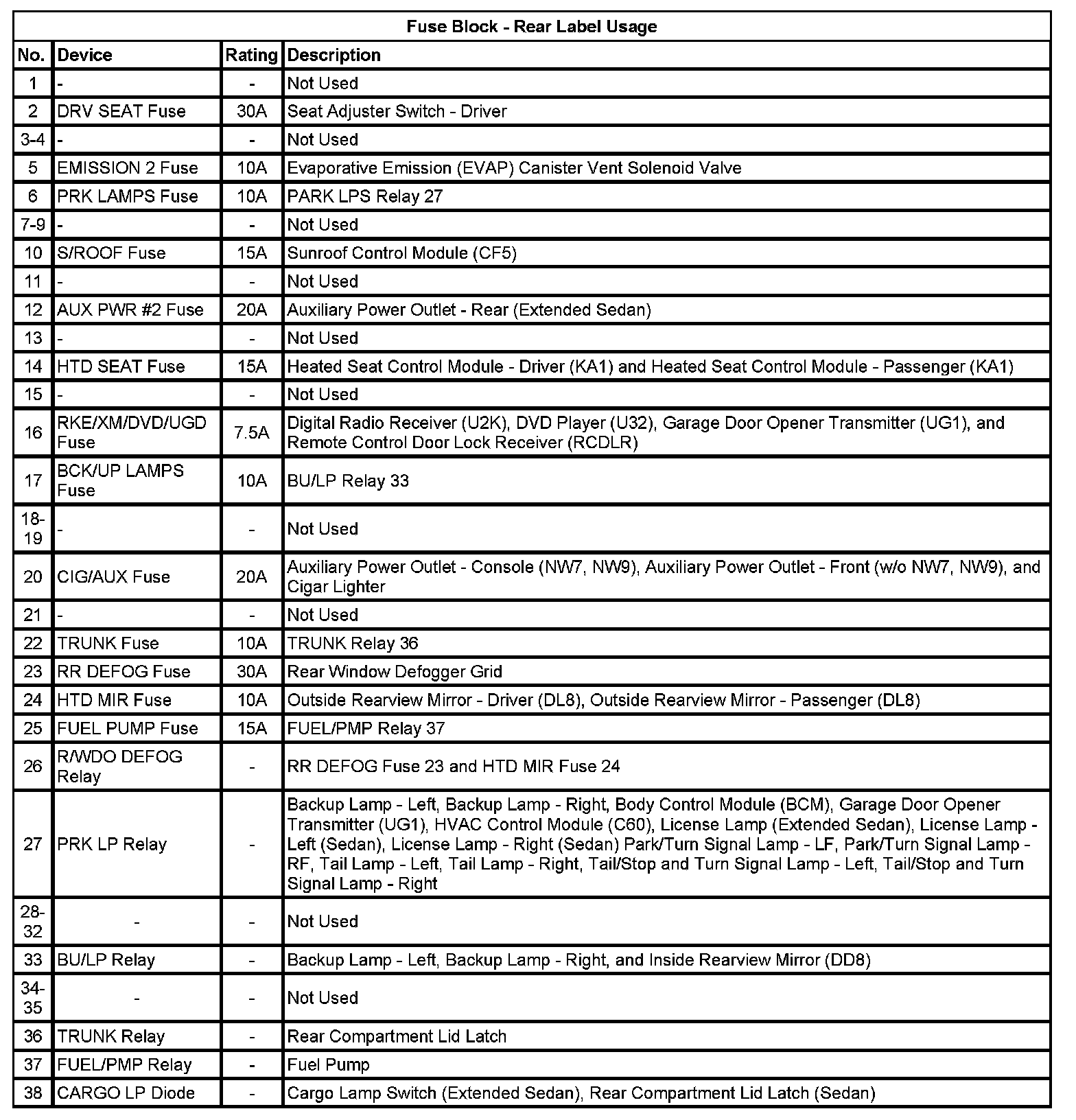

Fuse Block - Rear Label
