Battery Tray: Service and Repair

Battery Tray Replacement (RPO LS4)

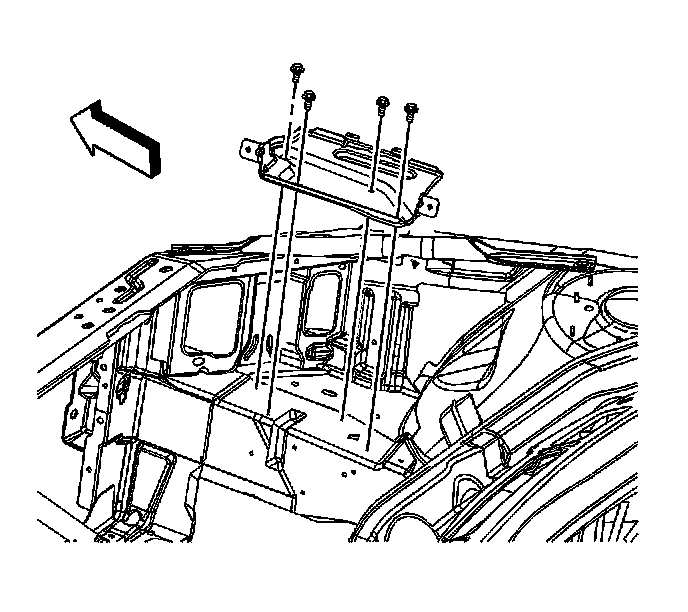

Removal Procedure




1. Remove the battery.
2. Remove the battery tray bolts.
3. Remove the battery tray.

Installation Procedure




1. Install the battery tray.

Notice: Refer to Fastener Notice.

2. Install the battery tray bolts.

Tighten the bolts to 5 N.m (44 lb in).

3. Install the battery.
