Chevrolet
>>
2007
>>
Impala V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wheel Speed Sensor
>>
Wheel Speed Sensor (WSS) - RF
Wheel Speed Sensor (WSS) - RF

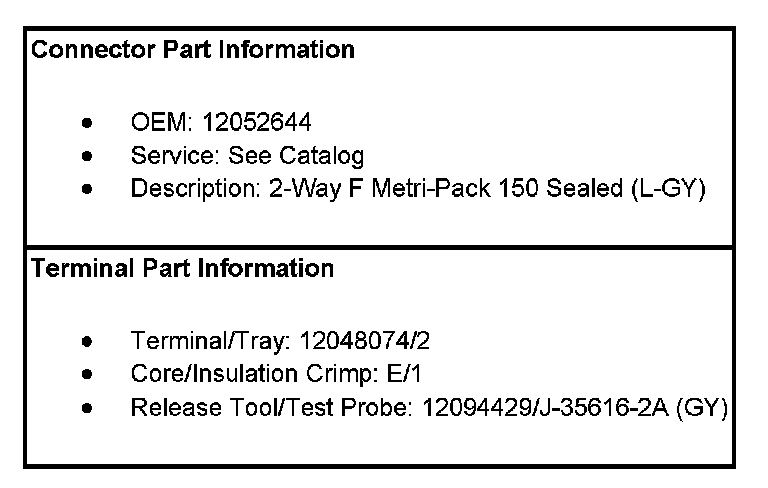

Antilock Brake System Connector End Views
Wheel Speed Sensor
(WSS) - RF
Reverse Lockout Solenoid:

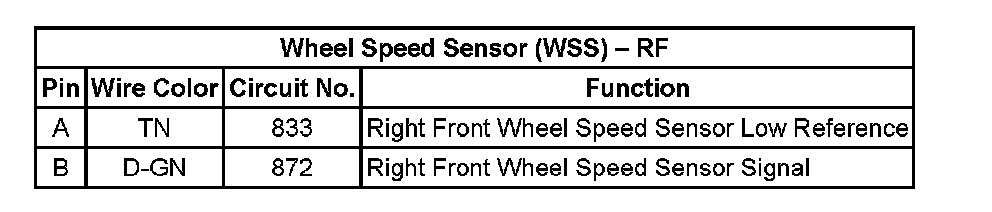

Wheel Speed Sensor (WSS) - RF:
