Remote Function Connector End Views



Remote Function Connector End Views

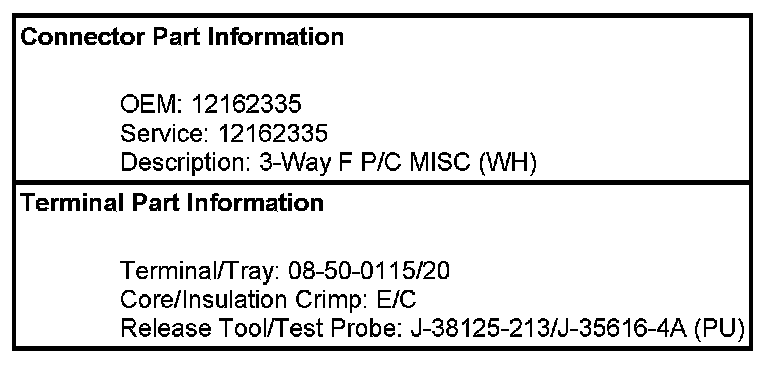

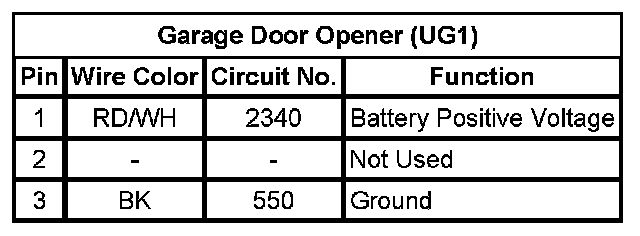

Garage Door Opener (UG1)

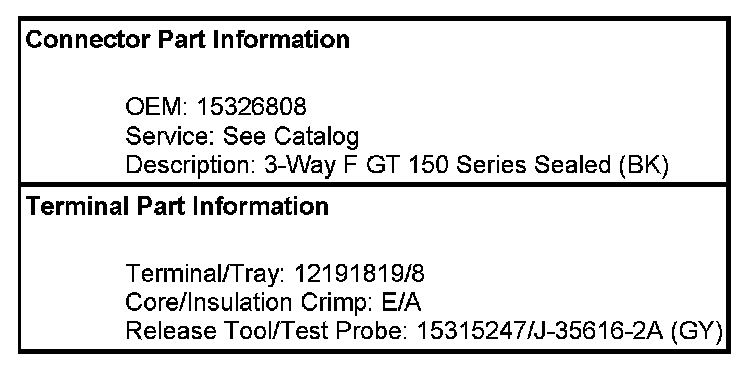

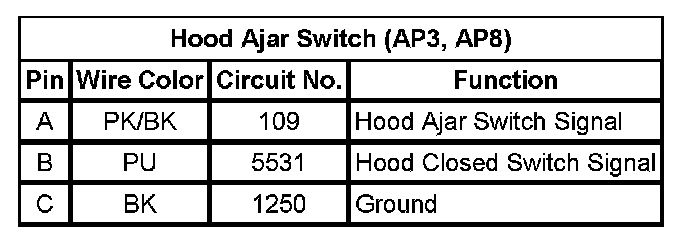

Hood Ajar Switch (AP3, AP8)














Remote Control Door Lock Receiver (RCDLR)
