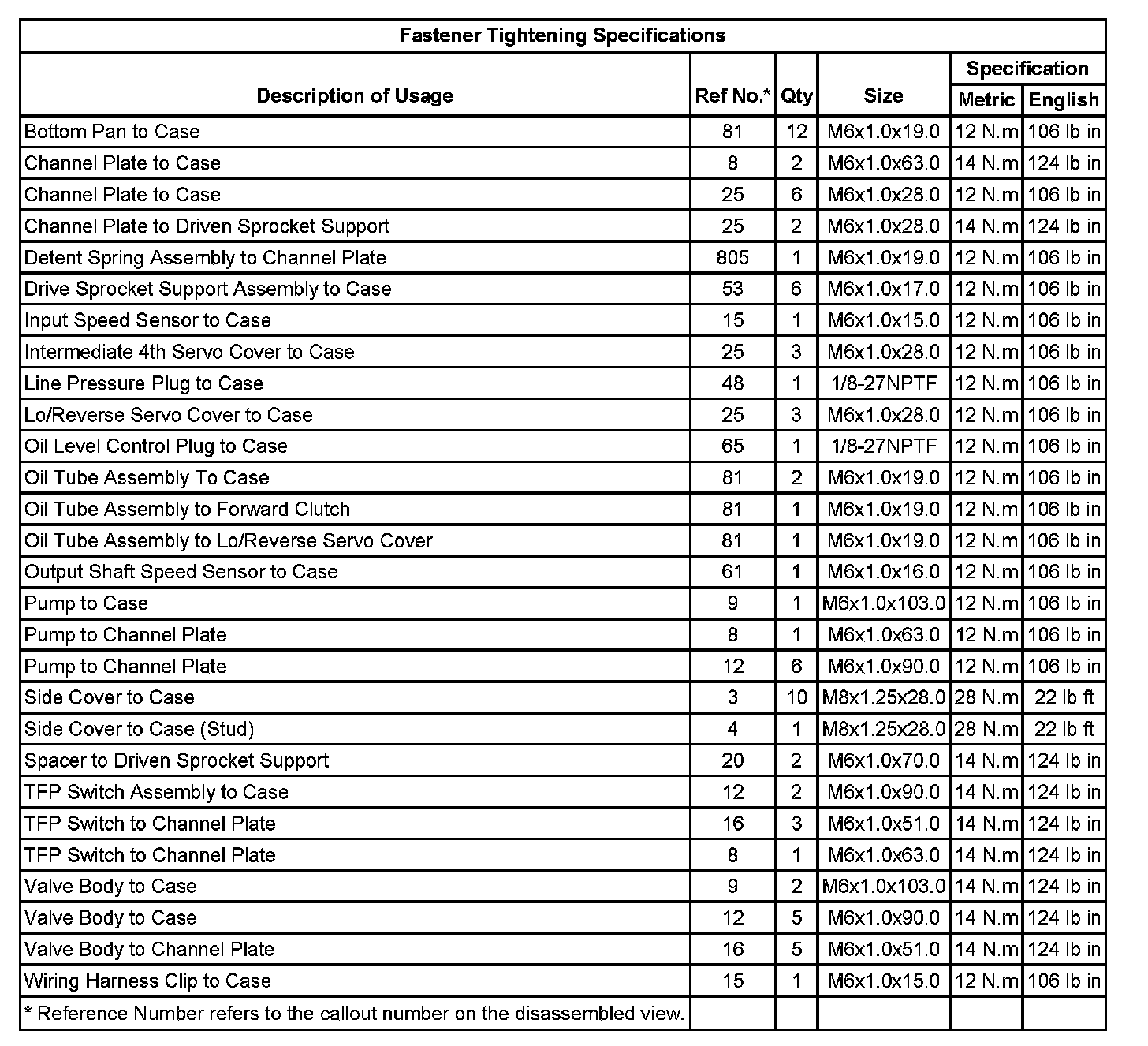

Fastener Tightening Specifications



Fastener Tightening Specifications

Fastener Tightening Specifications:






Transmission Pan
Tighten the bottom pan bolts to 12 N.m (106 lb in)
