Turn Signal Multifunction Switch Replacement

Turn Signal Multifunction Switch Replacement

Removal Procedure

1. Remove the steering column trim covers.
2. Disconnect the turn signal multifunction switch electrical connector.

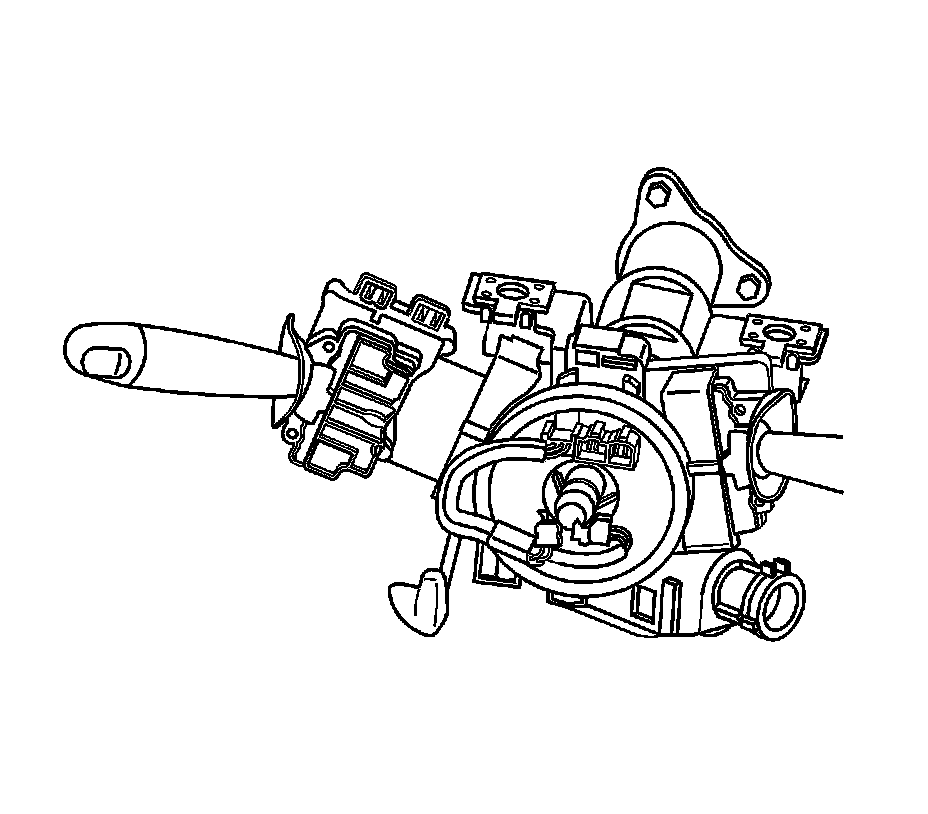

3. Depress the locking tabs and remove the turn signal multifunction switch (1).

Installation Procedure




1. Install the turn signal multifunction switch (1). Ensure the locking tabs are snapped into place.
2. Connect the turn signal multifunction switch harness connector.
3. Install the steering column trim covers.
